DA20-C1 Flight Manual

Performance

Doc # DA202-C1 April 16, 2009 Page 5 - 4

5.3.2. Cruising Performance

Maximum RPM is 2800

Example: OAT: 70º F

Pressure Altitude: 5000 ft

Desired Power setting: 60%

Result: Set RPM: 2560

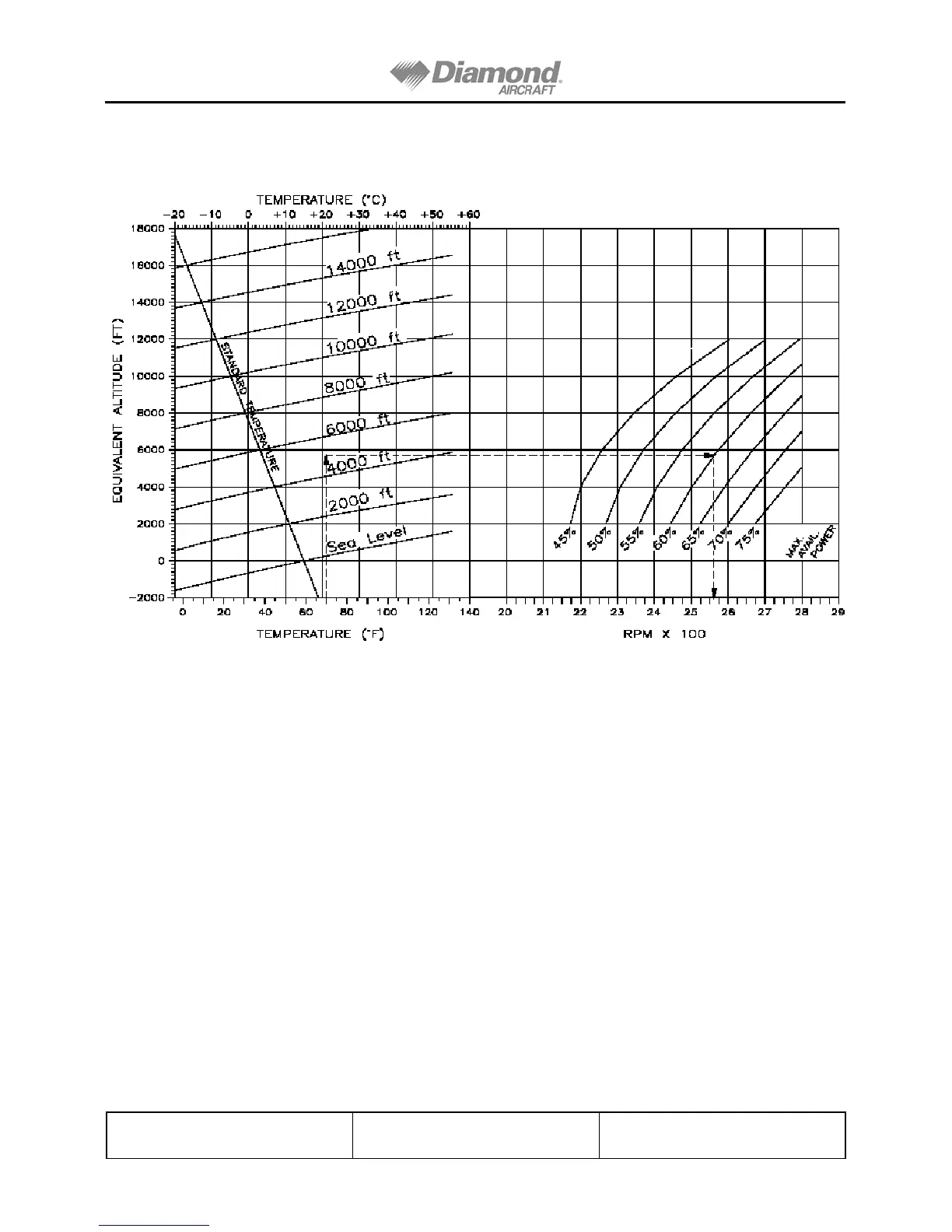

Figure 5.2. Cruising Performance

Revision 24 DOT Approved
