7.9.5. Lubricating
CAUTION
NEVER OPERATE THE ENGINE WITH THE OIL FILLER CAP
REMOVED. OBSERVE NORMAL PROCEDURES AND
LIMITATIONS WHILE RUNNING ENGINE.
The engine has high pressure wet sump lubrication. The oil is pumped by a mechanical, engine
driven pump. An oil dipstick indicates the level of oil in the tank. The dipstick is marked for US
quarts.
With the engine stopped, check the oil level on the dipstick. The oil level must be between the 6
US quarts and 4 US quart level as indicated by the markings on the dip stick. See Figure 7.5,
Oil System Schematic Diagram.

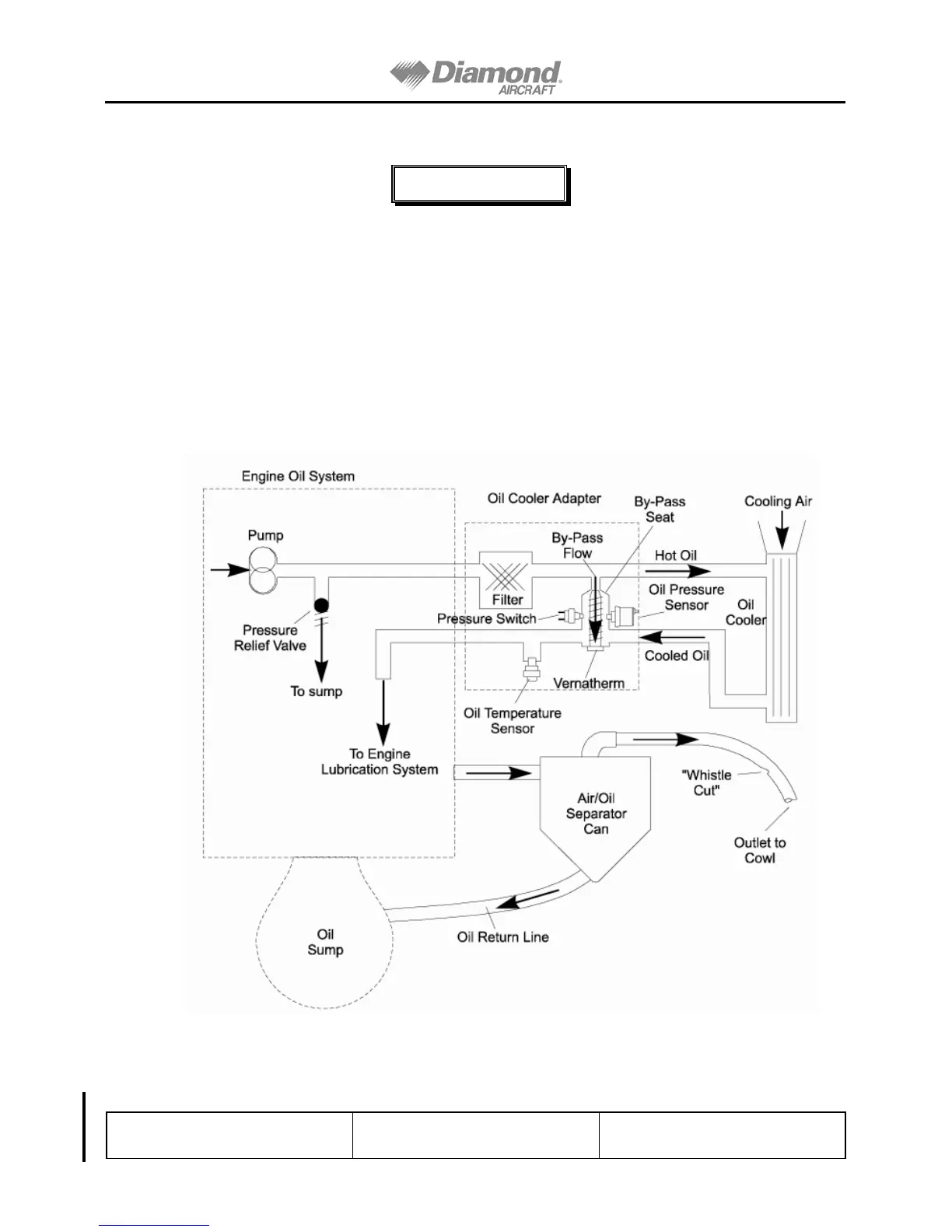

Figure 7.5. Oil System Schematic Diagram
