DA20-C1 Flight Manual

Supplement 4

Doc # DA202-C1 April 16, 2009 Page S4 - 11

SENSENICH PROPELLER W69EK7-63, W69EK7-63G and W69EK-63

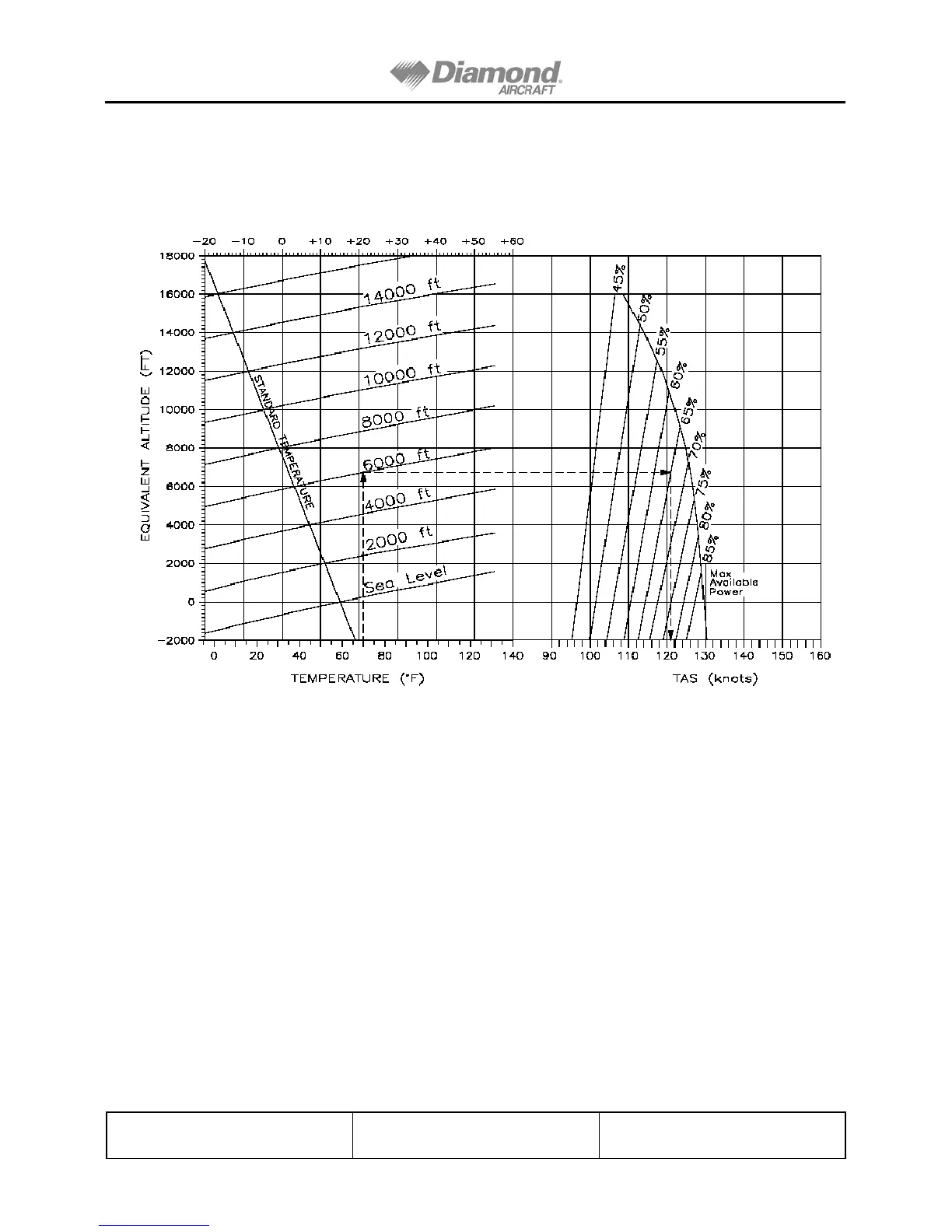

Diagram for true airspeed (TAS) calculation at selected power level.

Example: Pressure altitude: 6000 ft.

Temperature: 70º F

Power setting: 65%

Result: True airspeed (TAS): 121kts

Figure 5.8. Cruising Speed (True Airspeed)
