7.11.8. Internal Lighting
The internal lighting of the DA20-C1 is provided by a lighting module located aft of the Pilot’s
head and on the centerline of the aircraft. Included in this module are two panel illumination
lights and one map light. The switches for the lights are located on the instrument panel. There
is a dimming control located on the left side of the instrument panel for adjusting the intensity of
the lighting. There is a toggle switch located beside the dimming control that controls the
intensity of the Wing Flap and Trim Annunciator. See Figure 7.8.
Revision 25

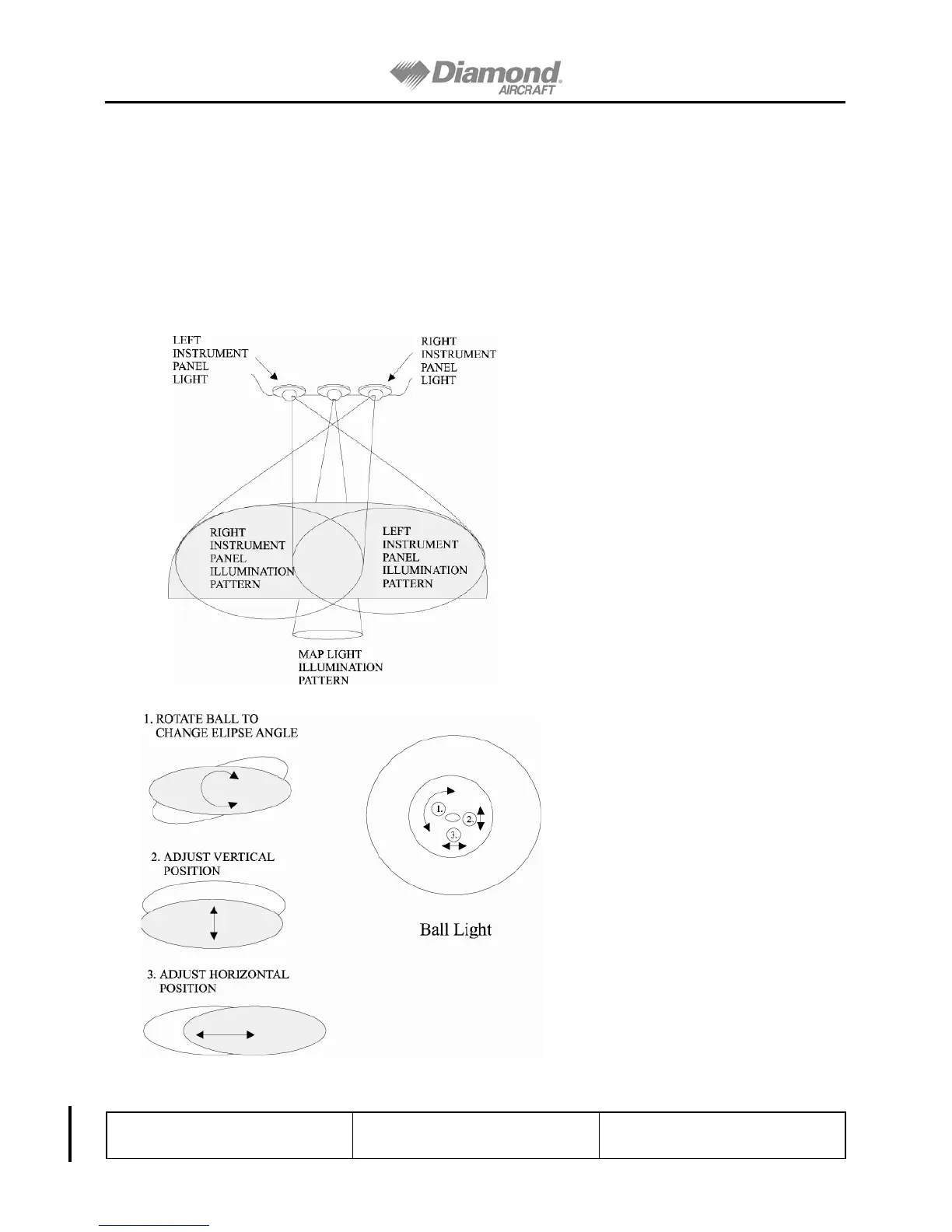

Figure 7.8. Illumination Pattern and Adjustment
Care must be taken when
adjusting the lights to maintain
proper illumination. The
Illumination Pattern and
Adjustment shows how the
lights are aimed in order to
provide proper panel
illumination.
Aircraft equipped with
supplemental lighting (MOD 32)
have a Light Dimmer Module
and a Glare Shield mounted
Flood Light. Control of the
Dimmer for backlit instruments
is through the Instrument
lighting potentiometer. Control
of the flood light is through a
potentiometer marked FLOOD.
