DA20-C1 Flight Manual
Weight and Balance
Doc # DA202-C1 April 16, 2009 Page 6 - 4
Revision 24 DOT Approved
Legend:
X1 Arm - Datum to center line nose wheel
X2 Arm - Datum to C/L main wheels (LH and RH)
G1 Net weight - Nose wheel
G2 Net weight - Main wheels (LH and RH)
G Empty weight
XCG Arm - Empty - weight (Calculated)

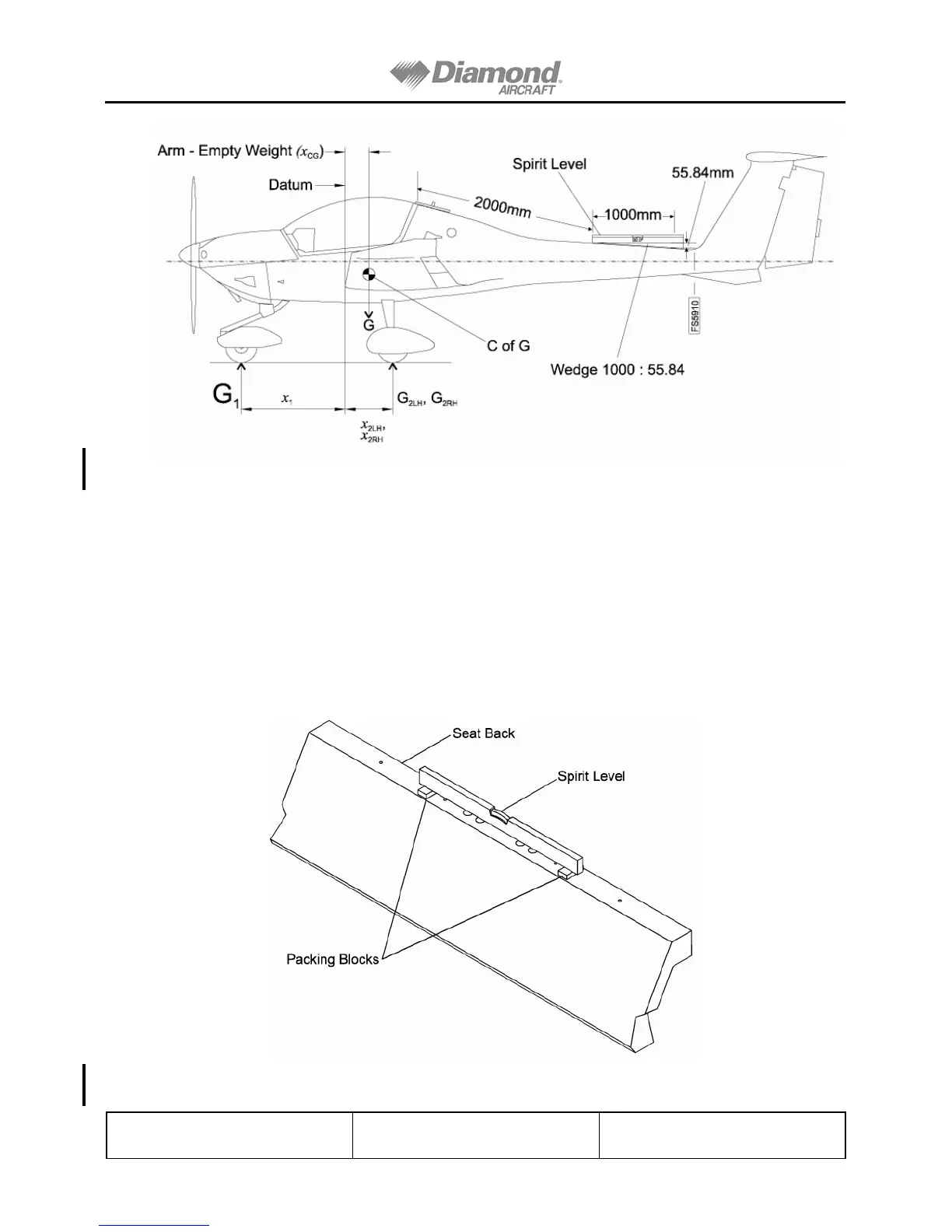

Figure 6.2. Lateral Leveling Diagram
Figure 6.1. Longitudinal Leveling Diagram
