Digi SM-300 Service Manual

SM-300 Service Manual
12
REMARKS:
1) Dimension is in L(ength) X W(idth) and in unit of millimeter.
2) U2 to U8 is use by U1 and CA only.
3) F1 to F8 is free format label to design own label. Please note the maximum size.

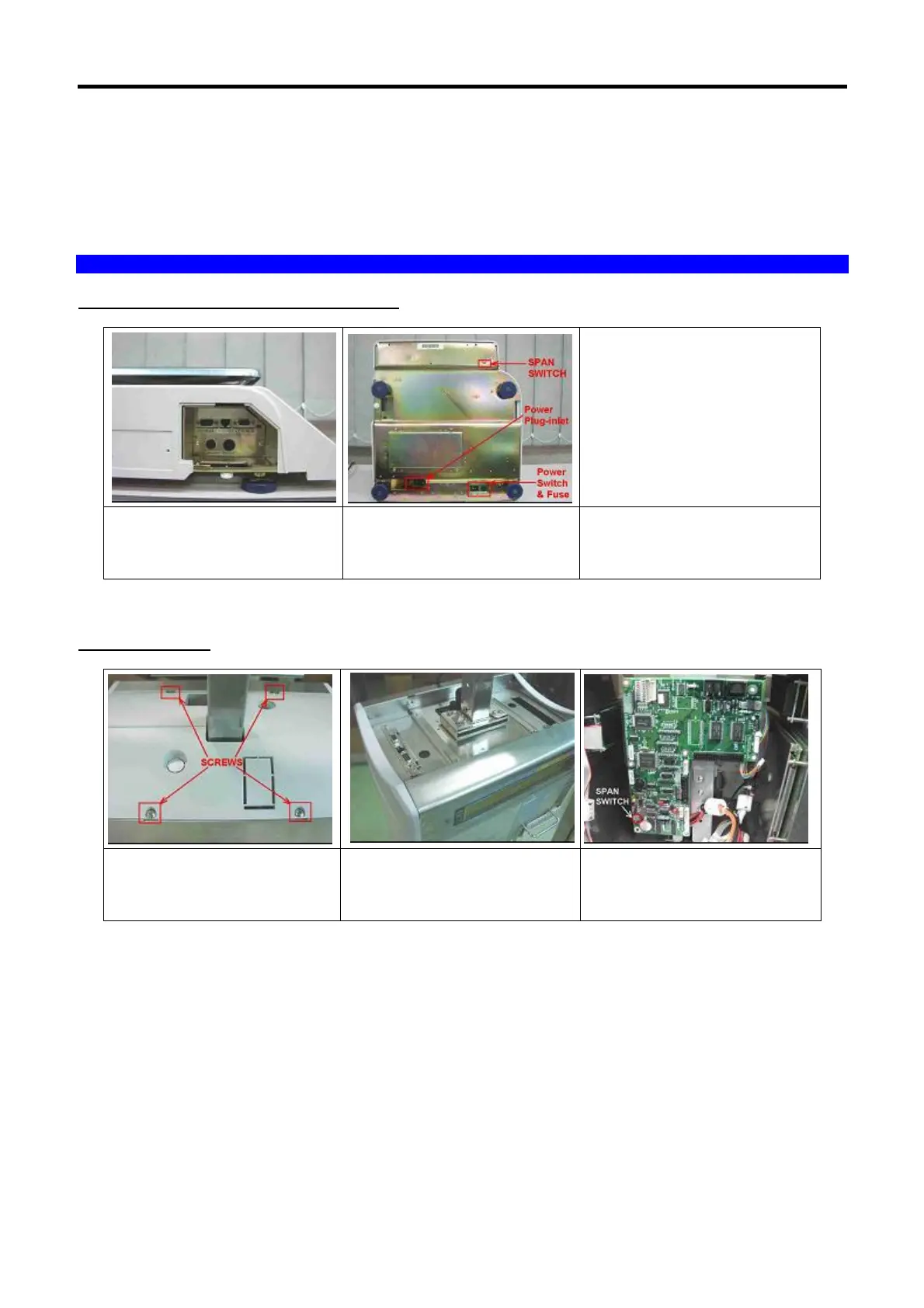

2.5 Interface Ports Location
2.5.1 For Pole, Bench, Elevated, Self-service.
2 X LCU/AUX
1 X Ethernet
1 X RS232
1 X Cash drawer
To turn the span switch on / off
by using pin.
2.5.2 For Hanging
1. Loosen 4 screws on the top
of the SM 300 Hanging Scale.
2. Remove 2 cover on top, the
interface is at the left hand side.
The location of the SPAN switch
is at the backside of the main
board, which is pointed. (SM300
Hanging)
