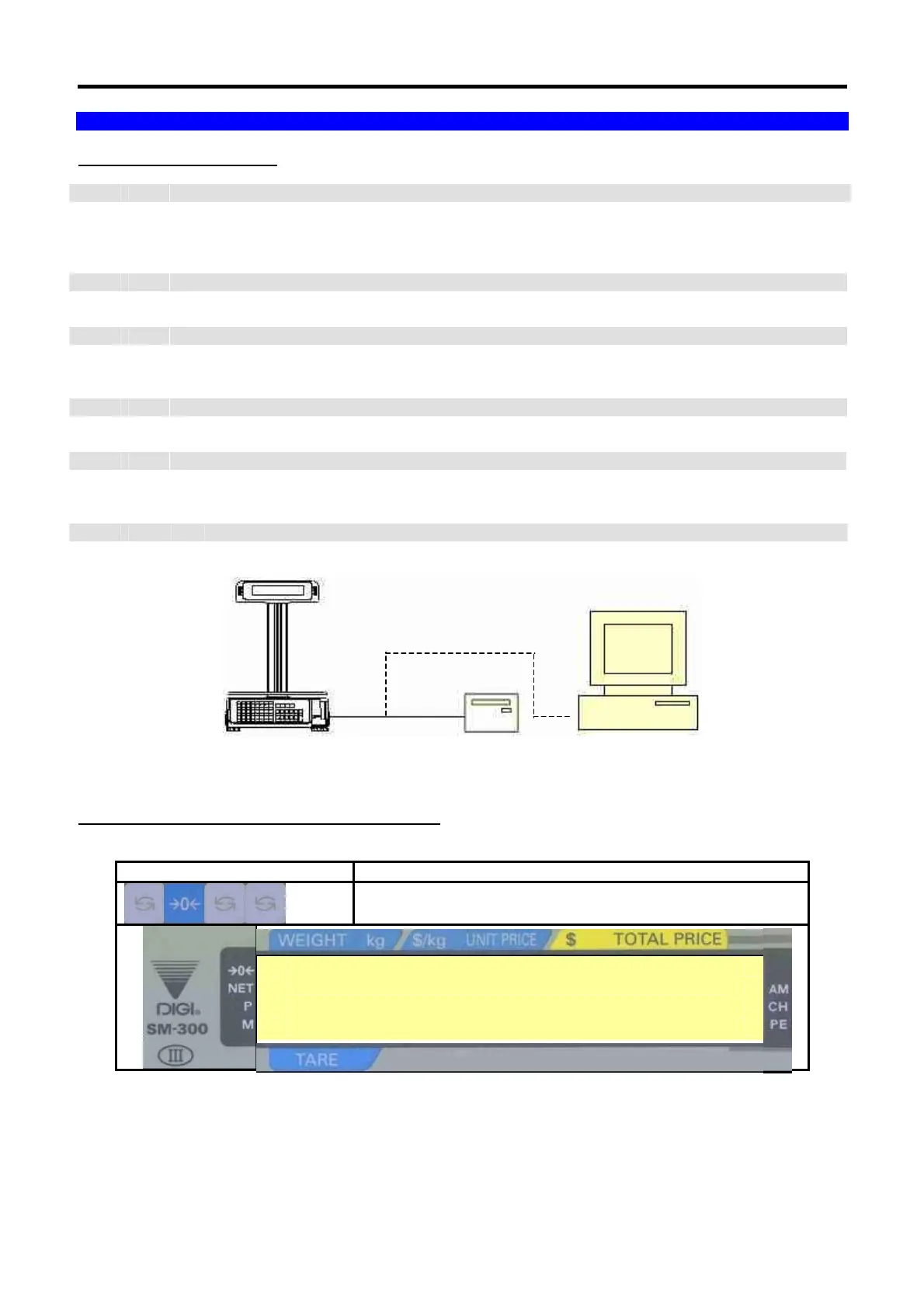

4.4 Data Backup
4.4.1 System Configuration
SPEC 51 BAUD RATES OF SIO (RS232C PORT)
0 1200 3 9600
1 2400 4 19200
2 4800 5 38400
SPEC 52 DATA LENGTH OF SIO (RS232C PORT)
0 7 bits 1 8 bits
SPEC 53 PARITY BIT OF SIO (RS232C PORT)
0 None 2 Even
1 Odd
SPEC 54 STOP BIT OF SIO (RS232C PORT)
0 1 bits 1 2 bits
SPEC 60 SIO SELECT JOB
0 No operation 2 FL-1
1 FIS 3000 3 Point & Shop
SPEC 134 HOST COMMUNICATION
0 RS-232 bits 1 RS-485
SM 300 FL-1 OR PCFL-1
4.4.2 Data Transfer Of SM 300 And FL-1 Or PCFL-1
KEY TO PRESS OPERATION
Go to Z mode.
TO CLEAR DAILY TRANS
PRESS PRINT KEY
