SM-300 Service Manual
54

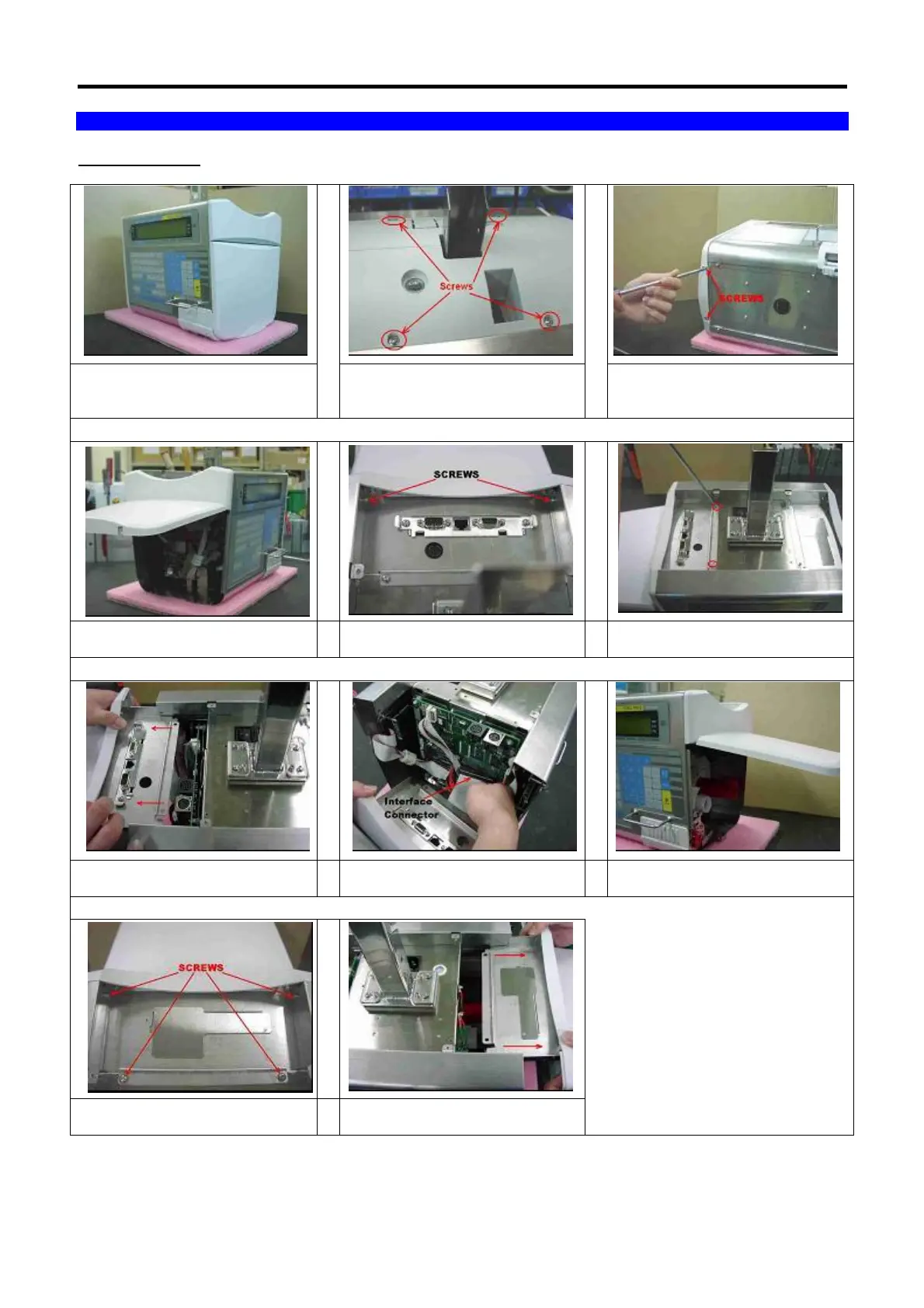

5.3 Hanging Type
5.3.1 Side Cover
1. SM300Hanging 2. Loosen 4 screws for take out
the top cover.
3. Lay down the scale and
loosen the screws, which locate
as shown above.
4. Open up the side cover (Left). 5. Loosen the screws on the top
of the scale as shown above.
6. Loosen the screws, which
shown above.
7. Pull out the side cover (Left)
from the SM300Hanging scale.
8. Disconnect the Interface
Connector from the main board.
9. Open up the side cover
(Right).
10. Loosen 4 screws on top of
the scale as shown above.
11. Pull out the side cover
(Right).
