SM-300 Service Manual
84

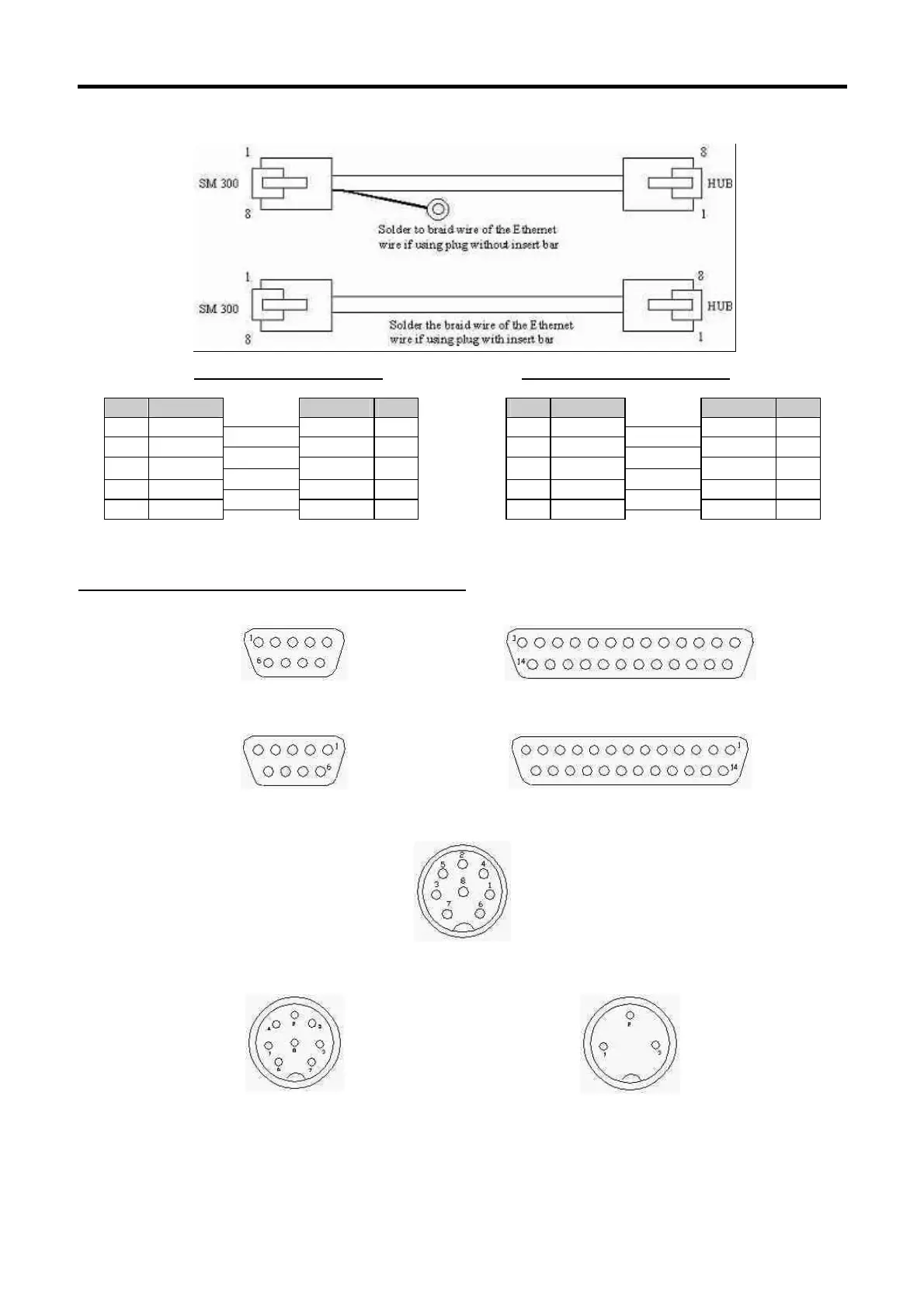

PIN CONFIGURATION
STRAIGHT CONNECTION
CROSSOVER CONNECTION
SCALE HUB SCALE / HUB SCALE / HUB
PIN SIGNAL SIGNAL PIN PIN SIGNAL SIGNAL PIN
1 TX+
TX+ 1 1 TX+
TX+ 3
2 TX-
TX- 2 2 TX-
TX- 6
3 RX+
RX+ 3 3 RX+
RX+ 1
6 RX-
RX- 6 6 RX-
RX- 2
5,7,8 N.A.
N.A. 5,7,8 5,7,8 N.A.
N.A. 5,7,8
9.3.2 RS232C AND MULTIDROP (4 LINE, RS485) WIRE
CONNECTOR
9 Pin D-Sub Connector
Female (Back View)
25 Pin D-Sub Connector
Female (Back View)
9 Pin D-Sub Connector
Male (Back View)
25 Pin D-Sub Connector
Male (Back View)
8 Pin DIN Plug
Male (Front View)
8 Pin Din Plug
Female (Front View)
3 Pin Din Plug
Female (Front View)
