SM-300 Service Manual
59

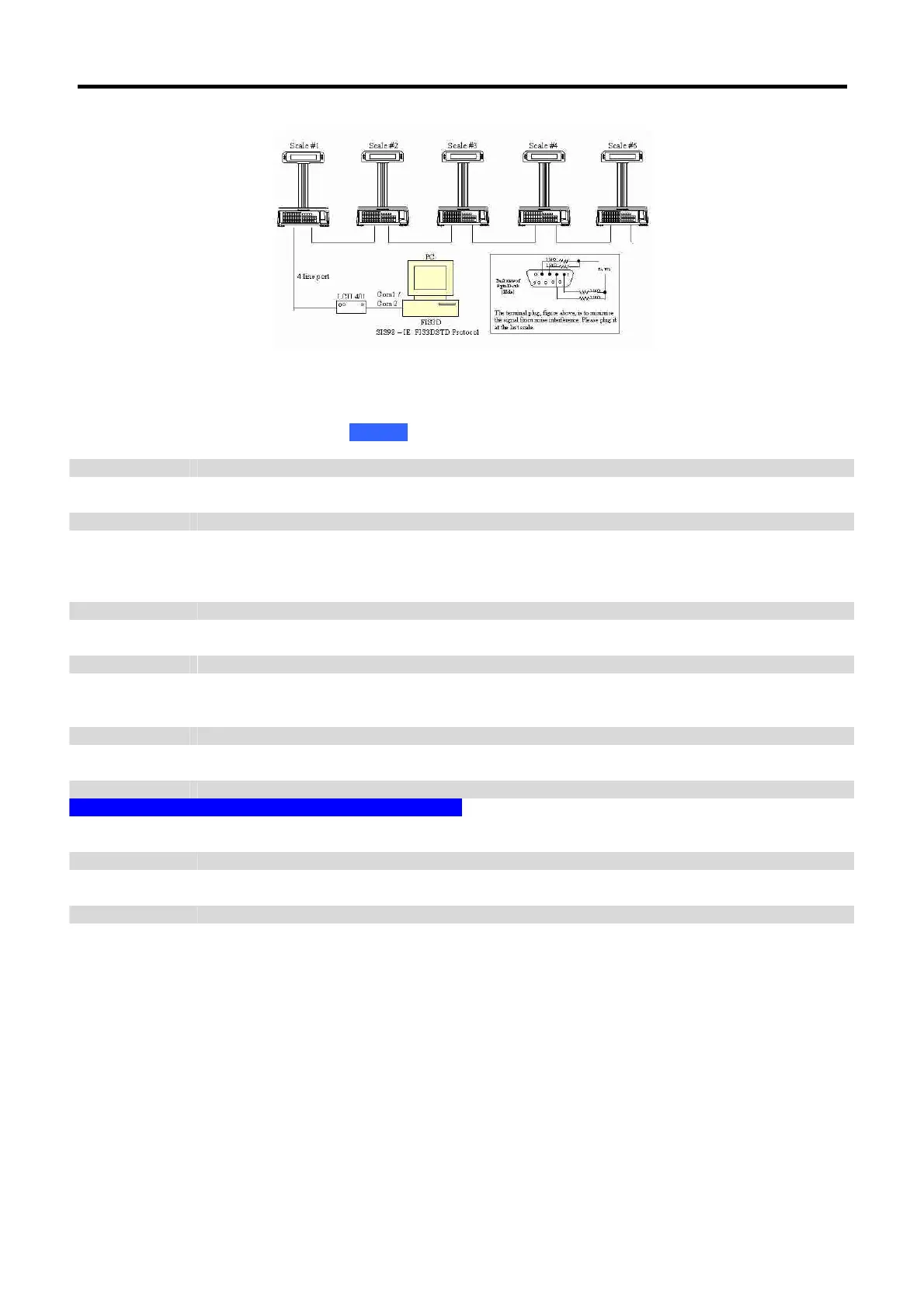

6.1.1.2 RS-485
Could connect as many scales in this method within 300m (total cable length). Have to download data to scale
individually. The LCU 401 is a signal converter, which is, converts the signal from RS232C to RS485 between
PC and scale.
SPEC setting on scale (Please use the highlight selection if any):
spec 48 setting of scale number
Please enter one number from the range of 0 to 999999
spec 51 BAUD RATES OF SIO (RS232C PORT)
0 1200 3 9600
1 2400 4 19200
2 4800 5 38400
spec 52 dATa length of SIO (RS232C PORT)
0 7 bits 3 8 bits
spec 53 parity bit of sio (RS232C PORT)
0 None 2 Even
1 Odd
spec 54 stop bit of SIO (RS232C PORT)
0 1 bit 1 2 bits
spec 60 sio select job
0 No operation 2 FL-1
1 FIS 3000 3 Point & Shop
spec 134 host communication
0 RS-232 bits 1 RS-485
spec 148 fis3000 code
0 SM 80 / 90 FIS3D 1 SM 25 FIS3D
* For using SIS98 – IE_FIS3DSTD protocol, choose SM 25 FIS3D only.
* SIS98 is data management application software.
