SM-300 Service Manual
77

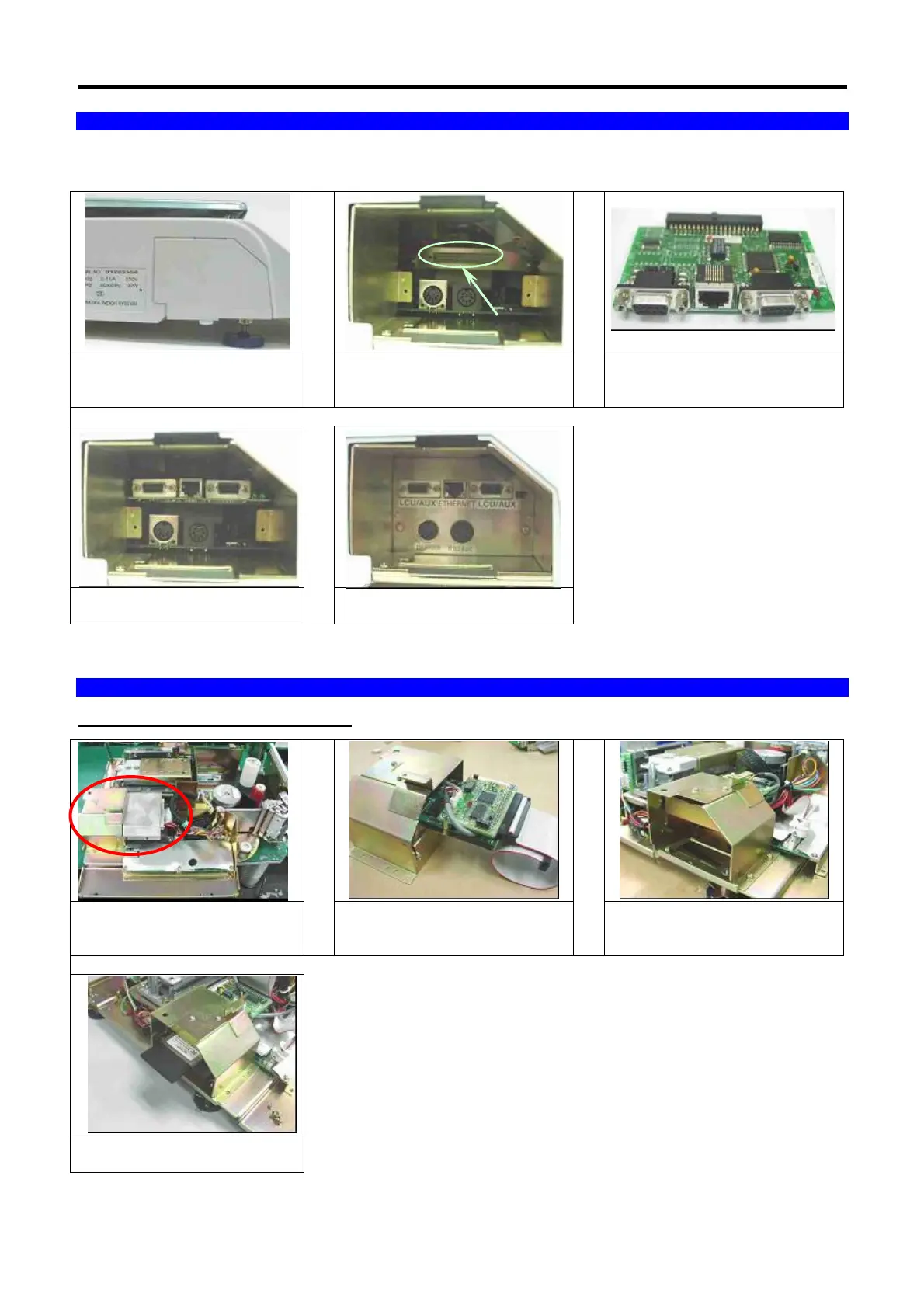

8.2 Interface Add On
Some option of the SM 300 Pole or Bench type got no interface (Ethernet and RS485) when customers place
their order. This section is about how to install the interface board.
1. Open the interface cover
2. Unscrew 2 screws on the
plate.
3.Take out the plate.
4.There is a slot for the interface
board
5. This is the Interface board.
6. Insert the Interface Board
into the slot.
7. Put the plate back and screw.
8.3 RF Kit Interface Add On
8.3.1 All Models Except Hanging Type
1. Open top cover, loosen 3
screws and disconnect flat
cable for Interface Assembly.
2. Connect flat cable to RF Kit
Interface and mount RF Kit to
scale using same screws.
3. Connect wire back on main
board and then cover back top
cover.
4. Insert the PCMCIA card
upside down.
Note: After install the RF Interface, please refer Chapter 6.3 Wireless Configuration For Model SM 300.
