Digi SM-300 Service Manual

SM-300 Service Manual
14

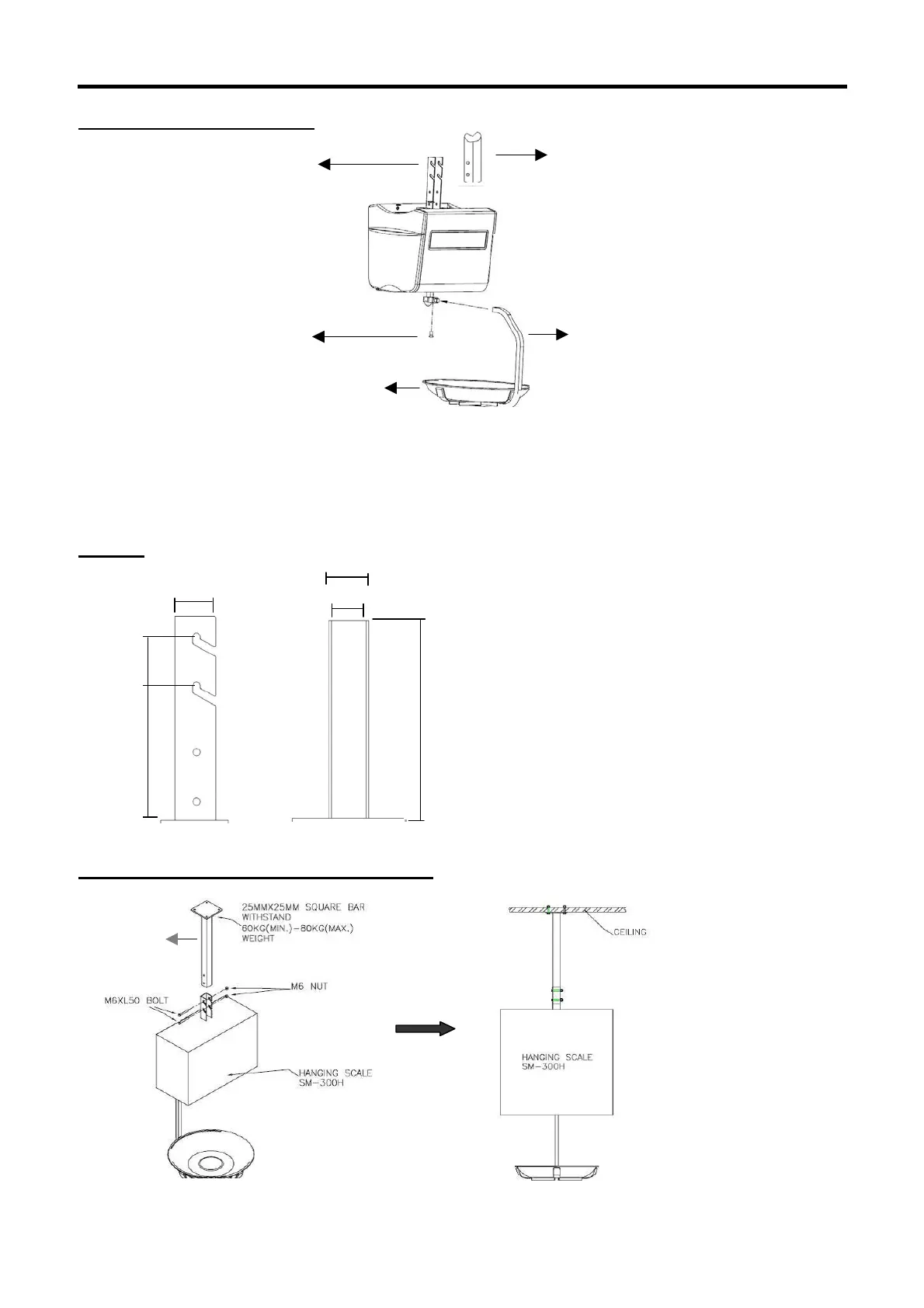

3.1.3 Hanging Type Scale Set Up
SM 300H is provided with Hook AA. This is to facilitate hanging support to a Hook Holder (To be customized at
customer’s side). Please refer to diagrams at the next page for the dimension of Hook AA and the suggested
Hook Holder.
Hook AA
Hook Holder (Suggested design and dimension)
A
xis AE
(41012401300502)
Hook Holder
Hook AA
(44013050200102)
PAN AC (DI 350mm)
(44010406500300)
WELASSY AD (Plate Supt)
(41012450200404)
31.8
109
40
30 (Inner dimension)
33.6 (Outer dimension)
168
Hook Holder
