PE
: Lights when label or receipt paper ends.
8.
R
: Lights when REGISTRATION Mode is selected.
9.
X
: Lights when CHECK Mode is selected.
10.
S
: Light when PROGRAM Mode is selected.
11.
Z
: Lights when TOTAL Mode is selected.
12.
A
: Lights when Sales Data is in Memory for CLERK 9995.
13.
B
: Lights when Sales Data is in Memory for CLERK 9996.
14.
C
: Lights when Sales Data is in Memory for CLERK 9997.
15.
D
: Lights when Sales Data is in Memory for CLERK 9998.

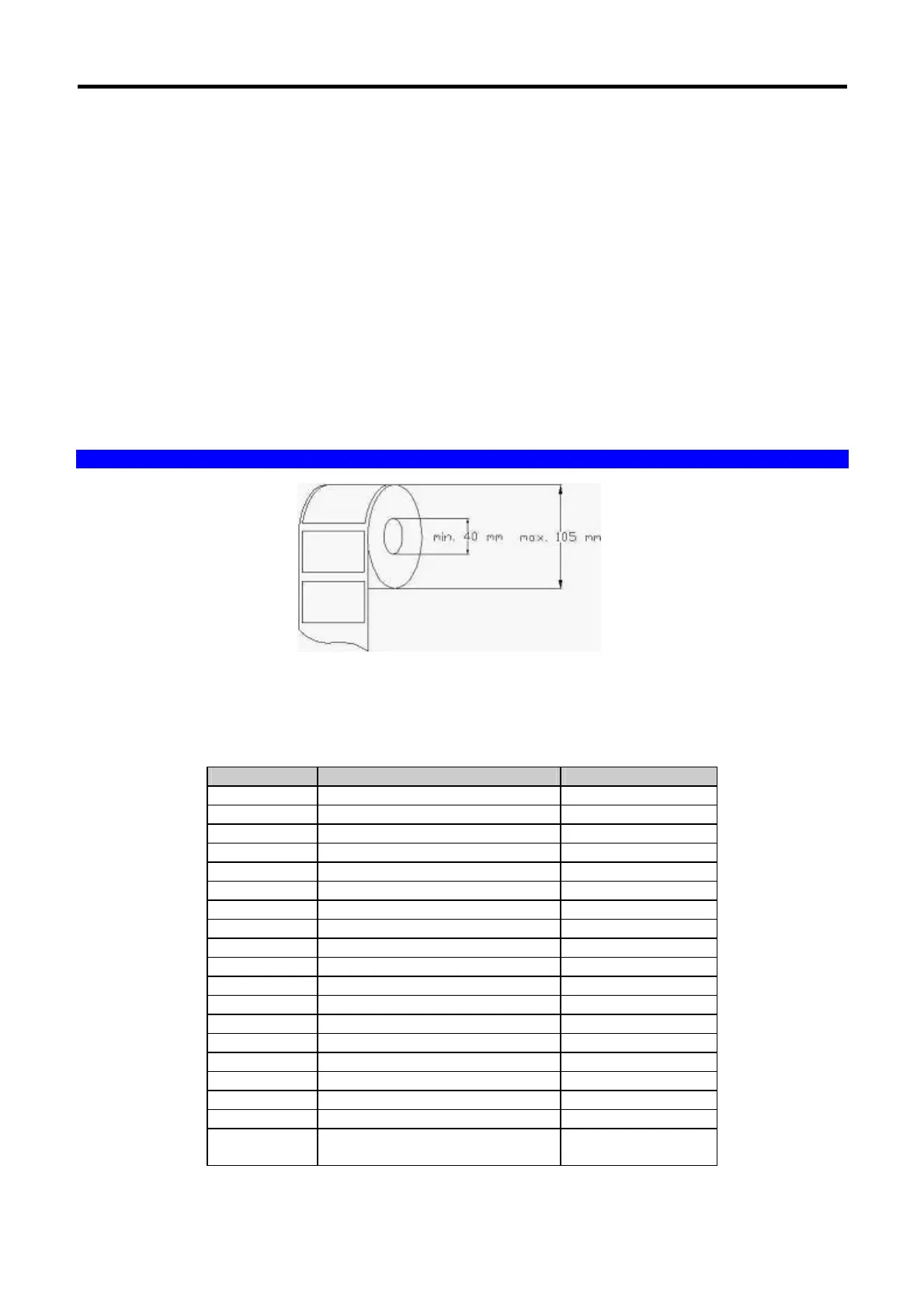

2.4 Label Type
Note: Labels must be winding outwards (on top of the backing paper) and not inwards (under the backing
paper) within the core (see diagram above).
If labels are wound wrongly, printing problem may result. We do not recommend the use of varnish labels.
The table shown below is the standard label size of SM 300:
Label Type Dimension Pcs / Roll
T1 28 X 60 1400
T2 31 X 60 1300
T3 34 X 60 1200
T4 / T10 40 X 60 1000
T5 / T11 43 X 60 960
T6 46 X 60 900
T7 / T12 49 X 60 840
T8 55 X 60 750
T9 37 X 60 1100
U1 40 X 62 650
U2 120 X 40 350
U3 43 X 60 950
U4 / U7 55 X 60 750
U5 / U8 95 X 60 440
U6 120 X 60 350
S 28 X 60 1400
A / B 46 X 40 900
C 62.5 X 40 670
F1 - F8
(Free format)
Standard: 120(max) X 60(max)
U1 and CA: 240(max) X 60(max)
