SM-300 Service Manual
57

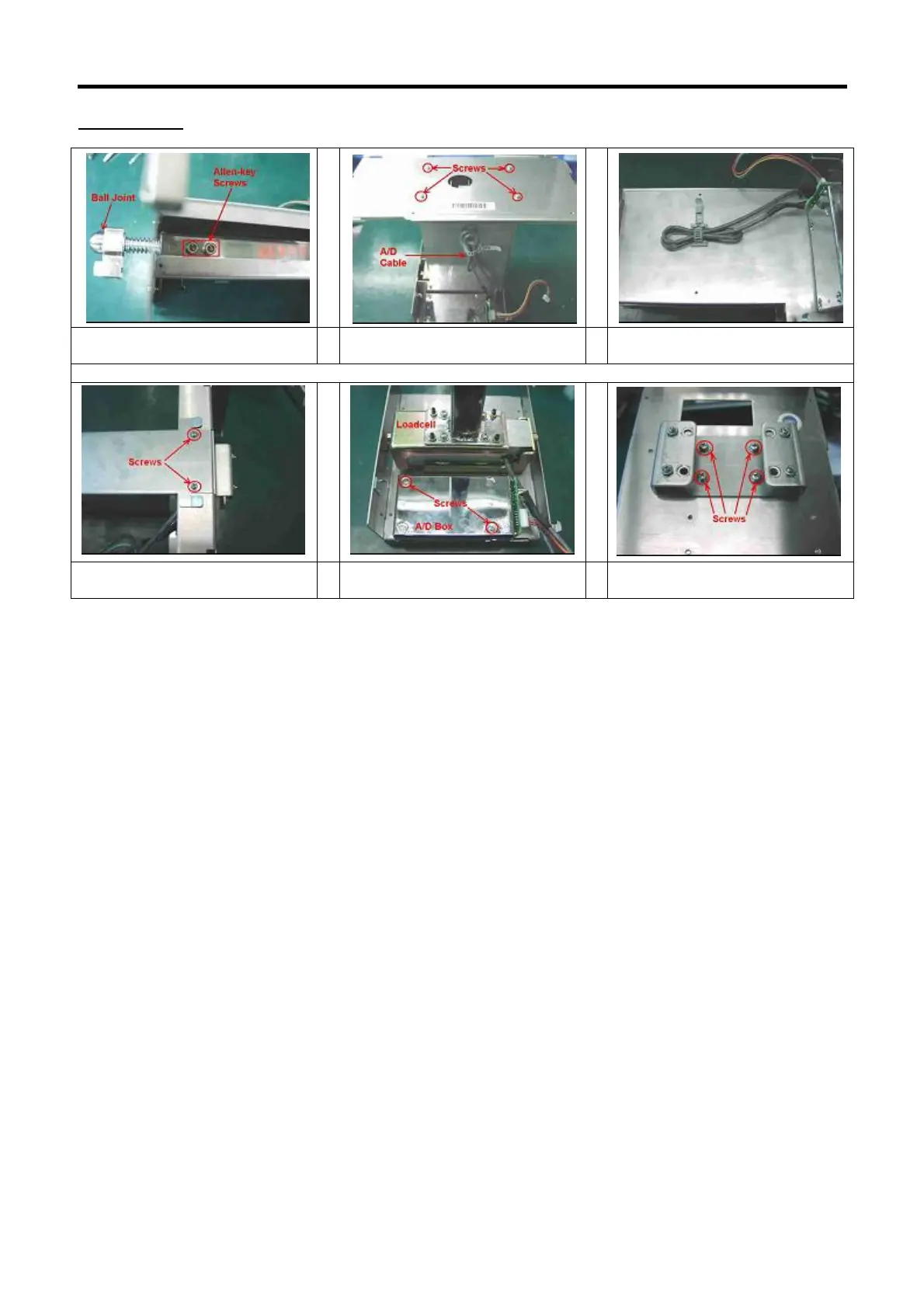

5.3.5 Loadcell
1. Loosen 2 Allen-key screws for
take out the Ball Joint.
2. Loosen 4 screws at the bottom
side then remove the Cover.
3. Release the cable, which tie
up as above.
4. Loosen 2 screws.
5. Loosen 2 screws, which
tightens on the A/D Box.
6. Loosen 4 screws as above for
Loadcell.
61
63
Table of Contents
5
i) Notice
6
ii) Safety Information
7
1. GENERAL
8
1.1 Model Specification
8
8
1.2 Operating Specification
9
1.3 Type of Interface
9
9
1.4 Main Components
9
2. OVERVIEW
10
2.1 Dimensions
10
2.2 Key Sheet Layout
12
2.3 Panel Layout
14
2.4 Label Type
16
2.5 Interface Ports Location
17
2.5.1 For Pole, Bench, Elevated, Self-service.
17
2.5.2 For Hanging
17
3. SET UP
18
3.1 Scale Assembly
18
3.1.1 Set up
18
3.1.1 Level Adjustment
18
3.1.3 Hanging Type Scale Set Up
19
3.2 Software Setting
20
3.2.1 Memory Initialization
20
3.2.1.1 Default Country Specification 1
20
3.2.1.2 Default Country Specification 2
23
3.2.1.3 Country List
25
Country Code
25
3.2.2 Span Adjustment
26
3.2.3 Specification Setting
28
3.2.3.1 Customer Specification (Re-zero 141)
28
3.2.3.2 Weight And Measurement Specification (Re-zero 142)
30
3.2.3.3 Scale Setting
32
4. MAINTENANCE
33
4.1 Diagnostic
33
4.1.1 Changing Mode
33
4.1.2 RAM & Communication Port Testing
35
4.1.2.1 RAM Test
35
4.1.2.2 SIO Loop Back Test
36
4.1.2.3 RS-485 Loop Back Test
37
4.1.2.4 Ethernet Test
37
4.1.2.5 ROM Checksum Test
38
4.1.2.6 Auto Generate PLU
38
4.1.3 Internal Count
39
4.1.4 Span Switch Status
40
4.1.5 Thermal Head Usage
41
4.2 Adjustment
42
4.2.1 Location Of Label Gap Sensor And Thermal Head
42
4.2.2 Label Gap Sensor
42
4.2.3 Peel Sensor
44
4.2.4 Printing Position
45
4.2.5 Voltage Checkpoint
46
VOLTAGE
46
4.3 Memory Clear
46
4.3.1 Clearing Data Files
46
48
48
4.3.2 Clearing Transaction Files
48
4.3.3 Clearing All Files
49
4.4 Data Backup
50
4.4.1 System Configuration
50
50
4.4.2 Data Transfer Of SM 300 And FL-1 Or PCFL-1
50
4.4.3 Specification Data Transfer Of SM 300 And FL-1 Or PCFL-1
52
5. ASSEMBLY / DISASSEMBLY
54
5.1 Bench and Pole Type
54
5.1.1 Top Cover
54
5.1.2 Circuit Board
54
5.1.2.1 Display Board for Bench
54
5.1.2.2 Display Board for Pole
55
5.1.2.3 Keyboard Circuit Board
55
5.1.2.4 Interface Main Board
56
5.1.3 Printer Kit
56
5.1.3.1 Drawer Block
56
5.1.3.2 Thermal Head
57
5.2 Self-Service Type
57
5.2.1 Self-Service Key Board
57
5.2.2 Pole Display
58
5.3 Hanging Type
59
5.3.1 Side Cover
59
5.3.2 Circuit Board
60
5.3.2.1 Main Board
60
5.3.2.2 Power Block
60
5.3.3 Front / Back Panel
61
5.3.4 Printer Kit
61
5.2.4.1 Printer Block
61
5.3.4.2 Thermal Head
61
5.3.5 Loadcell
62
6. NETWORK CONFIGURATION
63
6.1 RS-232C / RS-485
63
6.1.1 System Configuration
63
6.1.1.1 RS-232C
63
6.1.1.2 RS-485
64
6.2 TCP / IP
65
6.2.1 PC Ethernet Adapter Set-Up
65
6.2.1.1 Configuration Of Ethernet Communication On PC
65
6.2.1.2 Configuration Of Ethernet Card On PC Using WINDOWS 95
65
6.2.1.3 Window version client driver (Client /Server or Server/Workstation connection with PC)
66
6.2.1.4 SIS 98 (Client/Server or Server/Workstation Connection With PC)
66
6.2.2 Scale Ethernet Address, Scale IP Address, Server IP Address & Subnet Mask
67
6.2.2.1 Scale Ethernet Address
67
6.2.2.2 Scale IP Address
68
6.2.2.3 Server IP Address
69
6.2.2.4 Subnet Mask
71
6.2.3 System Configuration
72
6.2.3.1 Server / Client
72
6.2.3.2 Server / Client with PC
73
6.2.3.3 All Server
74
74
74
74
74
74
74
74
74
74
74
74
6.3 Wireless Configuration For Model SM 300
75
7. FIRMWARE
76
7.1 WinDload v2.10
76
7.2 Firmware Version Upgrade
76
7.3 Bin File Updating
77
7.4 Non-Based / Based Downloading
79
7.5 Upgrading Scale firmware Version Using Server / Client Configuration
80
8. HARDWARE SETTING
81
8.1 Memory Expansion
81
8.2 Interface Add On
82
8.3 RF Kit Interface Add On
82
8.3.1 All Models Except Hanging Type
82
83
8.3.2 Hanging Type
83
8.4 Change of Cable
84
9. MISCELLANEOUS
85
9.1 Error Messages
85
9.2 Table of Characters Code
87
9.2.1 ASCII Characters
87
9.2.2 TERAOKA Code
88
9.3 Wire and Connector
88
9.3.1 ETHERNET WIRE - STRAGHT CABLE AND CROSSOVER CABLE
88
9.3.2 RS232C AND MULTIDROP (4 LINE, RS485) WIRE
89
10. Exploded View
92
10.1 Pole Type
92
10..2 Bench Type
93
10.3 Elevated Type
94
10.4 Self-Service Type
95
10.5 Hanging Type
96
11. REVISION RECORDS
97
APPENDIX
97
