Digi SM-300 Service Manual

SM-300 Service Manual
38
KEY TO PRESS OPERATION
At R mode.
0.000 0.00 0.00
0.000
KEY TO PRESS OPERATION
+

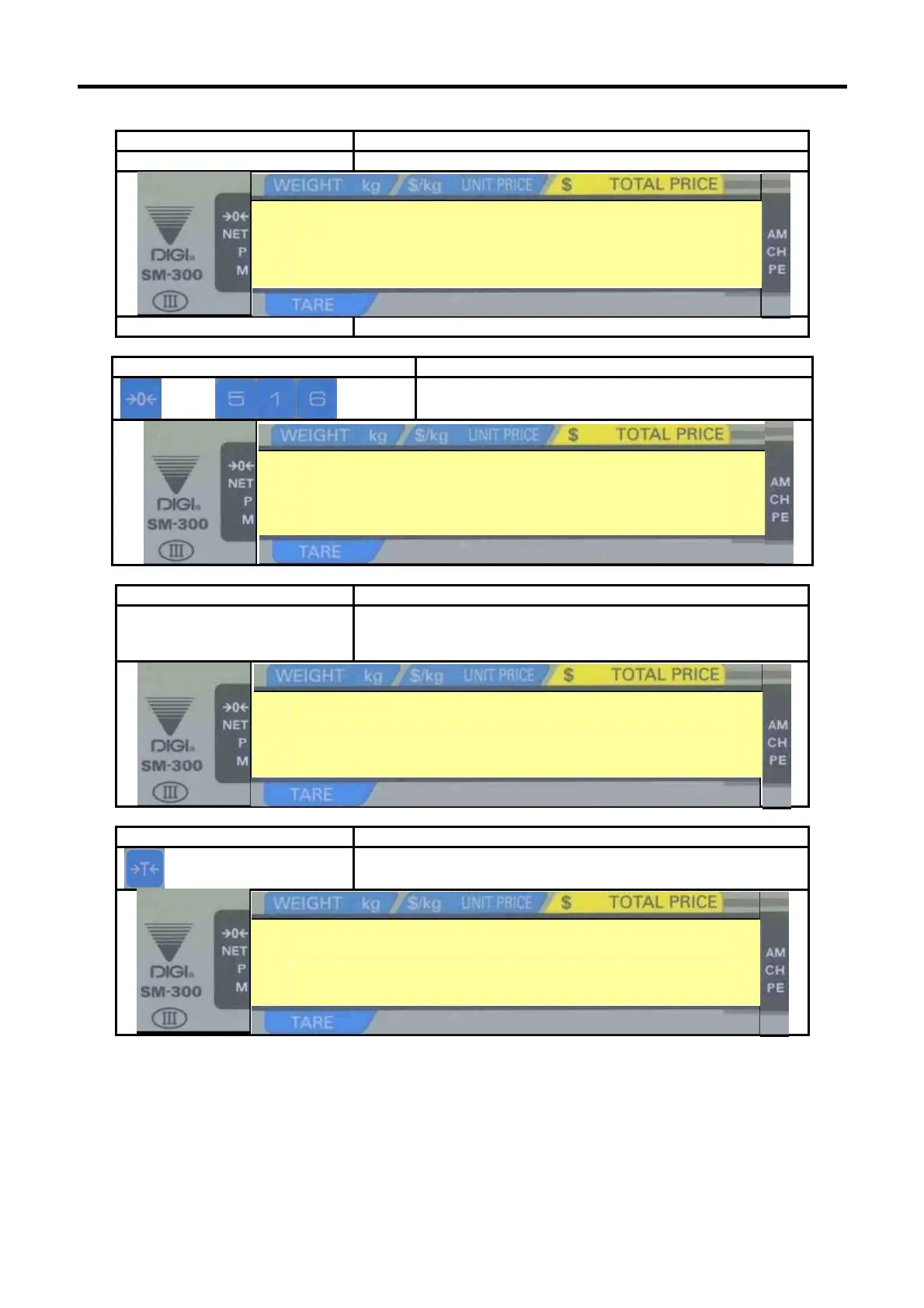

GAP SENSOR VOLT: 2.8V
SET THRESHOLD: 1.4V
KEY TO PRESS OPERATION
Adjust the variable resistor to
increase or decrease the
voltage level
Pull the label. If gap on sensor, the voltage level should be low
while label on sensor, the voltage level should be high.
GAP SENSOR VOLT: 2.8V
SET THRESHOLD: 1.4V
KEY TO PRESS OPERATION
Exit to R mode.
0.000 0.00 0.00
0.000
