SM-300 Service Manual
86

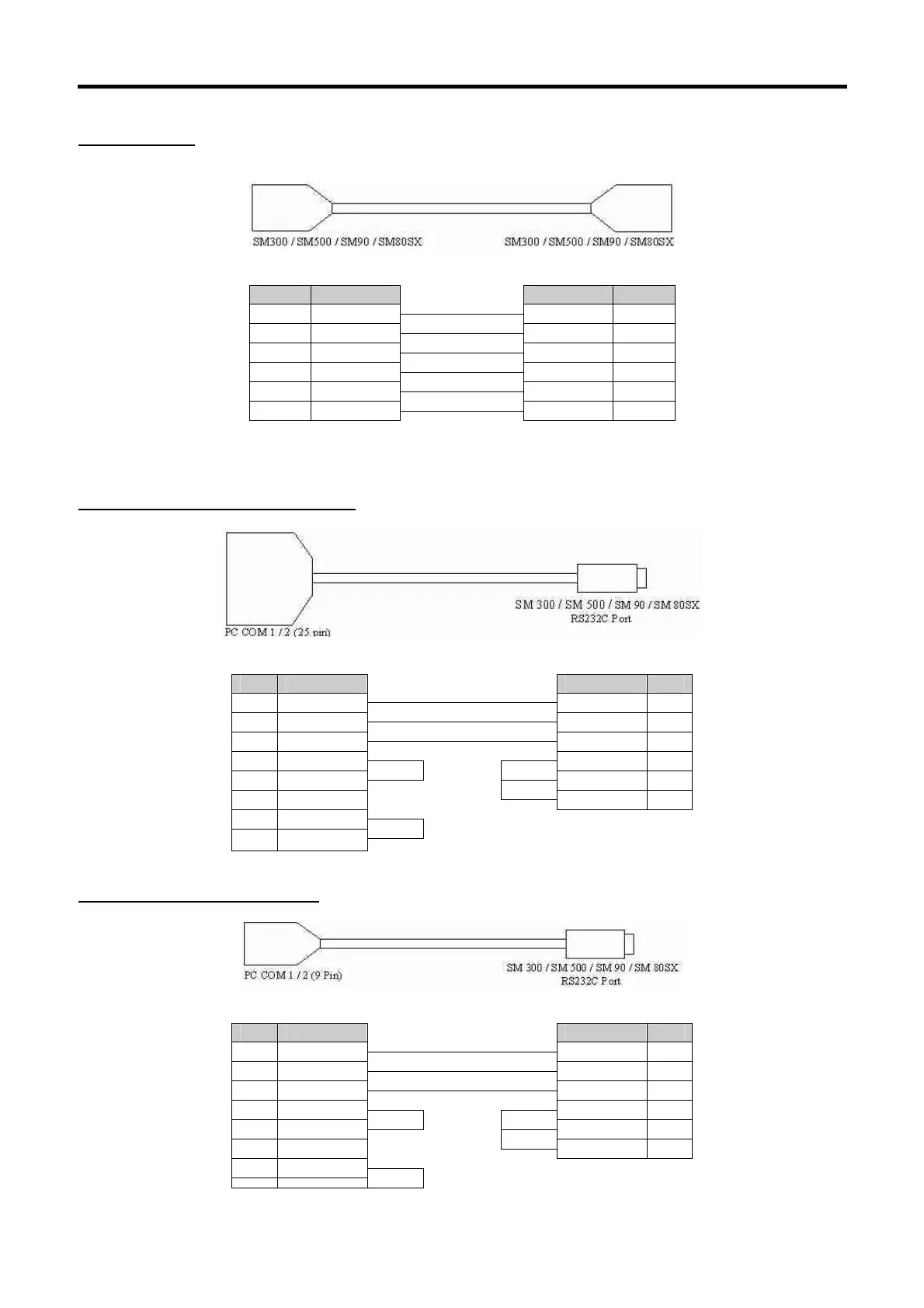

SCALE TO SCALE
(For LCU 401 to scale and scale-to-scale communication)
9 Pin D-Sub (Male) 9 Pin D-Sub (Male)
Pin Signal
Signal Pin
1 IN
IN 1
2 IN
IN 2
3 OUT
OUT 3
4 OUT
OUT 4
5 to 8 N.C.
N.C. 5 to 8
9 GND
GND 9
** REMARK:
Please solder the FG (Film Ground) of the cable to the metal casing of the connector for more isolation to noise.
PC (25 PIN) TO SCALE RS232C PORT
(For PC and PC FL-1 communication)
25 Pin D-Sub (Female) 8 Pin DIN plug (Male)
Pin Signal
Signal Pin
2 TXD
RXD 4
3 RXD
TXD 5
7 GND
GND 2
4 RTS
RTS 6
5 CTS
CTS 7
8 CD
DSR 3
6 DSR
20 DTR
PC (9 PIN) TO SCALE RS232C PORT
(For PC and PC FL-1 communication)
9 Pin D-Sub (Female) 8 Pin DIN plug (Male)
Pin Signal
Signal Pin
3 TXD
RXD 4
2 RXD
TXD 5
5 GND
GND 2
7 RTS
RTS 6
8 CTS
CTS 7
1 CD
DSR 3
6 DSR
To Next Page
