Dobot M1 User Guide 7 Maintenance
Issue V1.3.4 (2019-05-23) User Guide Copyright © Yuejiang Technology Co., Ltd
134

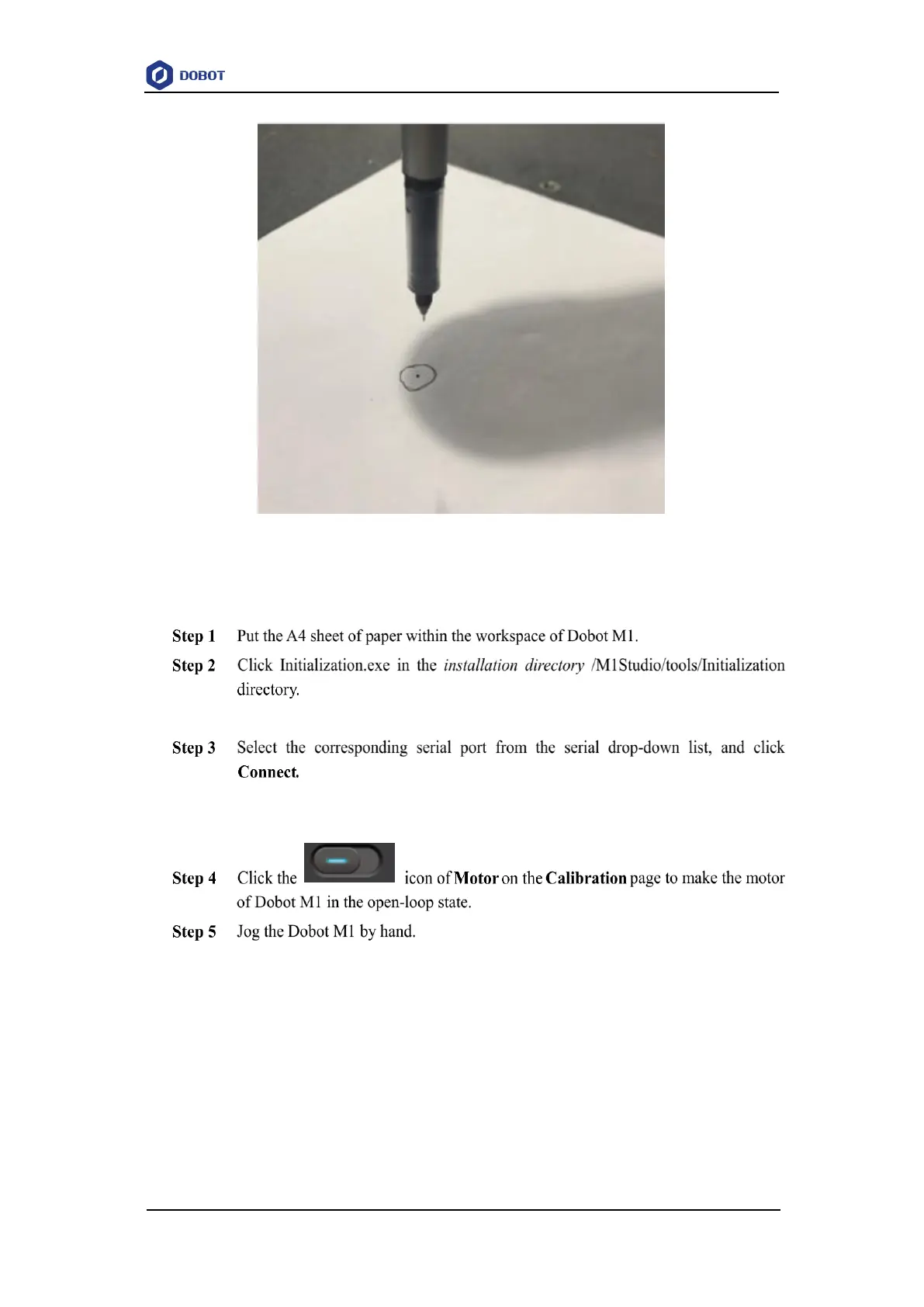

Figure 7.21 Calibration point
Procedure
The M1Studio tool page is displayed.
If Connect turns to Disconnect, the connection is successful, and the Dobot M1 can
be controlled by M1Studio.
Move the Dobot M1 with righty hand orientation to touch the calibrated point that is
on the A4 sheet of paper, as shown in Figure 7.22.
