Dobot M1 User Guide 5 Installation and Commissioning
Issue V1.3.4 (2019-05-23) User Guide Copyright © Yuejiang Technology Co., Ltd
56
function. The procedure for debugging Joint coordinates is similar to that for debugging Cartesian
coordinates. You need to select Joint on the Operation Panel page, and then Click J1+, J1-, J2+,
J2-, J3+, J3-, J4+, and J4- to jog Dobot M1.

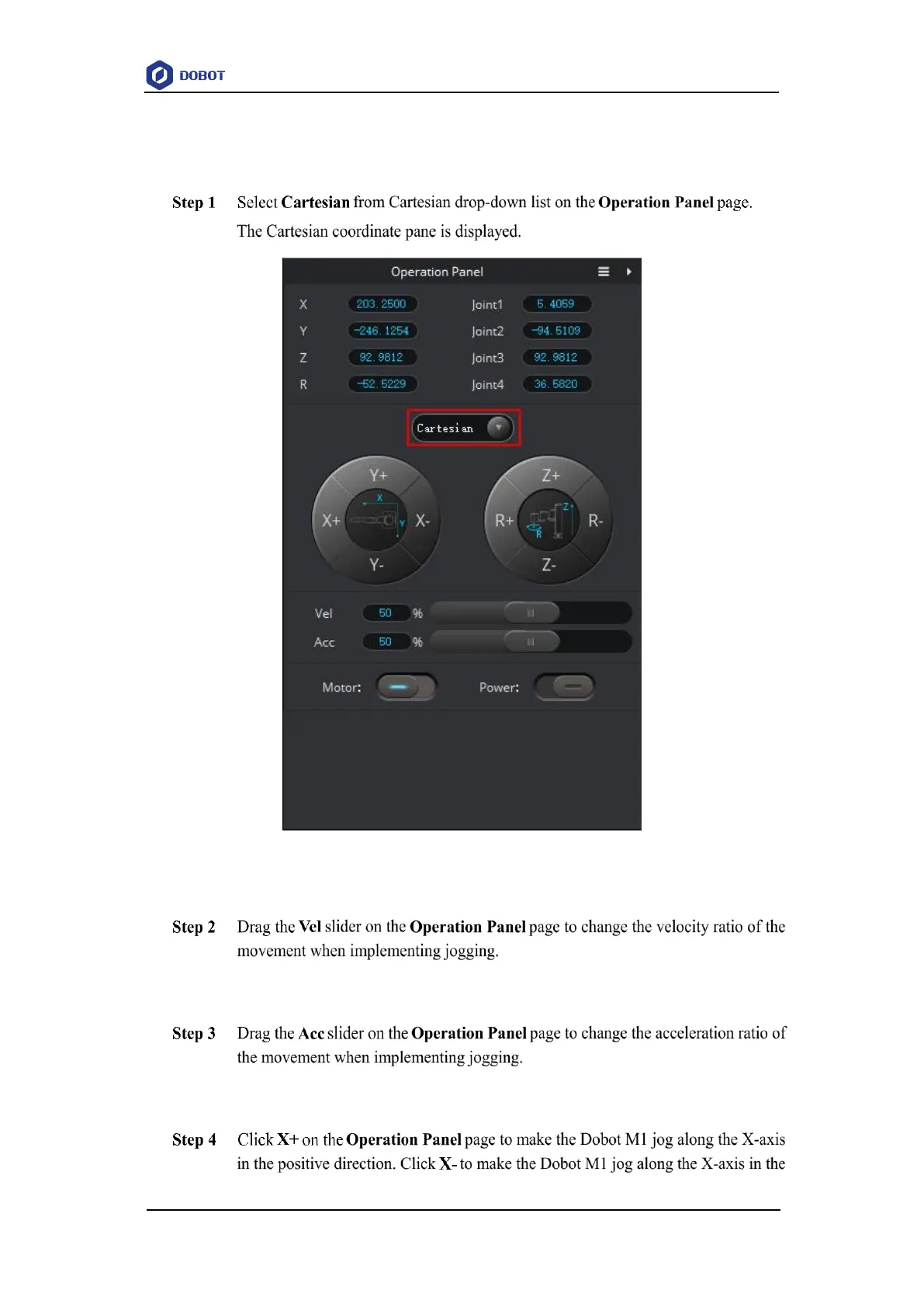

Figure 5.24 Cartesian coordinate mode
The jogging velocity is the maximum velocity multiplying the corresponding
percentage.
The jogging acceleration is the maximum acceleration multiplying the corresponding
percentage.
