End margin has two main functions:
(1) As a D-Top (print signal) is not recognised when initiated in a margin,
the end margin can be used to inhibit random or unrequired D-Top
(print signals).
(2) When changing print direction with a digital input (e.g. printing while
using a traversing print head device), the end margin allows spacing
before the message to correctly position it on the product.

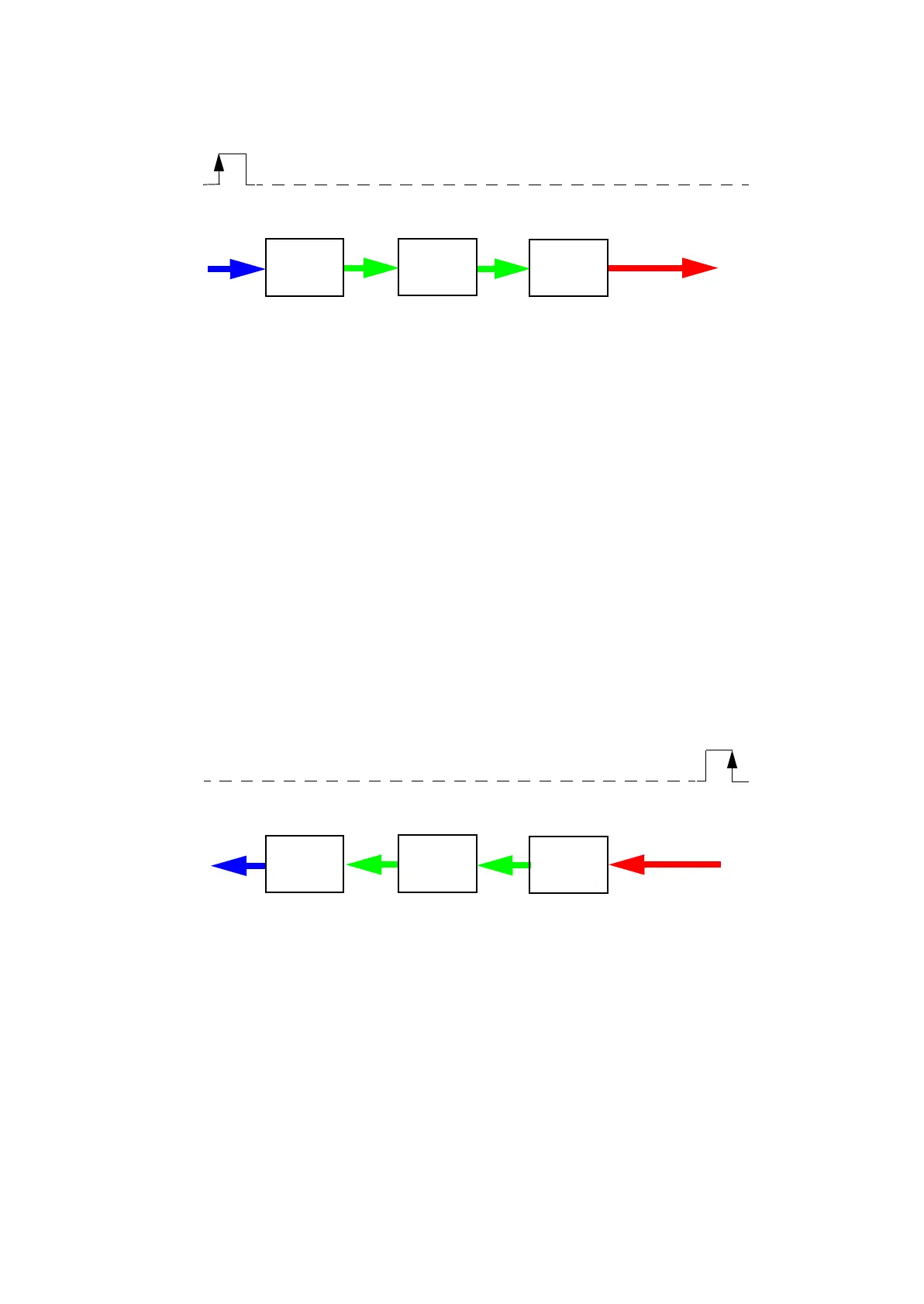

FM= Forward Margin from 0 to 1000mm
MW= Message Width from 1 to 2500mm
SBE= Space Between Elements from 0 to 10,000mm
EM= End Margin from 0 to 1000mm
Print
Element 1
Print
Print
Element 2
Element 3
MW
MW
MW
FM
SBE
SBE
EM
D-top print signal Start Printing
Print
Element 3
Print
Print
Element 2
Element 1
MW
MW
MW
FM
SBE
SBE
EM
D-top print signal Start Printing
