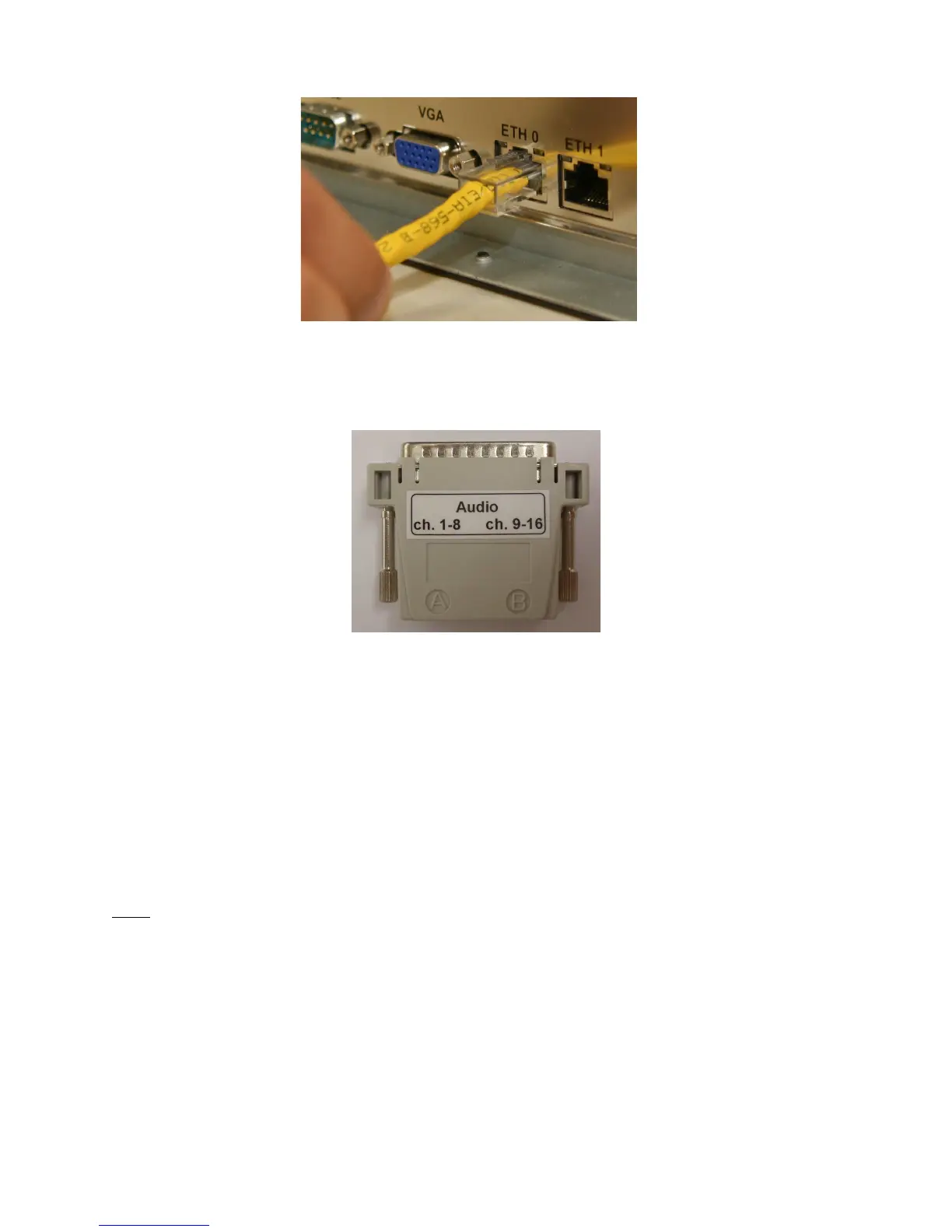

Figure 108: Ethernet Cable Plugged Into the Eth0 Port
• Plug the other end of the CAT5 cable in the audio adapter.
Figure 109: Adapter
• Take another CAT5 cable end and plug it into the bottom AES slot (RJ-45 connector)
faudio channels 9-16.
• Plug the other end of the CAT5 cable in the audio processor.
• Plug one CAT5 cable end from the GPI slot into which ever automator is available or
required.
• Take another CAT5 cable and plug it from the GPO slot into which ever automator is
available or required.
• Power on the NEC projector.
Note: The IMB board will boot up completely
• Power on the ShowVault.
_____________________________________________________________________________________
SHV.OM.001293.DRM Page 105 Version 1.3
Doremi Cinema LLC Confidential
