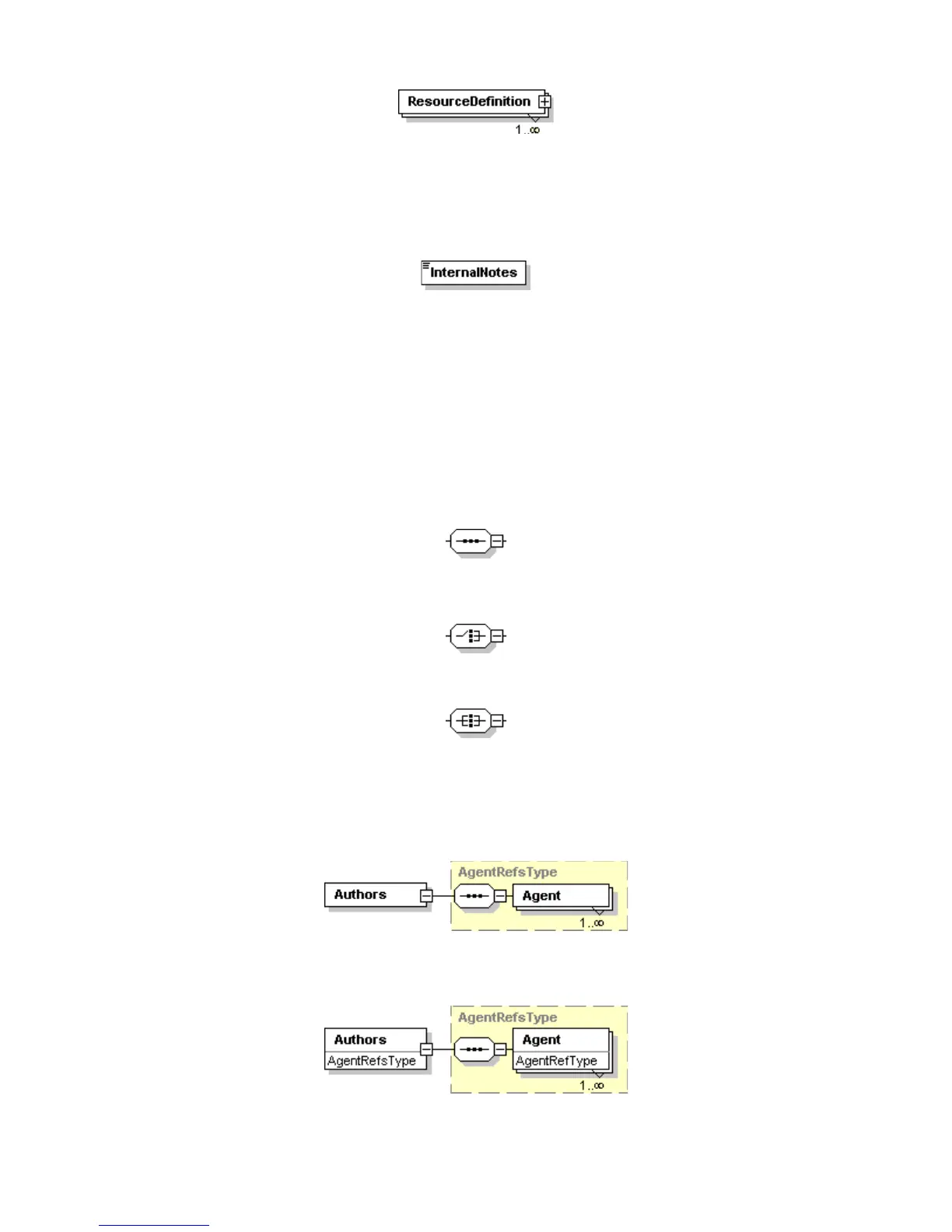

• Mandatory multiple element containing child elements (content = complex). This element
must occur at least once (Minimum Occurrence = 1) and may occur as often as desired
(Maximum Occurrence = unbounded).
• Mandatory single element with containing simple content (e.g. text) or mixed complex
content (e.g. text with xhtml markup). Minimum Occurrence = 1, Maximum Occurrence =
1, type = xsd:string (for example), content = simple. The three lines in the upper left
corner are used for both text and numeric content.
12.4.2 Model Symbols ("compositors")
• A sequence of elements, the elements must appear exactly in the sequence in which
they appear in the schema diagram.
• A choice of elements, only a single element from those in the choice may appear at this
position.
• The "all" model in which the sequence of elements is not fixed.
12.5 Types
• If an element refers to a complex global type, the type is shown with a border and yellow
background. User can click on the gray type name shown at the top to jump to the type
definition itself.
• Depending on the settings in xml spy when generating the schema diagrams, the type
name may be shown in the line below the element name:
