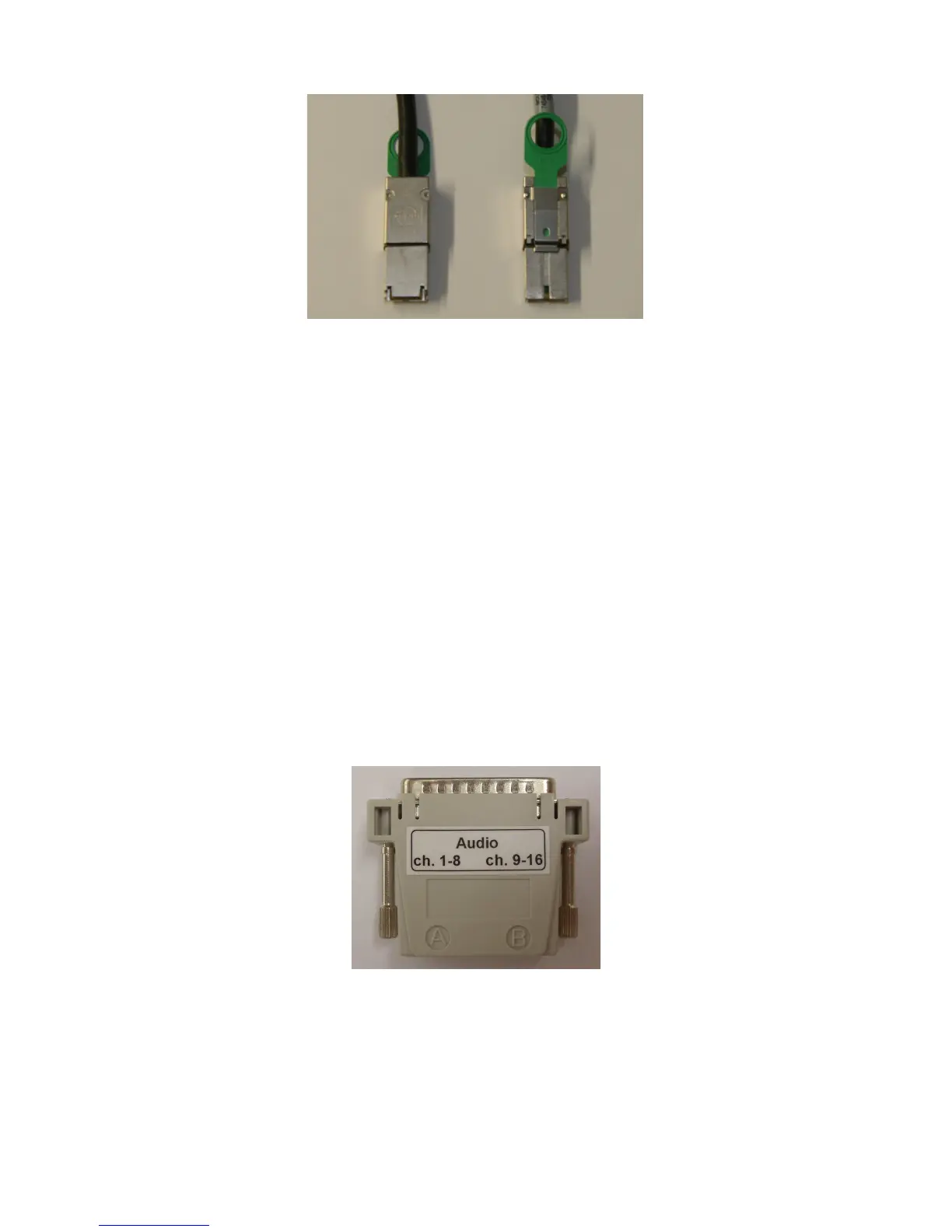

Figure 95: PCI-Express Cable
16.1.2 IMB Certainty Installation
• Unplug the power cables from the projector before beginning the installation process.
• Line up the IMB board with the guiding rails on each side of the slot and insert the IMB
board gently into the projector.
16.1.3 Audio CAT5 Cable Installation
• Plug one CAT5 cable end into the top AES slot (RJ-45 connector) for audio channels 1-
8.
• Plug the other end of the CAT5 cable in the audio processor.
• Take another CAT5 cable end and plug it into the bottom AES slot (RJ-45 connector) for
audio channels 9-16.
• Plug the other end of the CAT5 cable adapter in the audio processor.
Figure 96: Adapter
_____________________________________________________________________________________
SHV.OM.001293.DRM Page 97 Version 1.3
Doremi Cinema LLC Confidential
