3 Rear Panel Connectors
3.1 VGA Cable Connection for Server LCD Screen Usage
If the front panel LCD screen needs to be used (3RU only), the server LCD screen VGA
connector has to be linked to the motherboard VGA connector using the VGA cable. It is
provided with the ShowVault. The VGA cable has to be secured to the ShowVault VGA
connectors using the integrated screws.

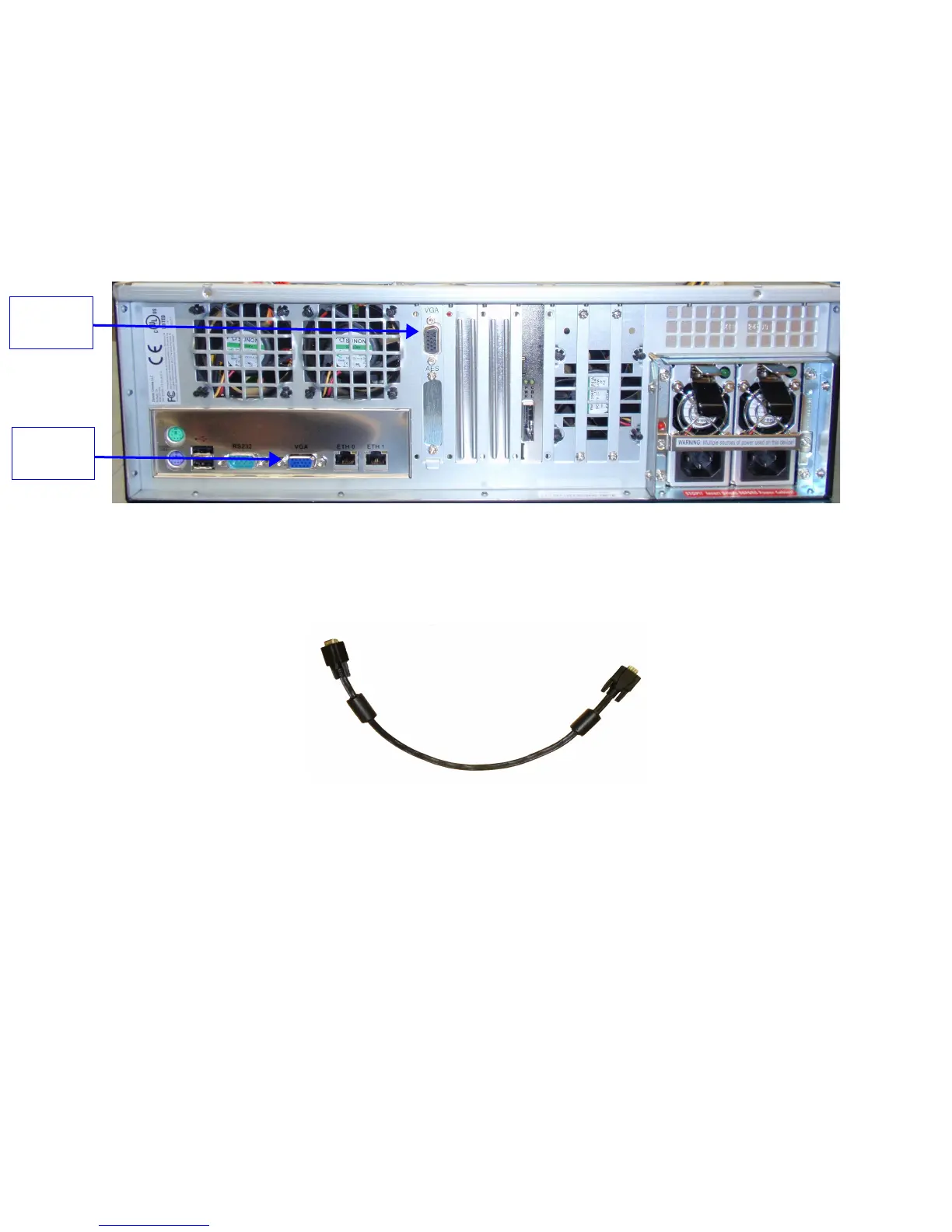

Figure 12: ShowVault (3RU) Rear Panel With SuperMicro Motherboard VGA Connector
Figure 13: VGA Cable
_____________________________________________________________________________________
SHV.OM.001293.DRM Page 19 Version 1.3
Doremi Cinema LLC Confidential
VGA
Connector
VGA
Connector
