16.1 IMB Certainty and Barco Series 2 Projector Set Up (Revision E)
The installation procedure for the IMB Certainty Revision E is the exact same for the Revision A
except for the Audio and GPIO cables. In Revision E, the Audio and GPIO cables are replaced
with Ethernet cables. Follow the steps below to install the Audio and GPIO cables:
16.1.1 ShowVault Hardware Components
• Verify that the following parts are available:
• AC Power Cable

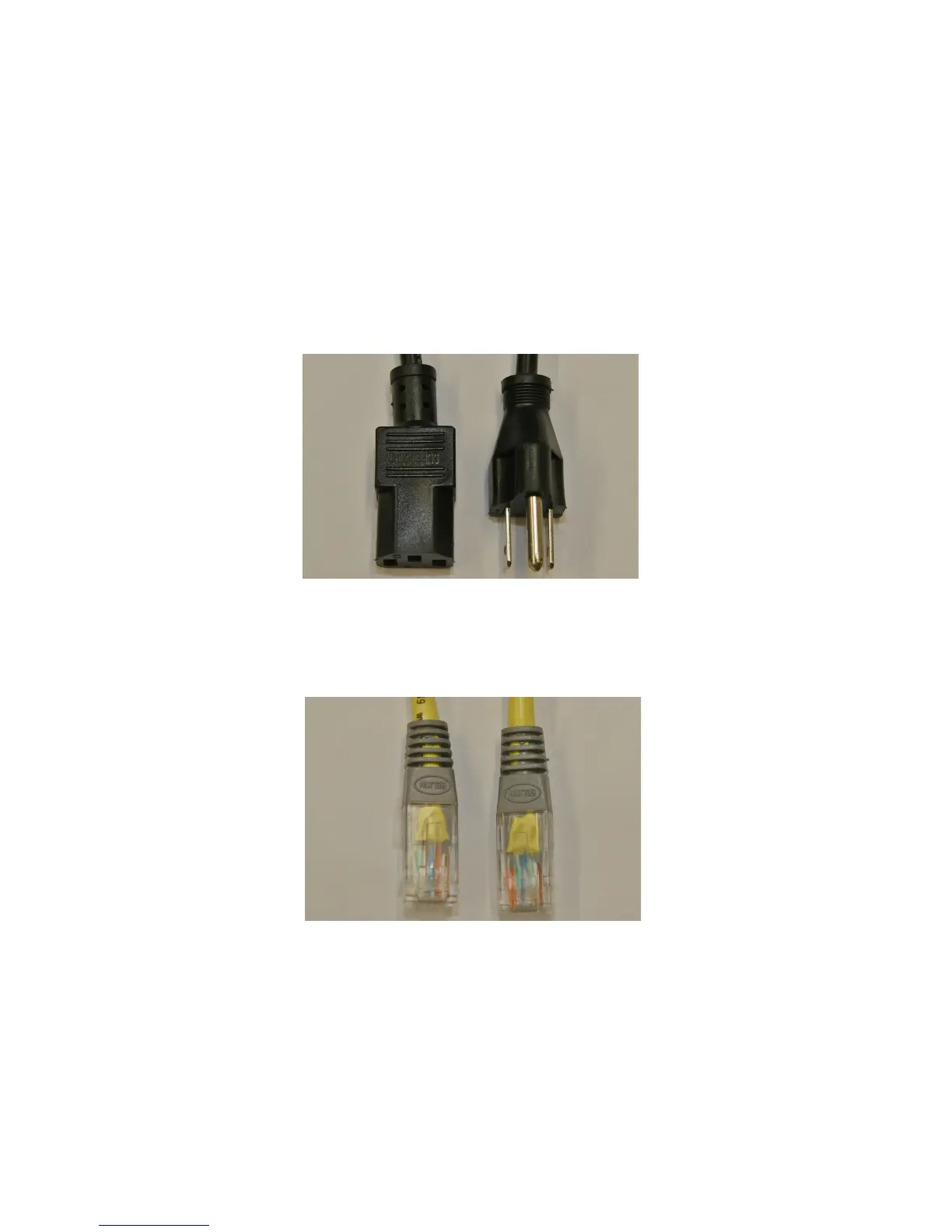

Figure 93: AC Power Cable
• Ethernet Cable
Figure 94: Ethernet Cable
• PCI-Express Cable
_____________________________________________________________________________________
SHV.OM.001293.DRM Page 96 Version 1.3
Doremi Cinema LLC Confidential
