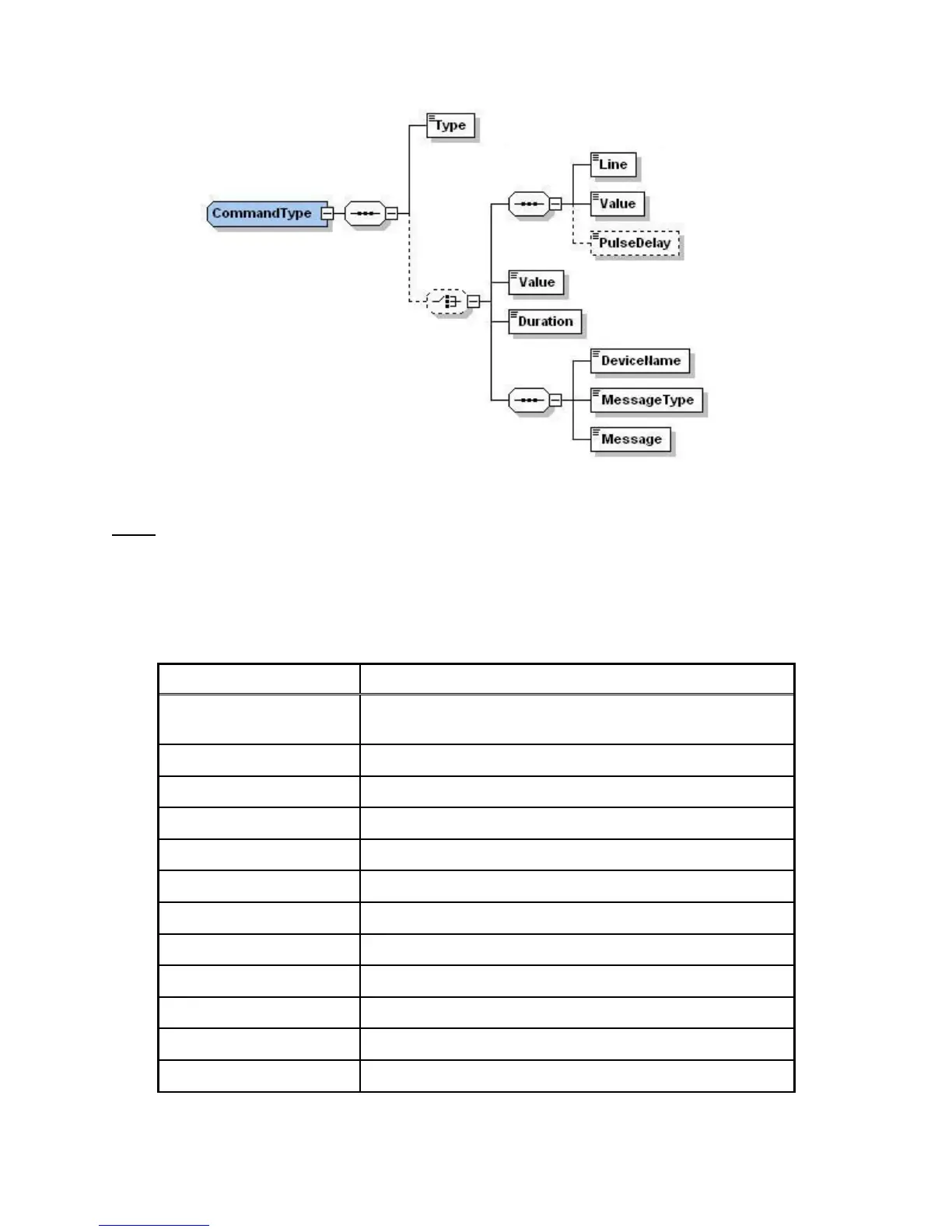

Figure 81: Command Structure
Note: Dotted lines denote optional elements that can be omitted during the creation based on
Macro Editor.
12.2.6.1 Type Sub-Node
The available types of commands are listed below:
Table 1: Command Types Available
Type Description
Black Black video and silent audio signals will be generated by the
server
GPO A GPO will be sent by the server
Dowser Command concerns the projector dowser
Lamp Command concerns the projector lamp
Channel Command concerns the projector channel
Play Command will put the server in play mode
Pause Command will put the server in pause mode
TogglePlayPause Command will put the server in TogglePlayPause mode
VideoOutputMode Command will set the video output mode
ProjectorMacro Command will specify a DLP projector macro
DeviceRawSendMessage Command will send a message to a device
PurgePendingMacro Command will purge pending macros
