Each item will be explained as follows:
Item Description
Refresh
Click it to reload this page.
VLAN ID
Display the VLAN ID number.
Member
Display number of the WAN interface for the packets
tagged with such VLAN ID number to pass through.
Untag
Display number of the WAN interface for the VLAN ID
will be untagged for packets passing through the WAN
interface selected.
4
4
.
.
1
1
.
.
3
3
.
.
2
2
M
M
i
i
r
r
r
r
o
o
r
r
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
a
a
t
t
i
i
o
o
n
n

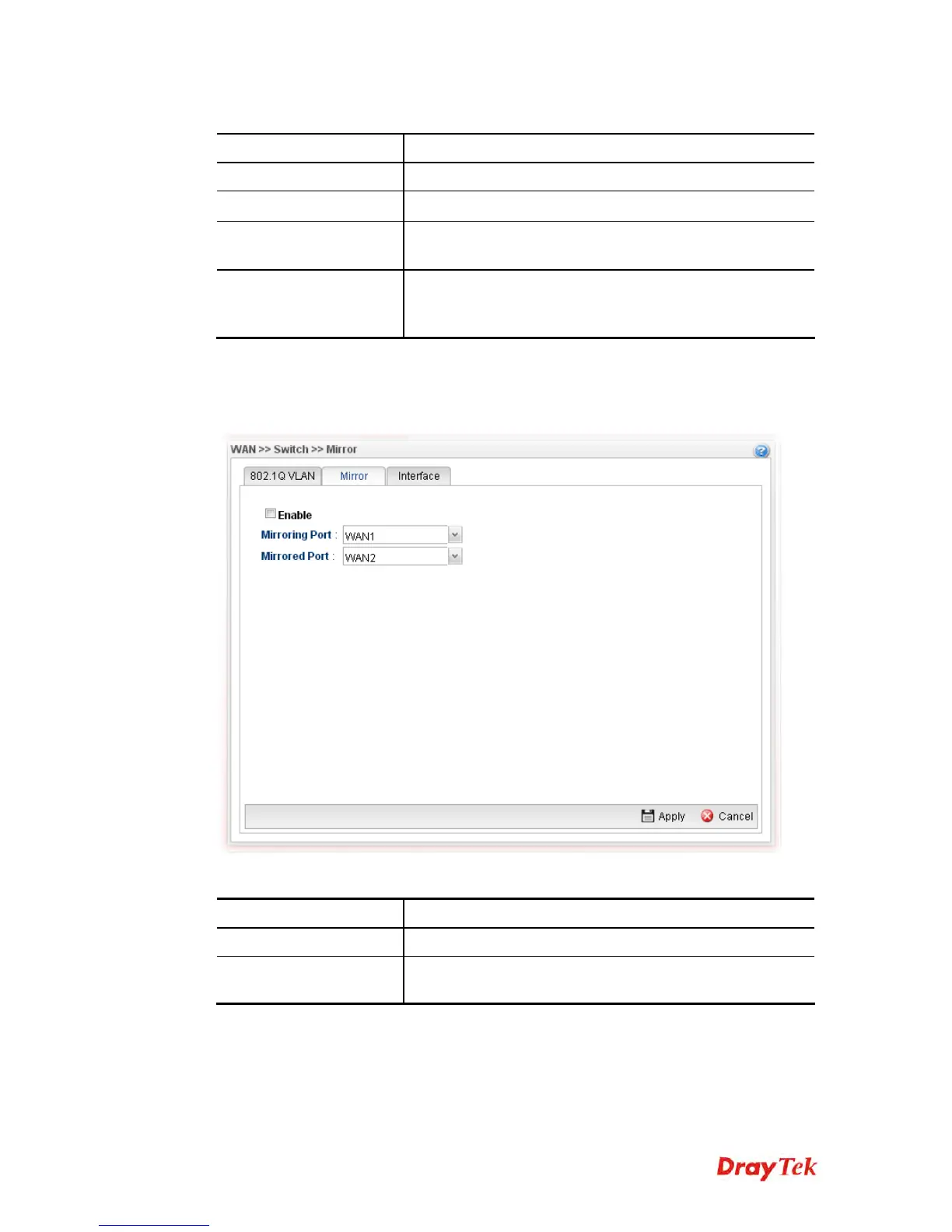

The administrator can monitor all the packets passing through mirrored port with the
mirroring port. It is useful for the administrator to analyze the troubles on Network.
Available parameters are listed as follows:
Item Description
Enable This Profile
Check the box to enable the Mirror function for the switch.
Mirroring Port
Select a port for the administrator to use for viewing traffic
sent from mirrored ports.
