Item Description
Subnet Mask
Display the subnet mask for such profile.
H
H
o
o
w
w
t
t
o
o
c
c
r
r
e
e
a
a
t
t
e
e
a
a
n
n
e
e
w
w
I
I
P
P
o
o
b
b
j
j
e
e
c
c
t
t
p
p
r
r
o
o
f
f
i
i
l
l
e
e
1. Open Objects Setting>>IP Object.
2. Simply click the Add button.

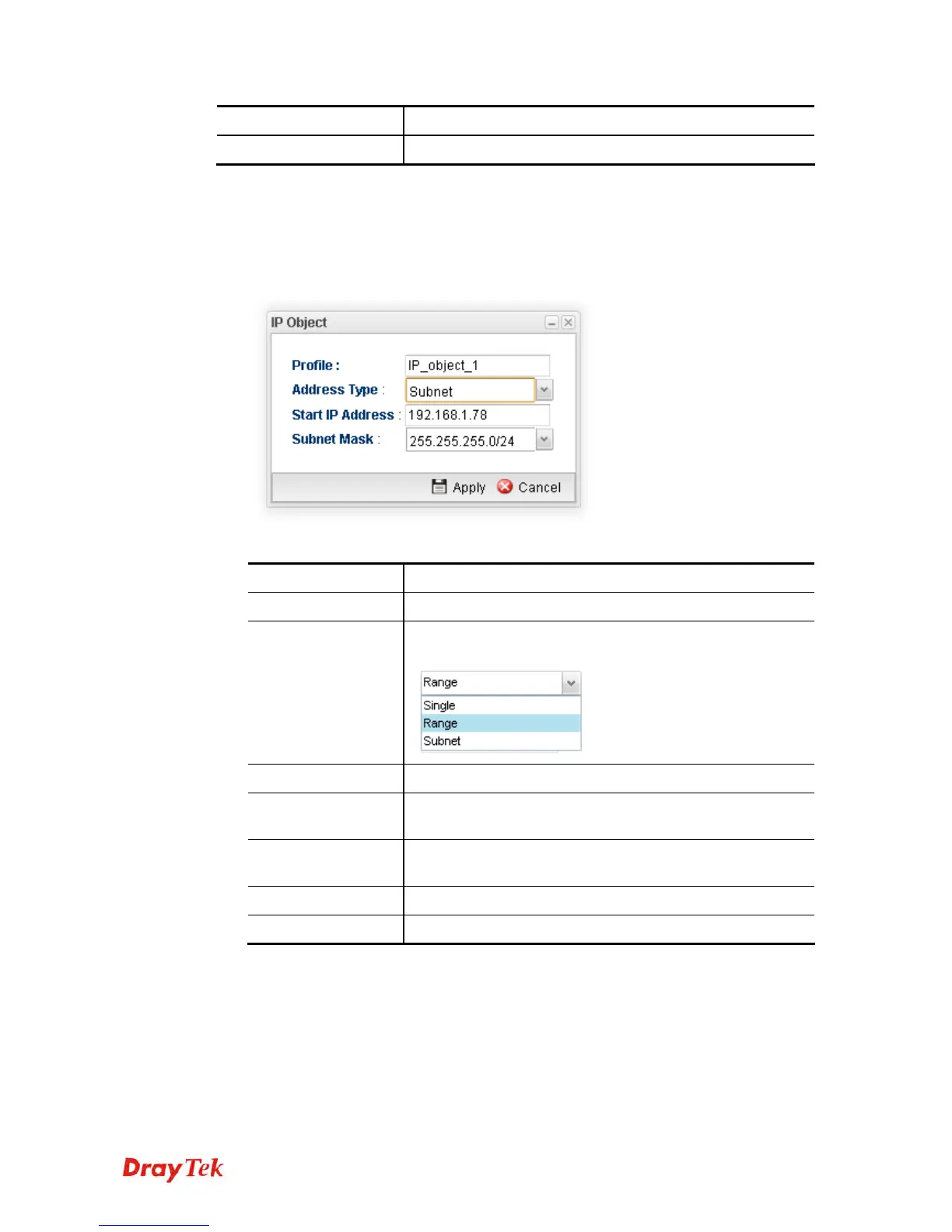

3. The following dialog will appear.
Available parameters are listed as follows:
Item Description
Profile
Type the name of such profile.
Address Type
Choose the address type (Single / Range /Subnet) for such
profile.
Start IP Address
Type the IP address of the starting point for such profile.
End IP Address
Type the IP address of the ending point for such profile if
you choose Range as Address Type.
Subnet Mask
Use the drop down list to choose the subnet mask for such
profile if you choose Subnet as Address Type.
Apply
Click it to save and exit the dialog.
Cancel
Click it to exit the dialog without saving anything.
4. Enter all the settings and click Apply.
5. A new IP object profile has been created.
