Vigor3900 Series User’s Guide
47
5. Click Apply to save the settings and exit the dialog.

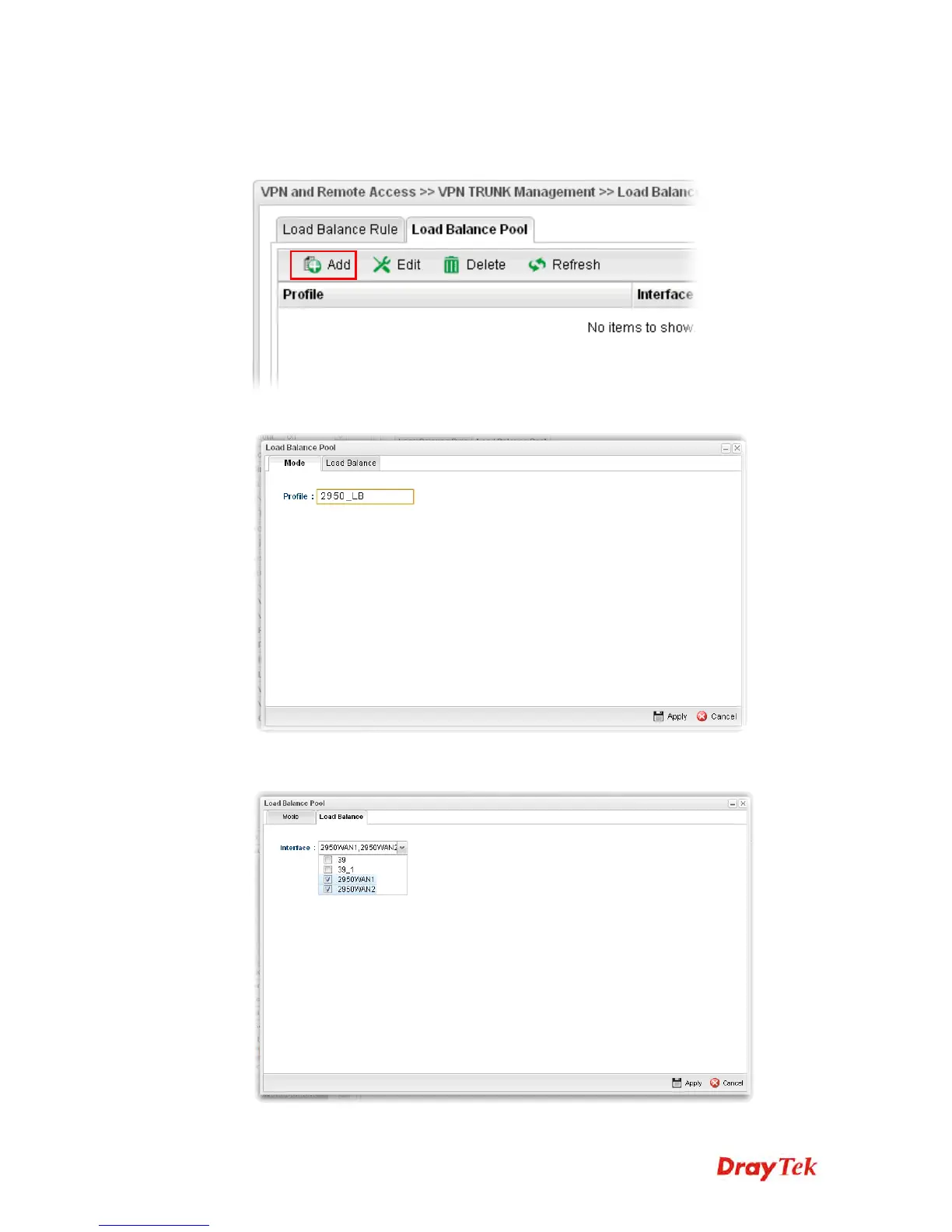

6. Open VPN and Remove Access>>VPN Trunk Management and click the Load
Balance Pool tab. Click Add to add a Load Balance Pool profile.
7. The following window will pop up. Give a name for the profile.
8. Click the Load Balance tab. Select the IPSec GRE profiles (e.g., 2950WAN1) set for
Vigor2950 then click Apply.
