English–PACE5000/6000 Instruction Manual | 1
Introduction
1. Description
1.1 Introduction
The PACE5000 single-channel and PACE6000 single/dual-channel, Pressure Automated
Calibration Equipment measures and controls pneumatic pressures and displays, on a touch-
screen, the pressure measurement and controller status. The touch-screen enables selections
and settings in both measure and control modes. The instrument can be operated remotely
through communication interfaces.

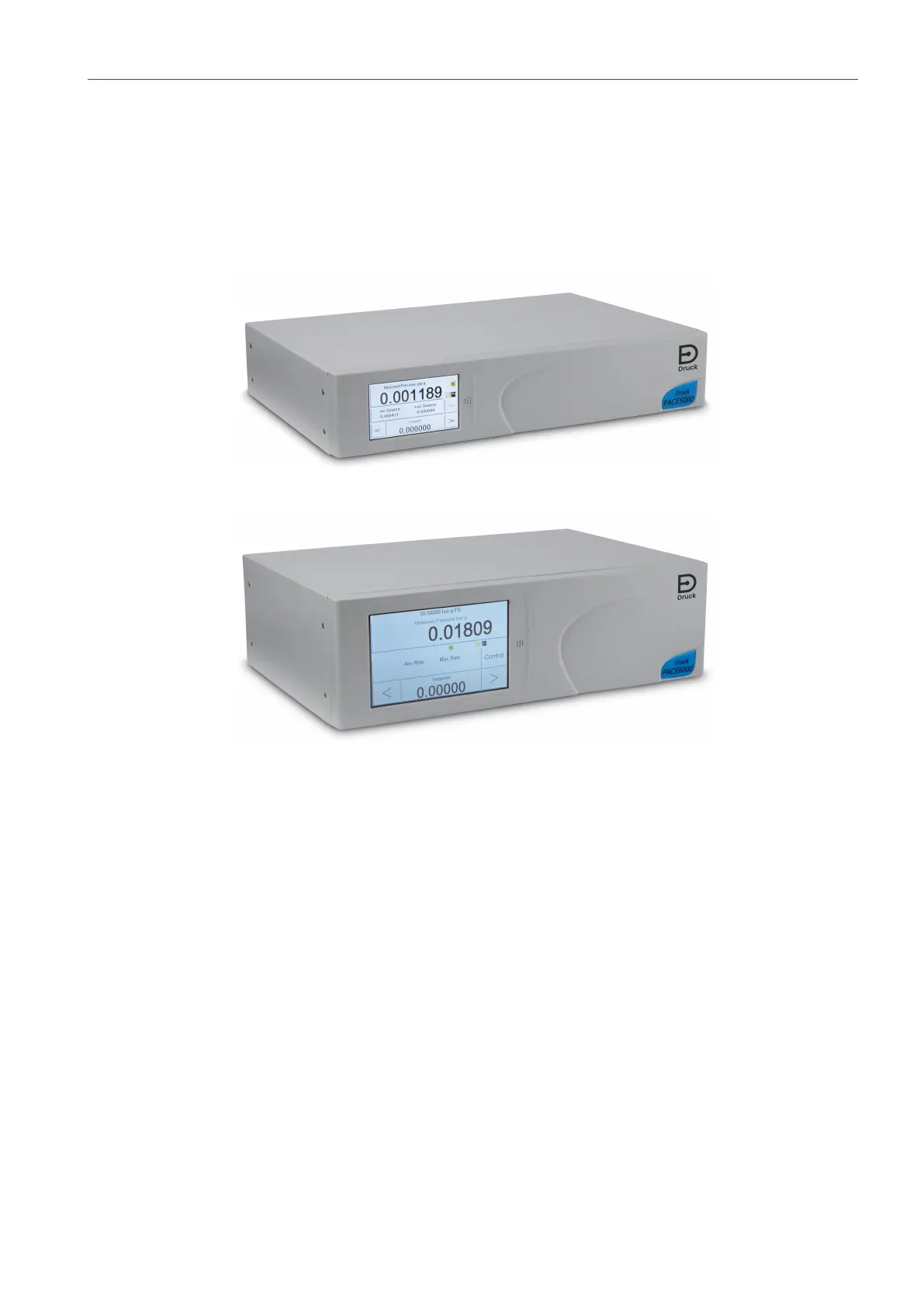

Figure 1-1: PACE5000 General View
Figure 1-2: PACE6000 General View
The rear of the instrument houses all the electrical and pneumatic output and input connections.
The electrical connections provide an AC power supply, serial and parallel communication
interfaces, DC output and Logic input and output. The system pneumatic controller module
contains a positive and negative pressure supply port, an output port, vent port and reference
port.
The instrument can be used as follows:
• Free-standing instrument positioned on a horizontal surface.
• Rack-mounted in a standard 19 inch rack using the rack-mount option kit.
