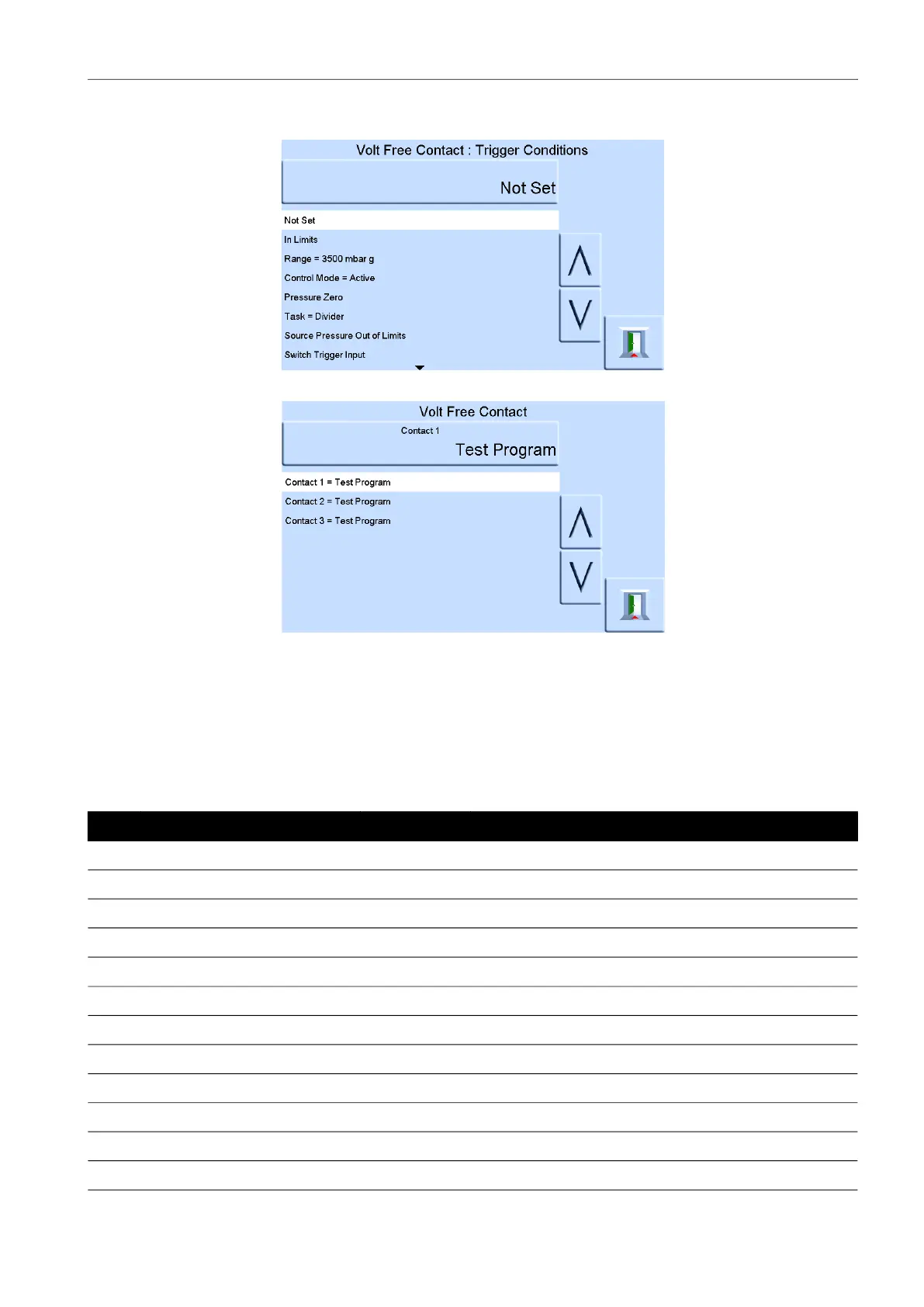

Test Program Option
When selected, certain commands require a value or selection to be set (e.g.) RANGE, RATE,
TEXT the display shows a screen prompt for the appropriate setting.
6.13.5 Example Program
Note: Changes to instrument settings made in a test program remain valid only for the test
program.
The second step of a test program must contain the units command.
The instrument reverts to the pre-test settings on exit to another task.
Table 6-7: Example Program
Step Command Argument Action
1 START Program start
2 UNITS mbar Select units, mbar
3 RATE 100 Select rate, 100 mbar/min
4 IN LIMITS TIME 10 (00:00:10) seconds
5 IN LIMITS Set In-Limits band
6 RESOLUTION 5 Display resolution, 5 digits
7 SETTLING No overshoot
8 TEXT Operator instruction, e.g.”Connect UUT”
9 ZERO
10 SET POINT 400 Set-point, 400 mbar
11 CONTROL Controller ON
12 WAIT IN LIMITS Wait for In-Limits condition
