74 | PACE5000/6000 Instruction Manual–English
Chapter 6. Reference
6.15.7 Control of Aeronautical Parameters
The aeronautical control is an integrated controller. The two modules work together as a dual
channel pressure controller
Figure 6-4.
In aeronautical mode, the display goes to the last selected parameter:
• Altitude
• Airspeed
• Mach

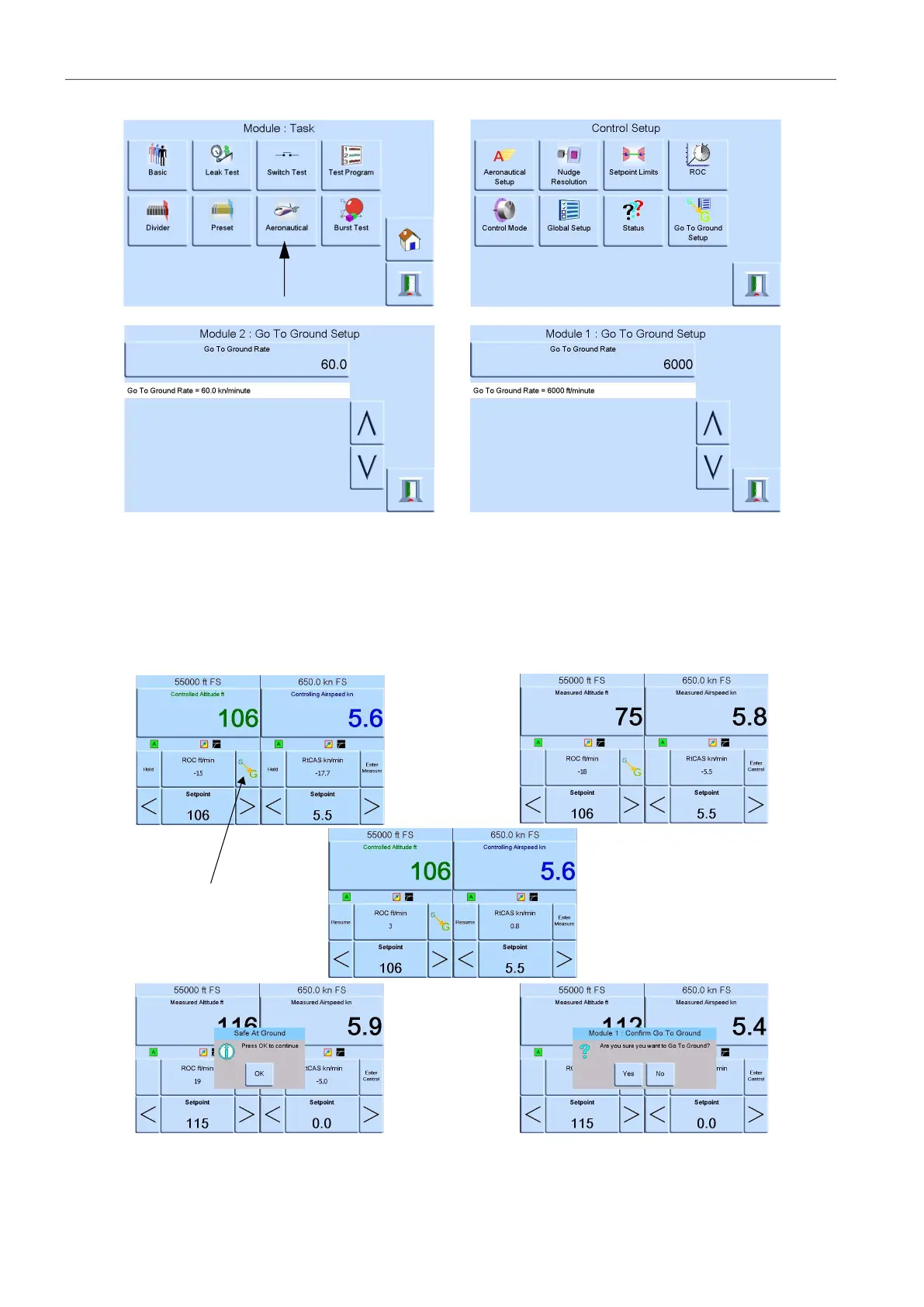

Figure 6-4: Screen Layout
1
