6.11 Leak Test Option
This task applies one or two test pressures to either an external system to find any leaks in a
system connected to the instrument or an internal leak check. This task sets the test pressure,
control dwell time at the test pressure and the leak test time (measure dwell time).
Note: If only one test pressure is required, set TP1 = TP2.
At the start of the test, the instrument applies a test pressure to the user system.
A control dwell time allows the user system to thermally stabilize. The instrument changes to
measured mode and then records the pressure change during measure dwell time. On

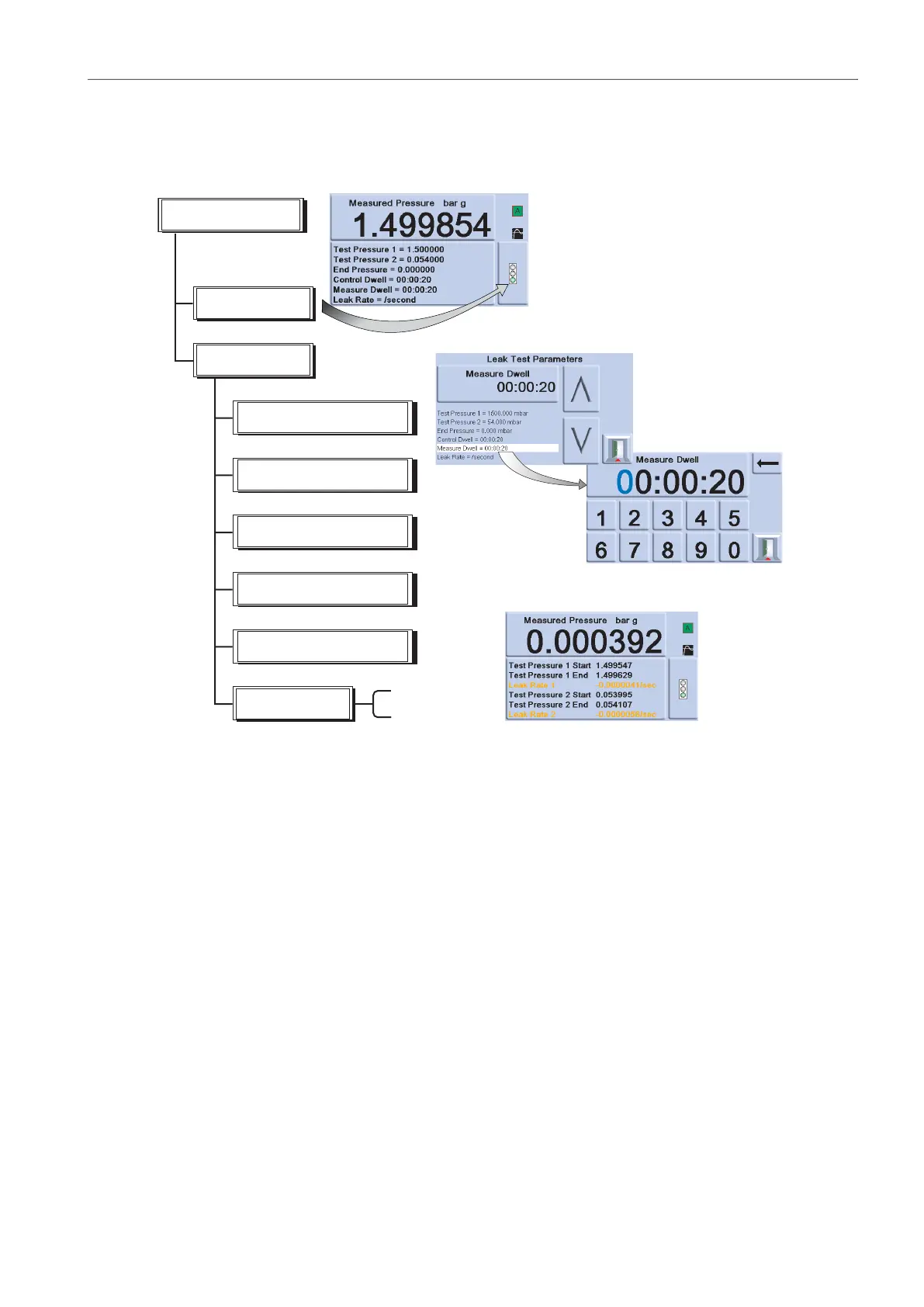

Example set-up parameter
Example leak rate results
Start
Test pressure 1
Leak test
Set-up
Test pressure 2
Edit pressure
Control dwell time
Measure dwell time
Leak rate
/second
/minute
