Druck PACE5000 User Manual

Copyright 2008 Baker Hughes Company.
English–PACE5000/6000 Instruction Manual | 5
Connecting to PACE
2.4.2 Pressure Connection
The PACE has parallel thread pressure connectors. Use only the connector type specified in
Table 2-2.
Refer to Figure 2-2 for connection to the PACE pressure connectors.

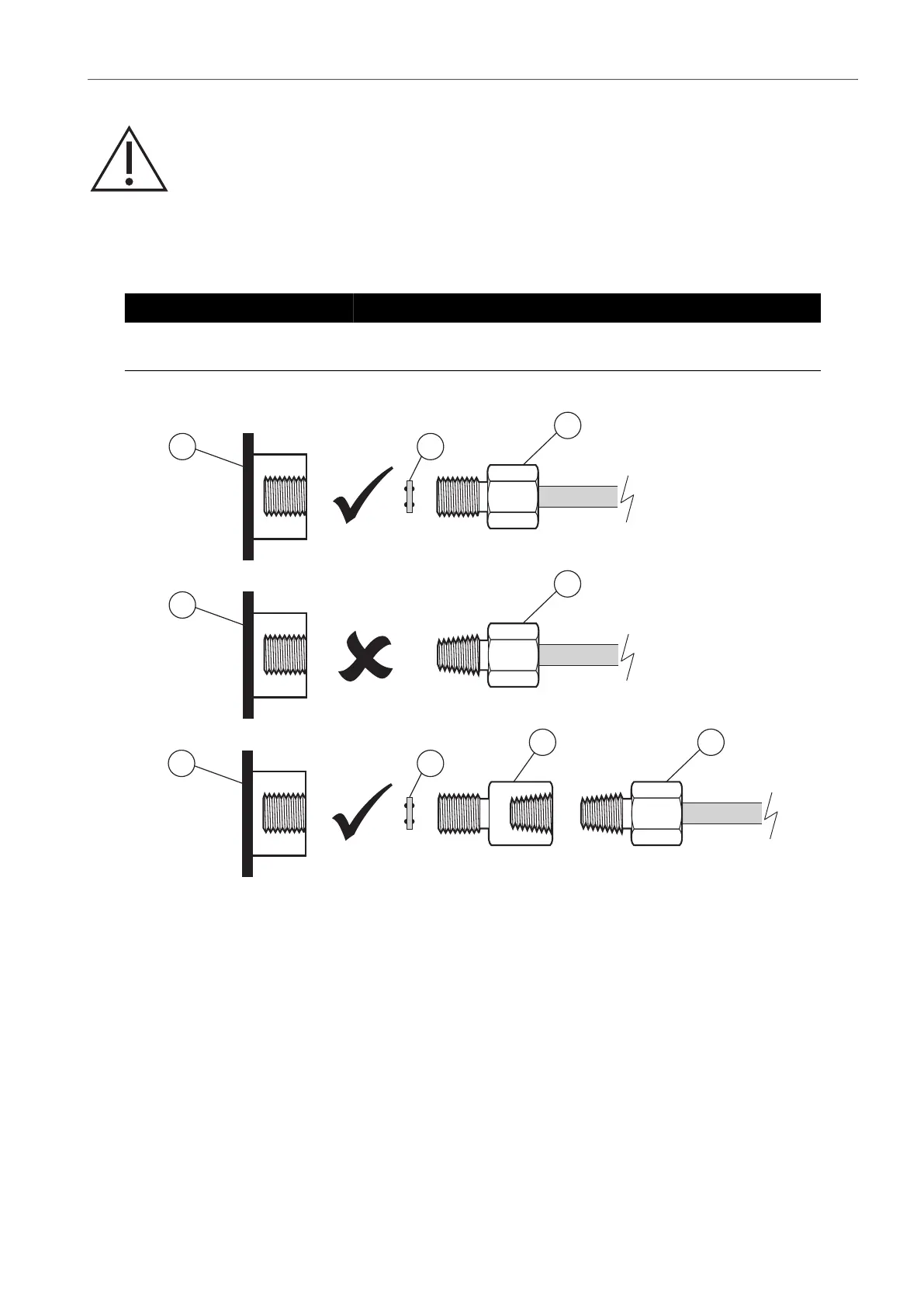

Figure 2-2: PACE Pressure Connection
WARNING Parallel threads must be used. Female thread type is parallel
thread to ISO228/1 (DIN ISO228/1, JIS B0202) G1/8.
Tapered threads not allowed.
Table 2-2: PACE Pressure Connector Thread Specification
PACE Connector Thread Specification
Supply +, Supply -, Output,
Vent, Reference
ISO228/1 G1/8 Parallel Threads (DIN ISO228/1, JIS B0202)
1 PACE pressure connector. 2 Bonded seal.
3 ISO228/1 G1/8 pressure connector. 4 NPT thread pressure connector.
5 Pressure adaptor, see Section 2.4.1.
1
1
3
4
45
1
2
2
