Chapter 3. Operation
3.5 Operation and Example Procedures
3.5.1 Introduction
Before operation, the instrument must be connected to the correct electrical and pneumatic
supplies. Refer to
Section 2, “Installation,” on page 3.
Switch the instrument ON, the display shows measured pressure mode (except when regulator
mode is selected) and the task set before the power-off.

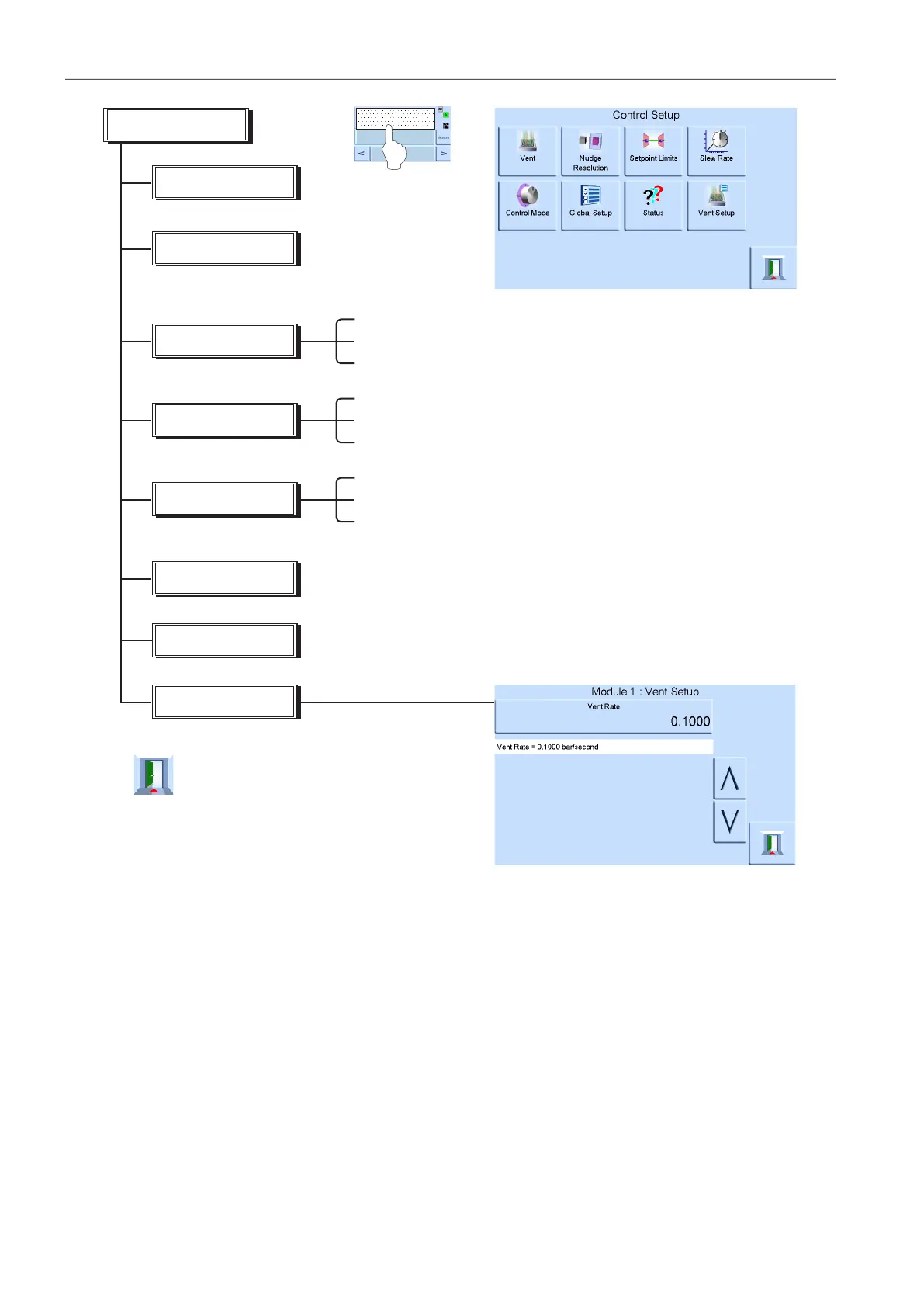

3.5.2 Measure and Control Modes
The instrument operates in the two modes that follow:
Vent
Nudge resolution
Set-point limits
Slew rate
Control mode
Global set-up
Control set-up
Status
Vent set-up
-
Replaced by Go to Ground when in
aeronautical option.
Exit set-up.
Upper
Lower
Enable/disable
Yes/No Ê
-
Sets set-point nudge
resoultion.
1
st
to 7
th
digit.
-
Linear - Enter units/second
Maximum rate
Toggle between: fast/no overshoot
Active - Continuous control to set-point
Passive - Controls outside user defined band
Gauge - Controls from zero gauge to set-point
see 3.6:
-
see 3.9:
-
Ê
To Next Page
