Copyright 2008 Baker Hughes Company.
22 | PACE5000/6000 Instruction Manual–English
Chapter 3. Operation
Press and the instrument stops controlling pressure and changes to measure mode:
3.4.1 Controlling to a New Set-point

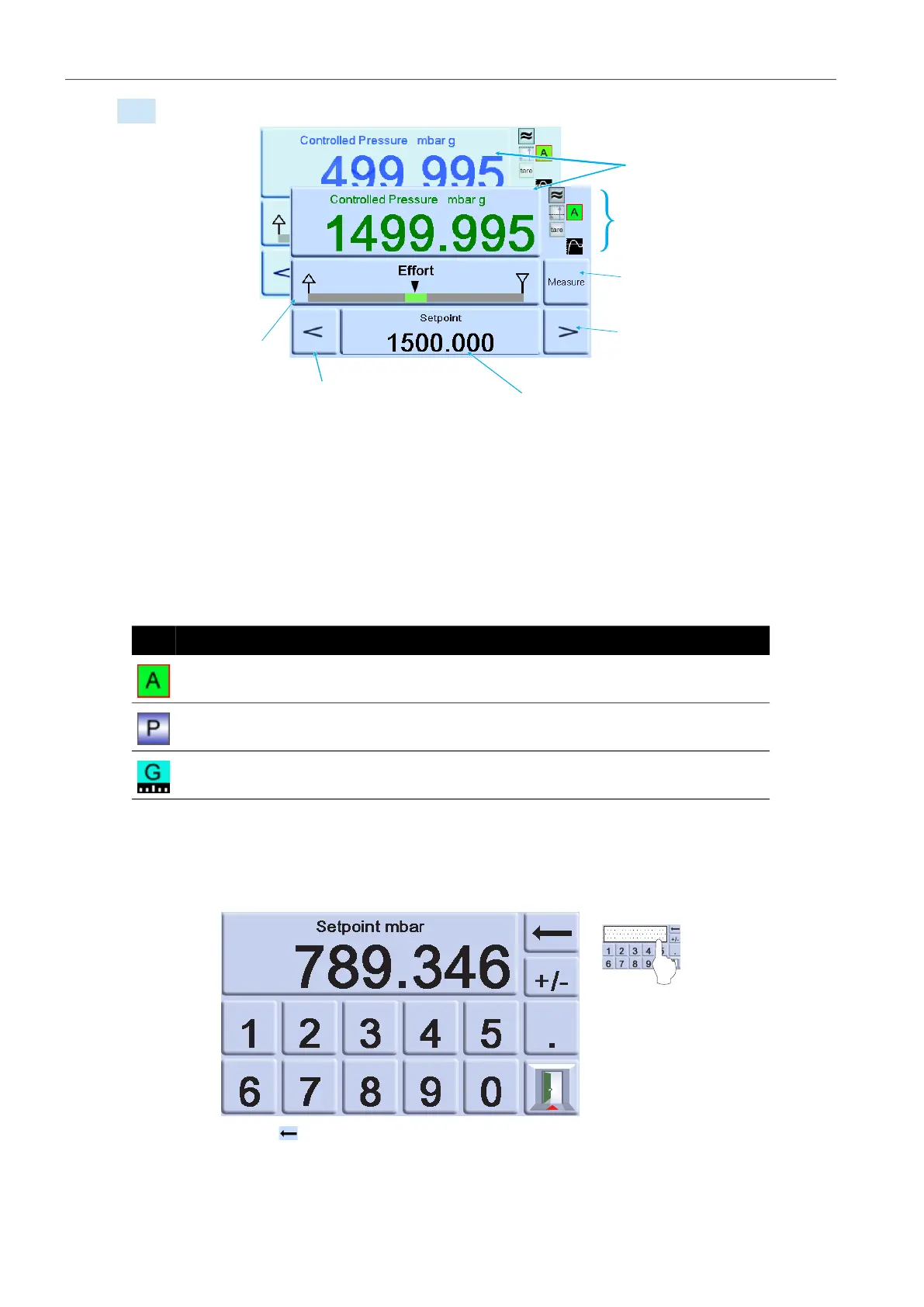

1. To change the set-point value, touch the set-point area of the screen and the display shows
the numeric keys.
2. Set the new set-point value.
3. If necessary, use the key to remove the last digit in the set-point value display.
4. To save the new set-point, touch the set-point area of the screen. This returns the display to
the measured pressure screen and showing the new set-point.
1 Current measured pressure value (in-limits green, out of limits blue).
2 In active control mode:
Pressure reading filter ON.
Head (pressure) value applied.
Control mode with overshoot.
Tare enabled.
3 Press to switch between controlled pressure and measured pressure.
4 Nudge up.
5 Set-point, press and the display changes to numeric keys.
6 Nudge down.
7 Status area shows effort meter set in global setup, press to enter control setup.
Icon Function
Active mode - control active, except in measure mode.
Passive mode - when the controller achieves in-limits condition, measure mode is
automatically selected.
Gauge mode - when the controller achieves zero gauge in-limits condition,
measure mode is automatically selected and the zero valve opens.
