Control Mode
With both controllers in Measure mode, if a set-point above the range of the lower ranged
controller is entered and Control is then selected, then the range is changed to the higher ranged
controller and this then controls to the entered set-point.
3.3.3 Controller Off – Decreasing Set-point
With both controllers in Measure mode, if a set-point within the range of the higher ranged
controller is entered and Control is then selected the higher ranged controller controls to the
entered set-point.
With both controllers in Measure mode, if a set-point above the range of the lower ranged
controller is entered and Control is then selected, then the higher ranged controller will control to
this set-point. When the controller is in-limits then the range is changed to the lower ranged
controller and this then controls to the entered set-point.
3.3.4 Controller On – Increasing Set-point
With the lower ranged controller in Control mode, if a set-point within the range of the lower
ranged controller is entered then the lower ranged controller controls to the entered set-point.
If the set-point is increased to above the lower range but still within the higher range then the
lower range controller switches off and that the higher range controller switches on and controls
to the entered set-point.
3.3.5 Controller On – Decreasing Set-point
With the higher ranged controller in Control mode, if a set-point within the range of the higher
ranged controller is entered then the higher ranged controller controls to the entered set-point.
If the set-point is decreased to within the lower range then the higher range controller will control
to this set-point. When the controller is in-limits then the range is changed to the lower ranged
controller and this then controls to the entered set-point.
3.4 Control Mode
In measure mode, press and the instrument changes to control mode.

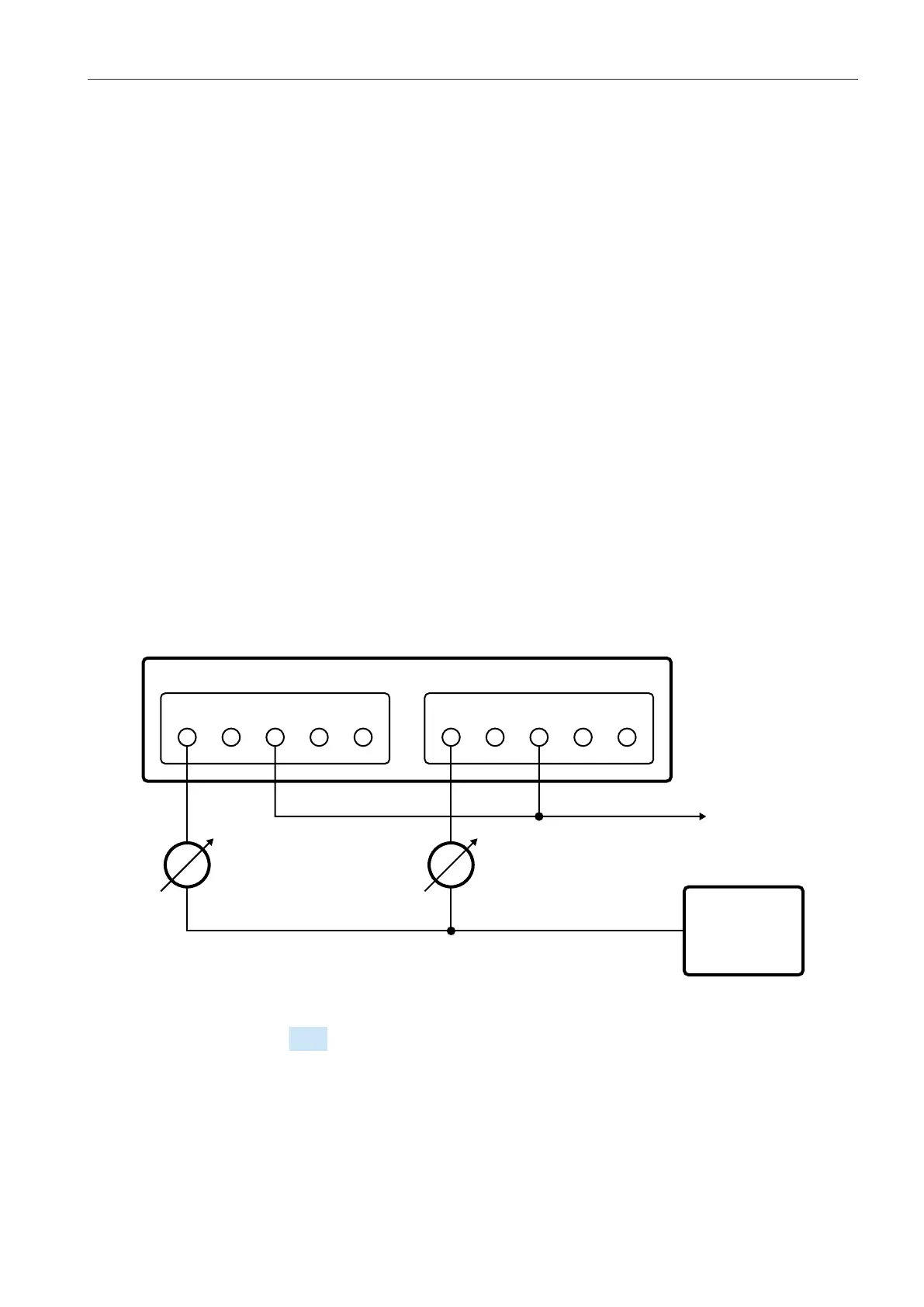

SUPPLY
OUTLET VENT REF
+-
Module 2
SUPPLY
OUTLET VENT REF
+-
Module 1
Pressure
output
Pressure
source
Pressure
regulator
Pressure
regulator
Rear view of
PACE6000
instrument
Control
