4 | PACE5000/6000 Instruction Manual–English
Chapter 2. Installation
2.4.1 Pressure Adaptors

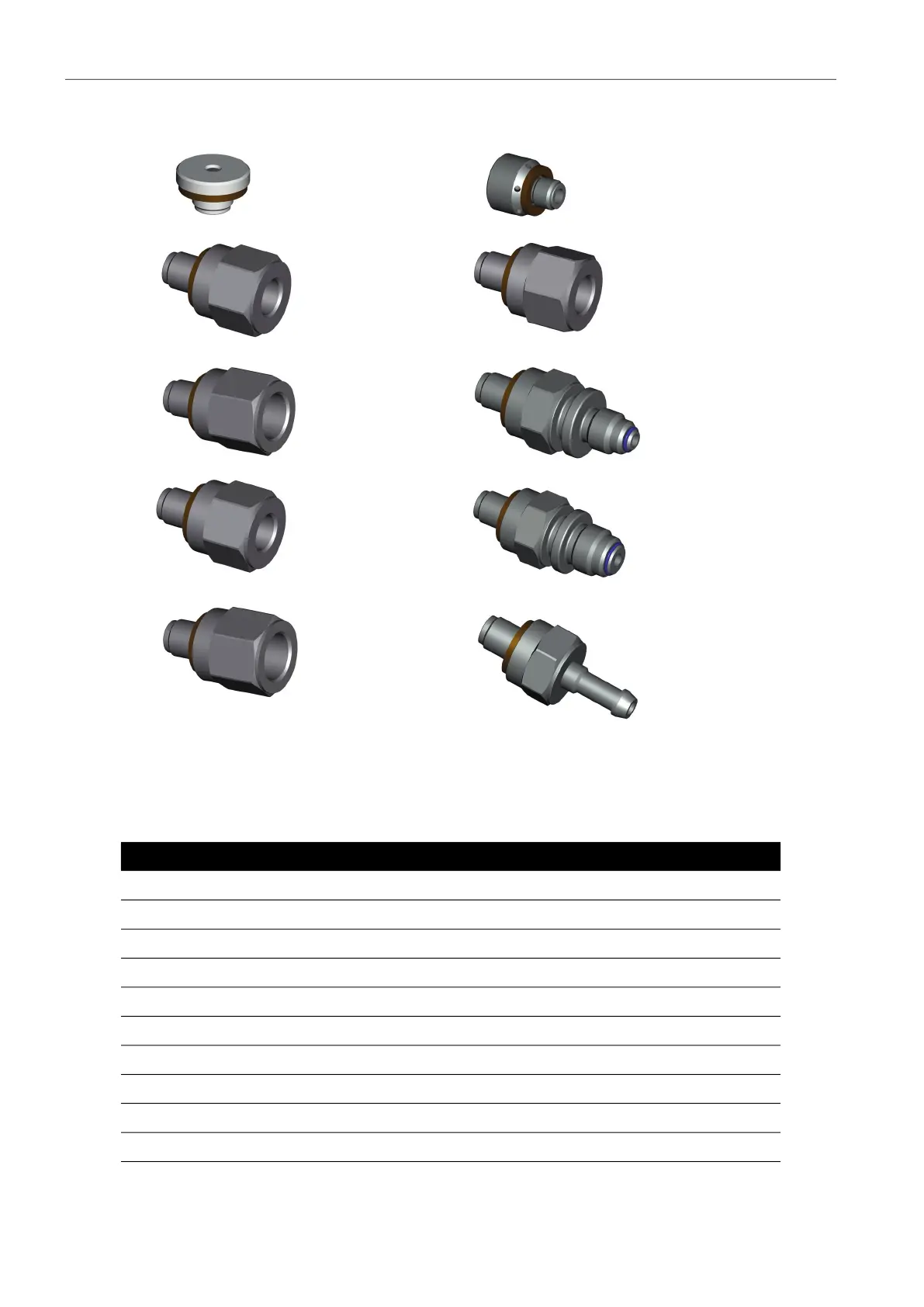

Figure 2-1 shows the available range of PACE pressure adaptors.
Figure 2-1: Pressure Adaptors
Refer to Table 2-1 and the Data Sheet for more information.
Table 2-1: Pressure Adaptor Specification
Adaptor Part Number Specification
IO-SNUBBER-1 Restrictor/Snubber
IO-DIFFUSER-1 Diffuser
IO-ADAPT-1/4NPT ISO 228 G1/8 Male to 1/4 NPT Female.
IO-ADAPT-1/8NPT ISO 228 G1/8 Male to 1/8 NPT Female.
IO-ADAPT-7/16UNF ISO 228 G1/8 Male to 7/16-20 UNF Female.
IO-ADAPT-AN4 ISO 228 G1/8 Male to AN4 37° Male.
IO-ADAPT-AN6 ISO 228 G1/8 Male to AN6 37° Male.
IO-ADAPT-BARB ISO 228 G1/8 Male to 1/4 Hose.
IO-ADAPT-G1/4 ISO 228 G1/8 Male to ISO 228 G1/4 Female.
IO-ADAPT-G1/8 ISO 228 G1/8 Male to ISO 228 G1/8 Female.
IO-SNUBBER-1
IO-DIFFUSER-1
IO-ADAPT-G1/4
IO-ADAPT-1/8NPT
IO-ADAPT-1/4NPT
IO-ADAPT-7/16UNF
IO-ADAPT-AN4
IO-ADAPT-AN6
IO-ADAPT-BARB
IO-ADAPT-G1/8
