Aeronautical Option
In dual screen mode both altitude and airspeed controllers are set to control mode, by selecting
the Enter Control key
Figure 6-4.
The Enter Measure key sets both controllers to measure mode.
Select 1 (Go to Ground) in Figure 6-4 to make both controllers go to ground.

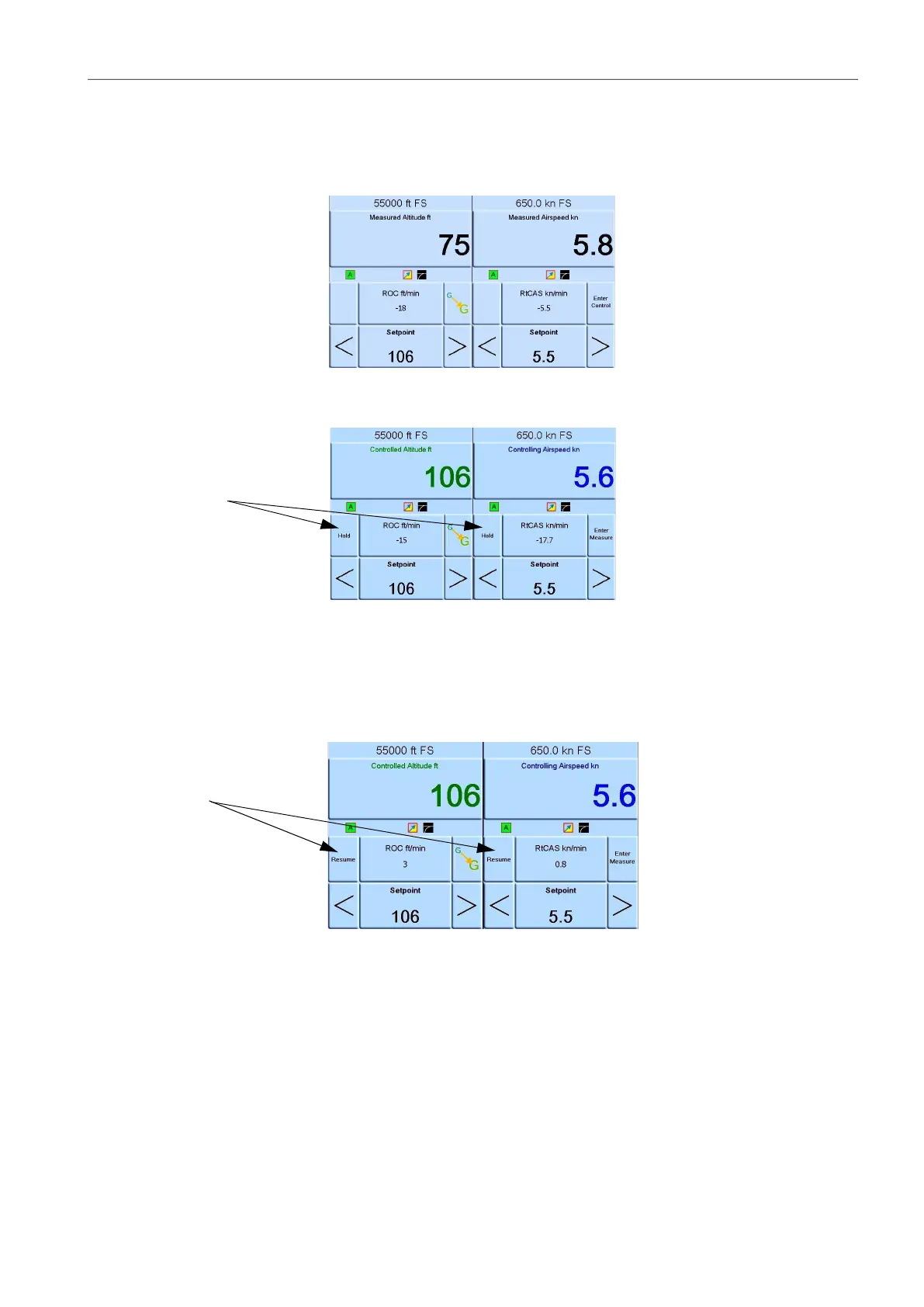

Figure 6-5: Measurement Mode
Figure 6-5 shows both controllers in measurement mode.
Figure 6-6: Control Mode
Figure 6-6 shows both controllers in control mode.
In control mode each control can have an individual set-point.
Select 1 (Hold) in Figure 6-6 to hold a set altitude or speed.
Note: The altitude and airspeed controllers are still actively ON, but held at the selected range.
Figure 6-7: Set-points
Select 1 (Resume) in Figure 6-7 to continue to the altitude and speed set-points.
