Rack-mount Option
instrument. The cooling air of the instrument must not be obstructed. Allow a free flow of air
through the equipment rack and around the instrument, especially at high ambient temperatures.

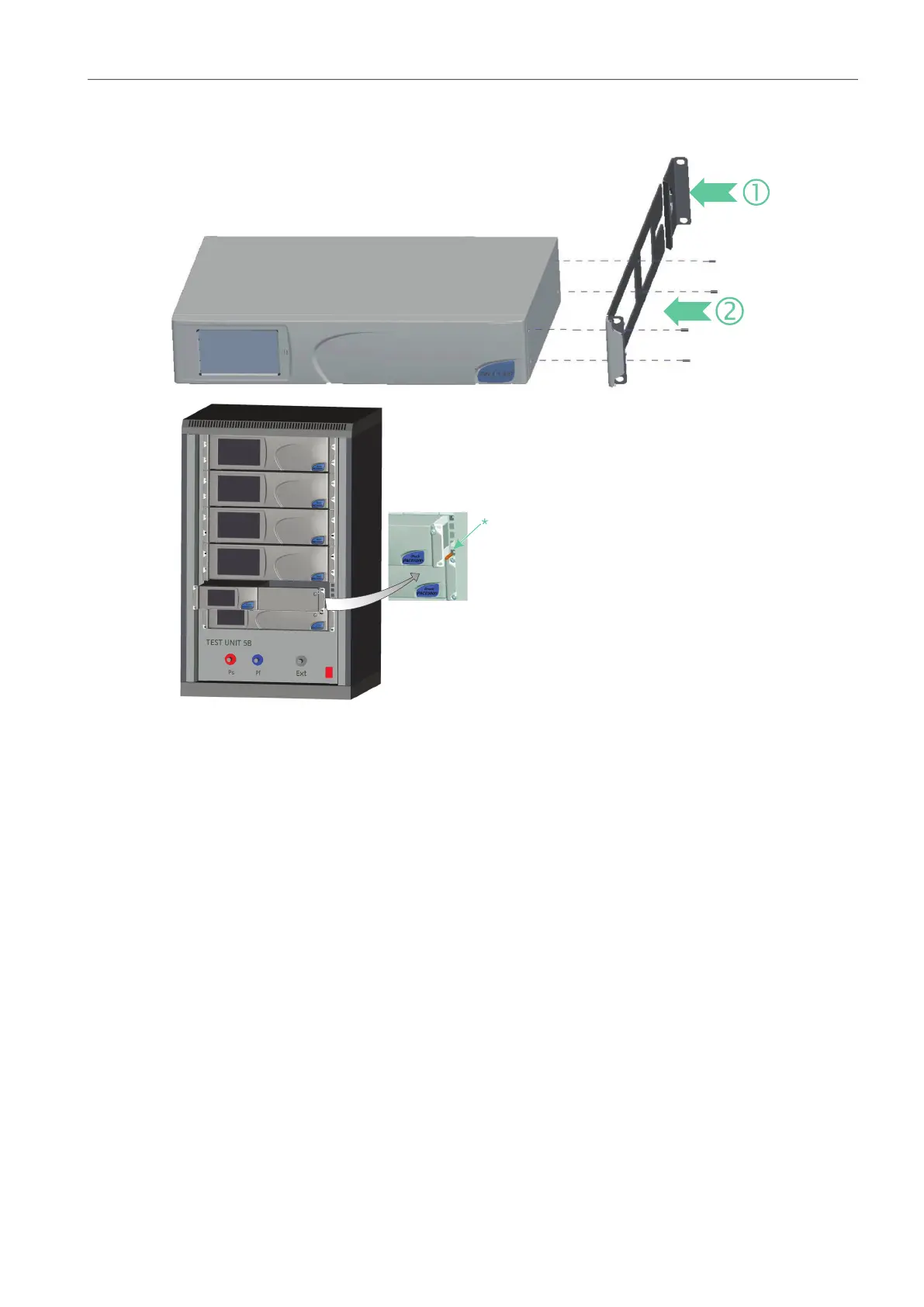

Figure 2-8: Rack-mounting
1. Locate bracket in rack assembly (1).
2. Remove the four M3x10mm countersunk screws from each of the instrument side panels.
3. Locate the two brackets (2) on each side of the instrument.
4. Secure with the four countersunk screws.
5. Support the instrument and connect the cables and pipes (tubes).
6. Refer to the electrical connections below before fitting the instrument into the rack.
7. Temporarily locate the two spigots* to each side of the equipment rack.
8. Locate and slide the instrument into the rack.
9. Locate the instrument on the spigots*.
10. Secure the instrument in the equipment rack with two of the screws and washers (supplied).
11. Remove the two spigots* and replace with the remaining two screws and washers
(supplied).
