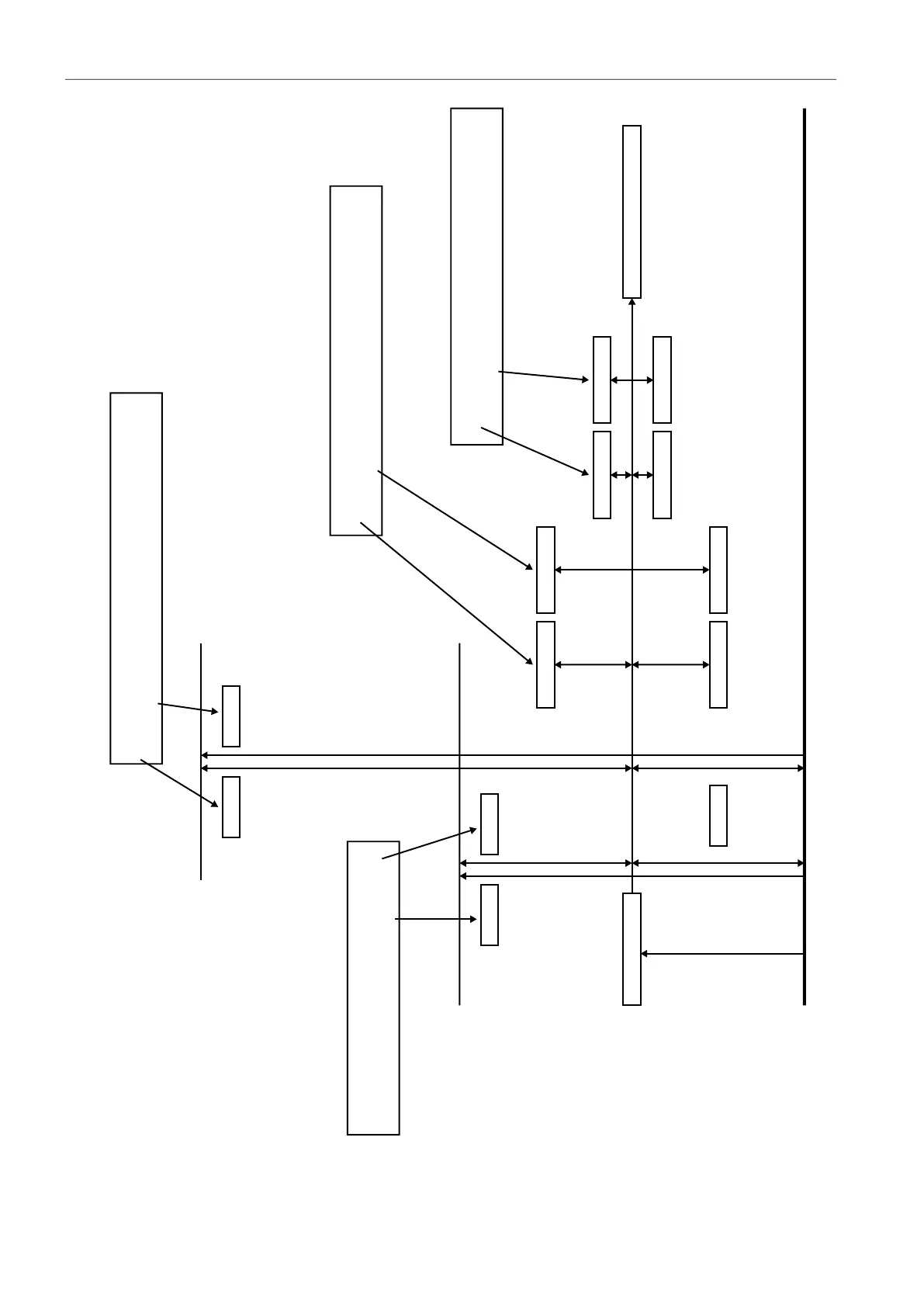

Barometric Pressure
2bar abs +1bar g
-1bar g
11bar abs
+10bar g
1350mbar abs
650mbar abs
0bar abs (Absolute Zero Pressure)
+350mbar g
-350mbar g
1070mbar abs
930mbar abs
+70mbar g
-70mbar g
Gauge reference pressure
70mbar Control Module with Barometric Option Gauge Range = ±70mbar g
Pseudo Absolute Range = 930mbar abs to 1070mbar abs
350mbar Control Module with Barometric Option Gauge Range = ±350mbar g
Pseudo Absolute Range = 650mbar abs to 1350mbar abs
10bar Control Module with Barometric Option Gauge Range = -1bar g to +10bar g
Pseudo Absolute Range = 0bar abs to 11bar abs
1bar Control Module with Barometric Option
Gauge Range = ±1bar g
Pseudo Absolute Range = 0bar abs to 2bar abs
