3.3 Removing the covers
For many types of adjustment work, you will have to remove the machine
covers first in order to access the components.
This chapter describes how to remove and then assemble the individual
covers again. The text for each type of adjustment work then specifies only
the cover that needs to be removed at that particular time.
3.3.1 Access to the underside of the machine
Cover
To access the components on the underside of the machine, you must tilt
the machine head.

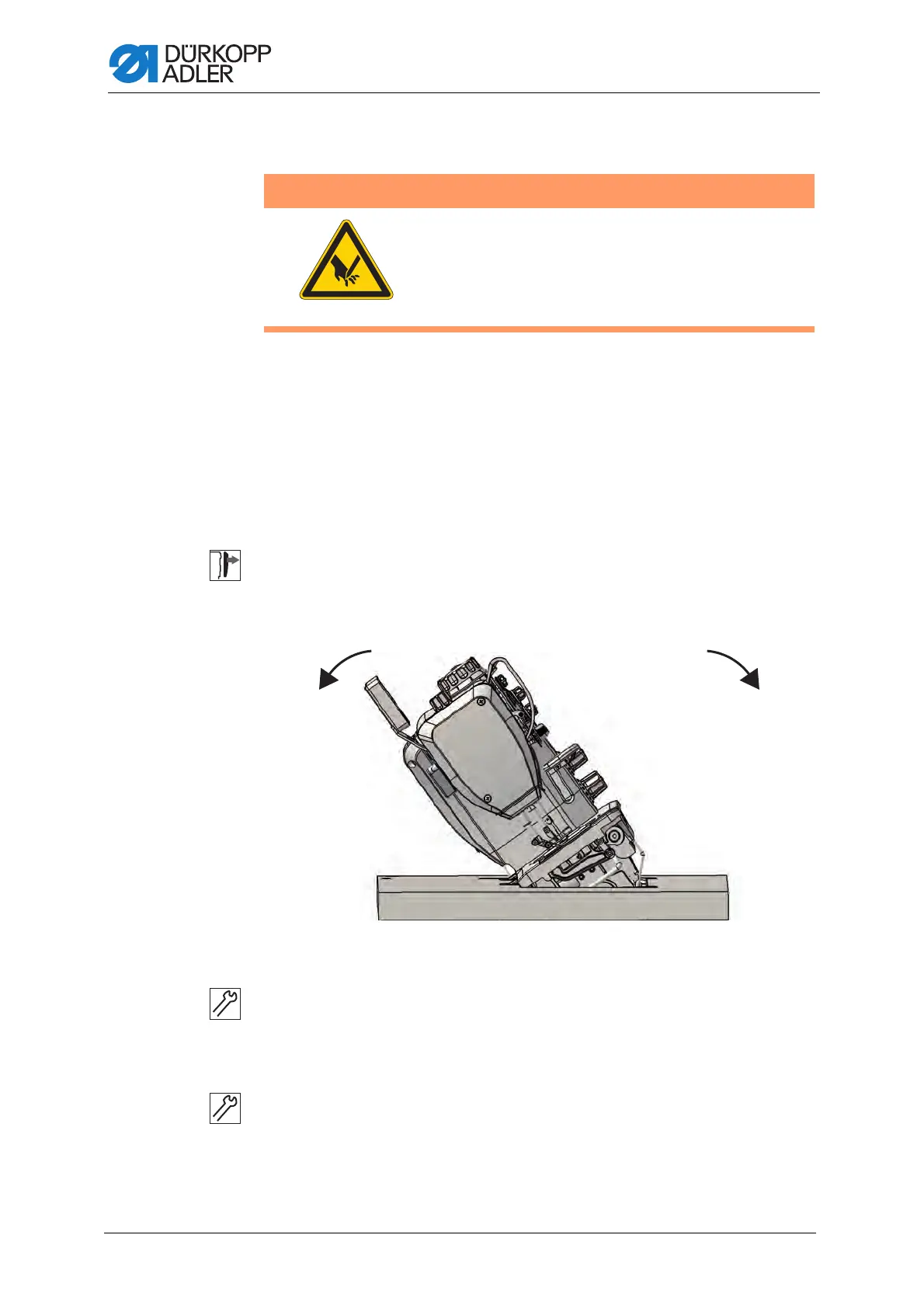

Fig. 1: Access to the underside of the machine
Tilting the machine head
To tilt the machine head:
1. Tilt the machine head as far as it will go.
Erecting the machine head
To erect the machine head:
1. Erect the machine head.
WARNING
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before removing or
assembling covers.
