15.5 Adjusting the fabric deflector
Proper setting
The fabric deflector keeps the sewing material from entering into the slot.
The fabric deflector abuts closely on the carrier roller, leaving just enough
space for the carrier roller to move freely.
Important
If using a steel carrier roller, you need to make sure to remove the fabric
deflector.

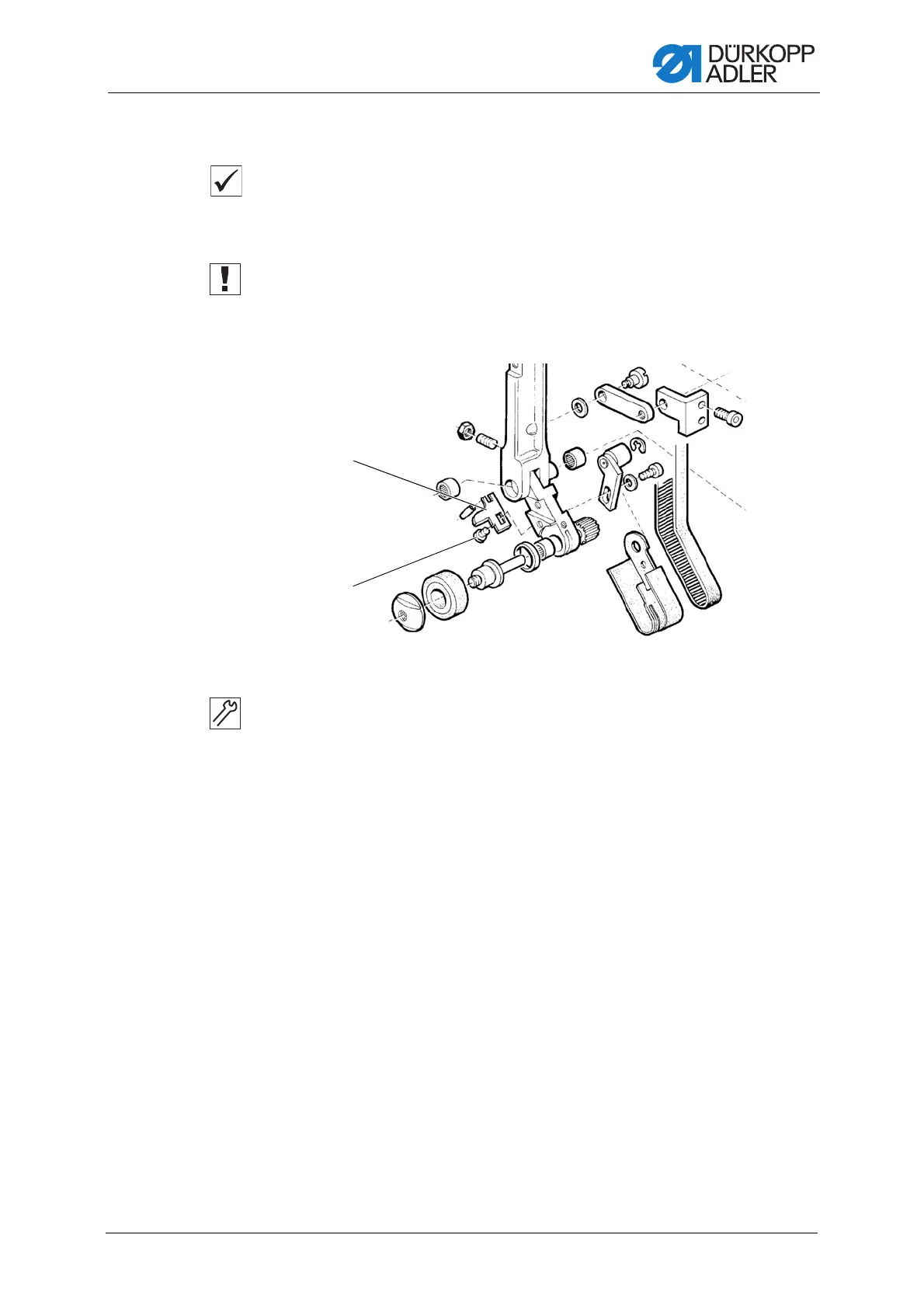

Fig. 52: Adjusting the fabric deflector
To adjust the fabric deflector:
1. Loosen the screw (2).
2. Adjust the fabric deflector (1).
The fabric deflector abuts closely on the carrier roller, leaving just
enough space for the carrier roller to move freely.
3. Tighten the screw (2).
(1) - Fabric deflector (2) - Screw
