Winder
Service Instructions 827/827-M - 01.0 - 05/2019 55
13 Winder
13.1 Adjusting the winder
Adjusting the winder filling quantity

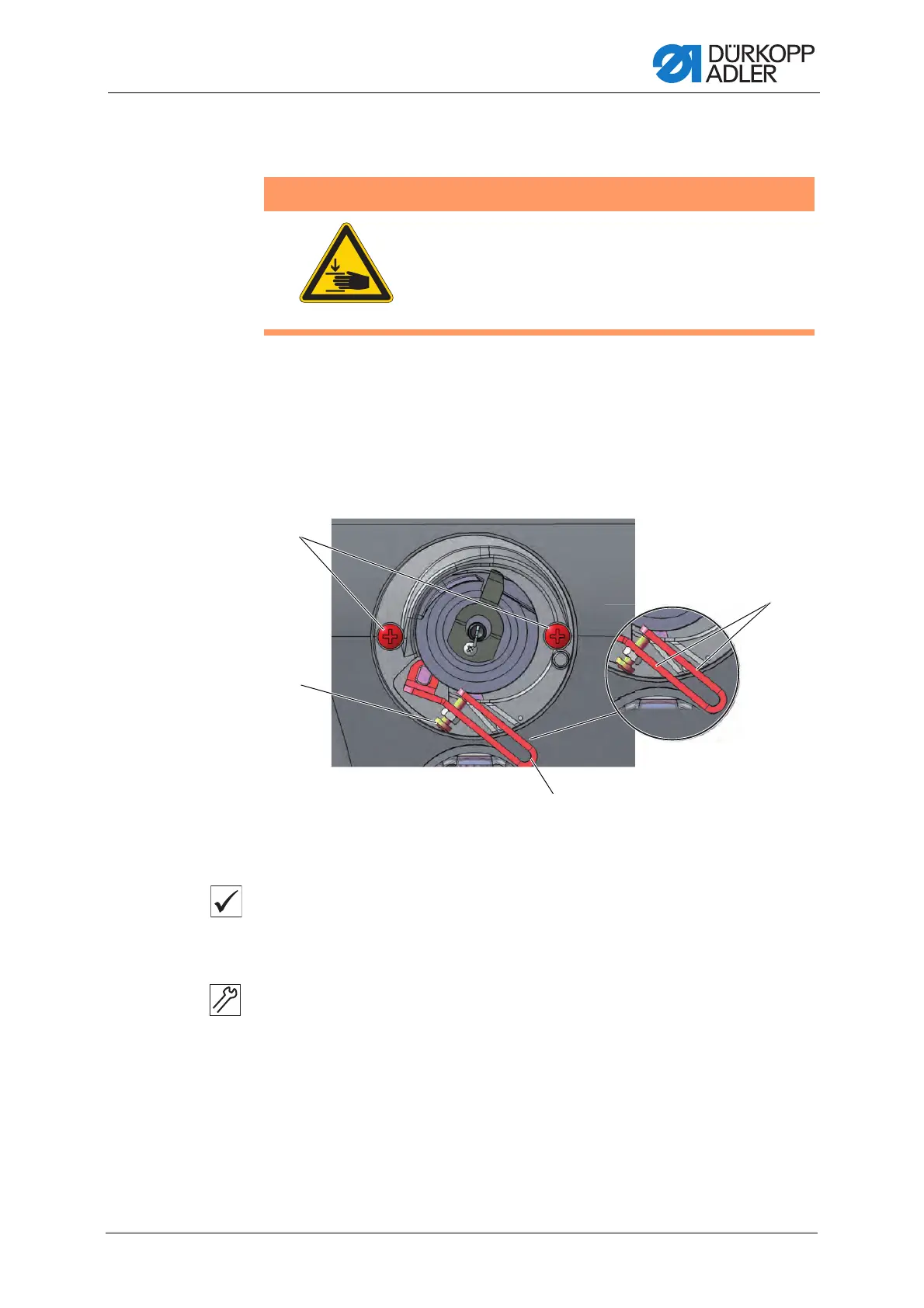

Fig. 38: Adjusting the winder filling quantity
Proper setting
The winder wheel runs smoothly and without axial play.
The winding process will stop automatically when the required filling
quantity of the bobbin is reached.
To adjust the winder filling quantity:
1. Disassemble the arm cover ( p. 15).
2. Loosen the screws (1).
3. Remove the winder.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before adjusting the winder.
(1) - Screws
(2) - Screw
(3) - Winder lever
(4) - Shank
