To disassemble the stator:
1. Loosen the screws (2).
2. Remove the cover plate (3).
3. Remove the stator with ring (1).
18.2.5 Disassembling the rotor

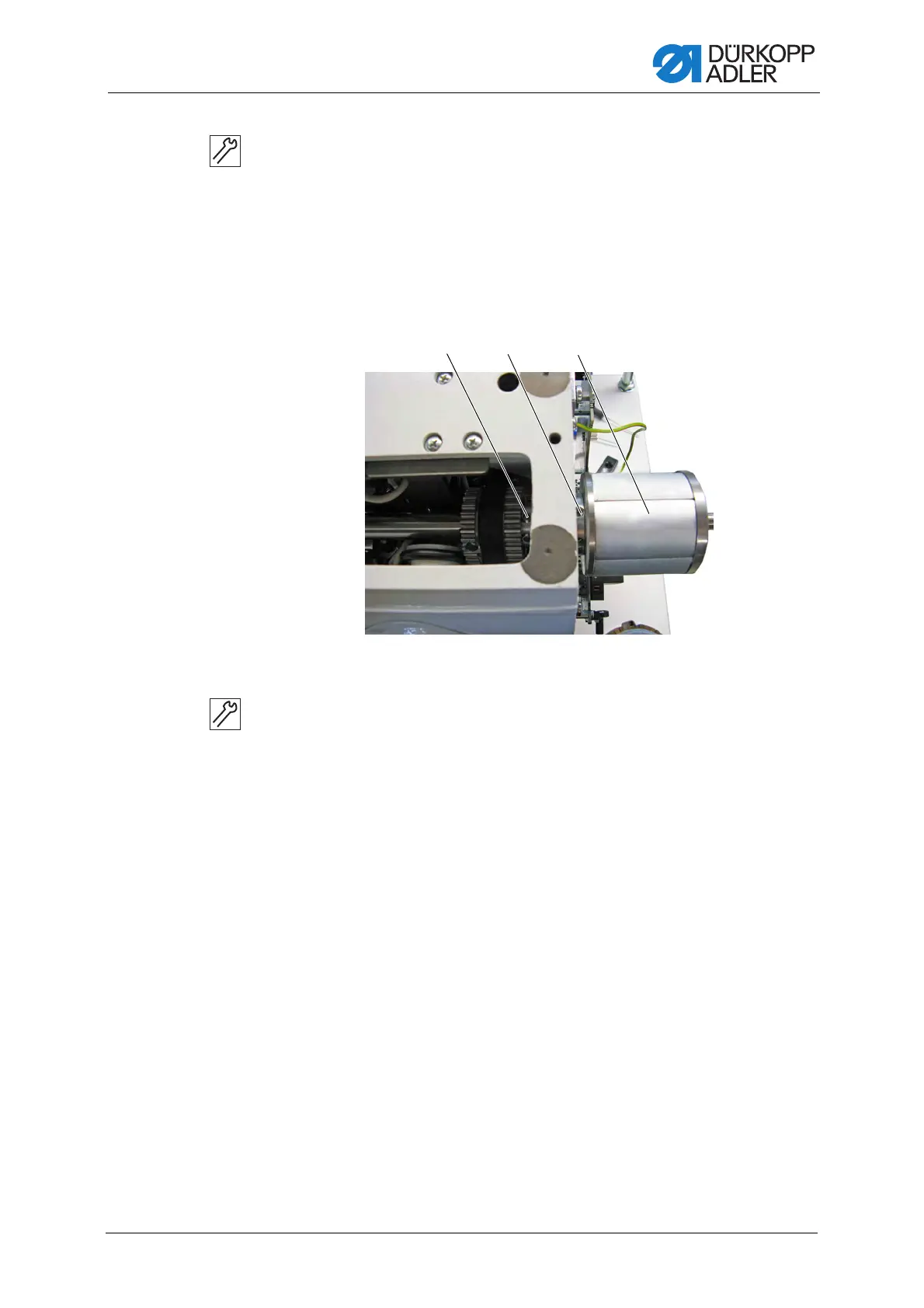

Fig. 64: Disassembling the rotor
To disassemble the rotor:
1. Remove the arm cover ( p. 15).
2. Loosen the threaded pins (1), (2).
3. Remove the rotor with deep groove ball bearing (3).
(1) - Threaded pins
(2) - Threaded pins
(3) - Rotor with deep groove ball bearing
①② ③
