Positioning the arm shaft
26 Service Instructions 827/827-M - 01.0 - 05/2019
5 Positioning the arm shaft

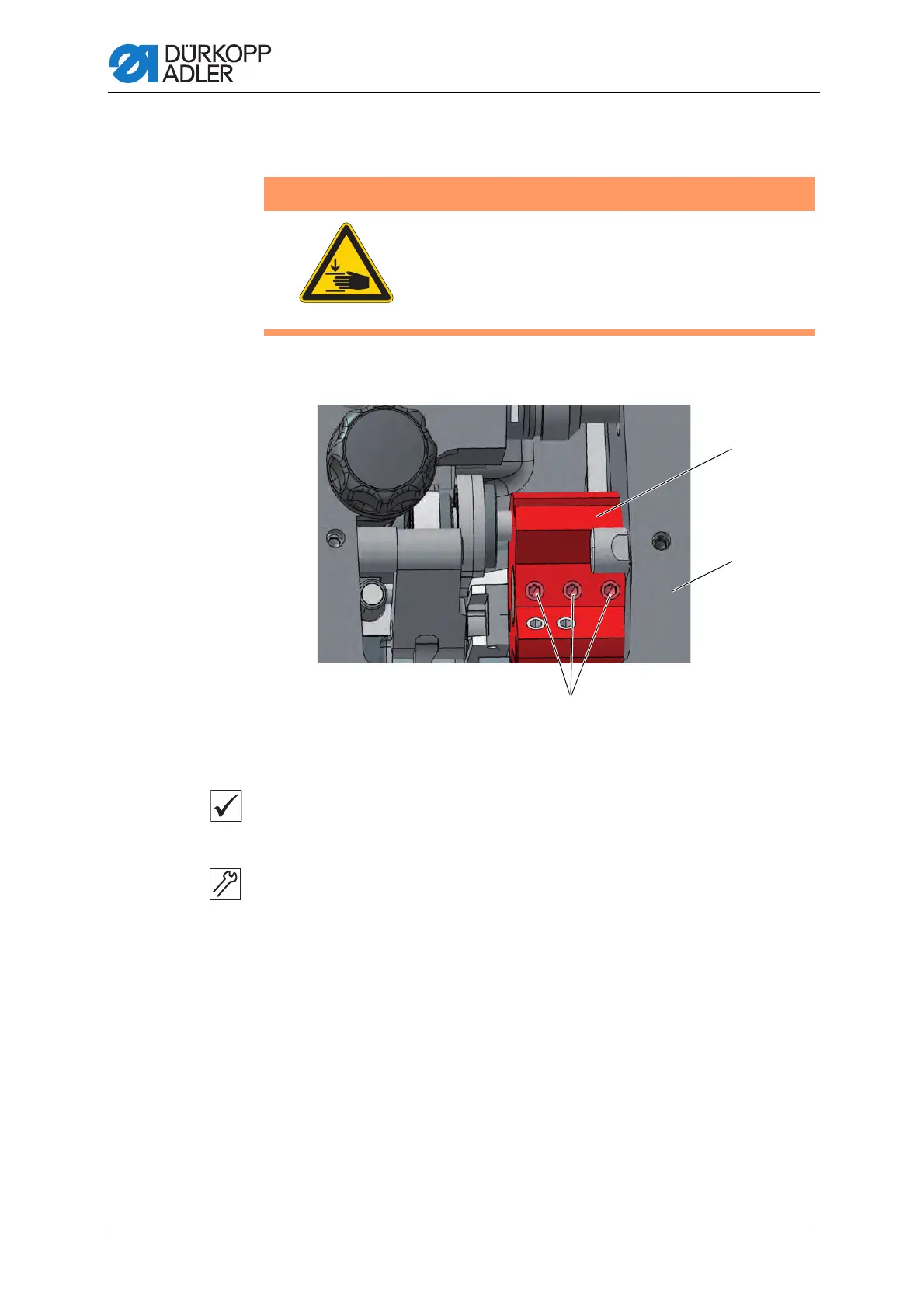

Fig. 12: Positioning the arm shaft
Proper setting
The 3 threaded pins (1) on the arm shaft crank (3) are seated completely
on the flat. The arm shaft crank (3) is flush with the machine casting (2)
To position the arm shaft:
1. Disassemble the arm cover ( p. 17).
2. Loosen the threaded pins (1).
3. Turn the arm shaft crank (3) such that the threaded pins (1) are seated
completely on the flat of the arm shaft.
4. Push the arm shaft with the arm shaft crank (3) to the right as far as it
will go and flush with the machine casting.
5. Tighten the threaded pins (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you check and set
the position of the arm shaft crank.
(1) - Threaded pins
(2) - Machine casting
(3) - Arm shaft crank
