Integrated motor
80 Service Instructions 827/827-M - 01.0 - 05/2019
18.2.3 Disassembling the encoder

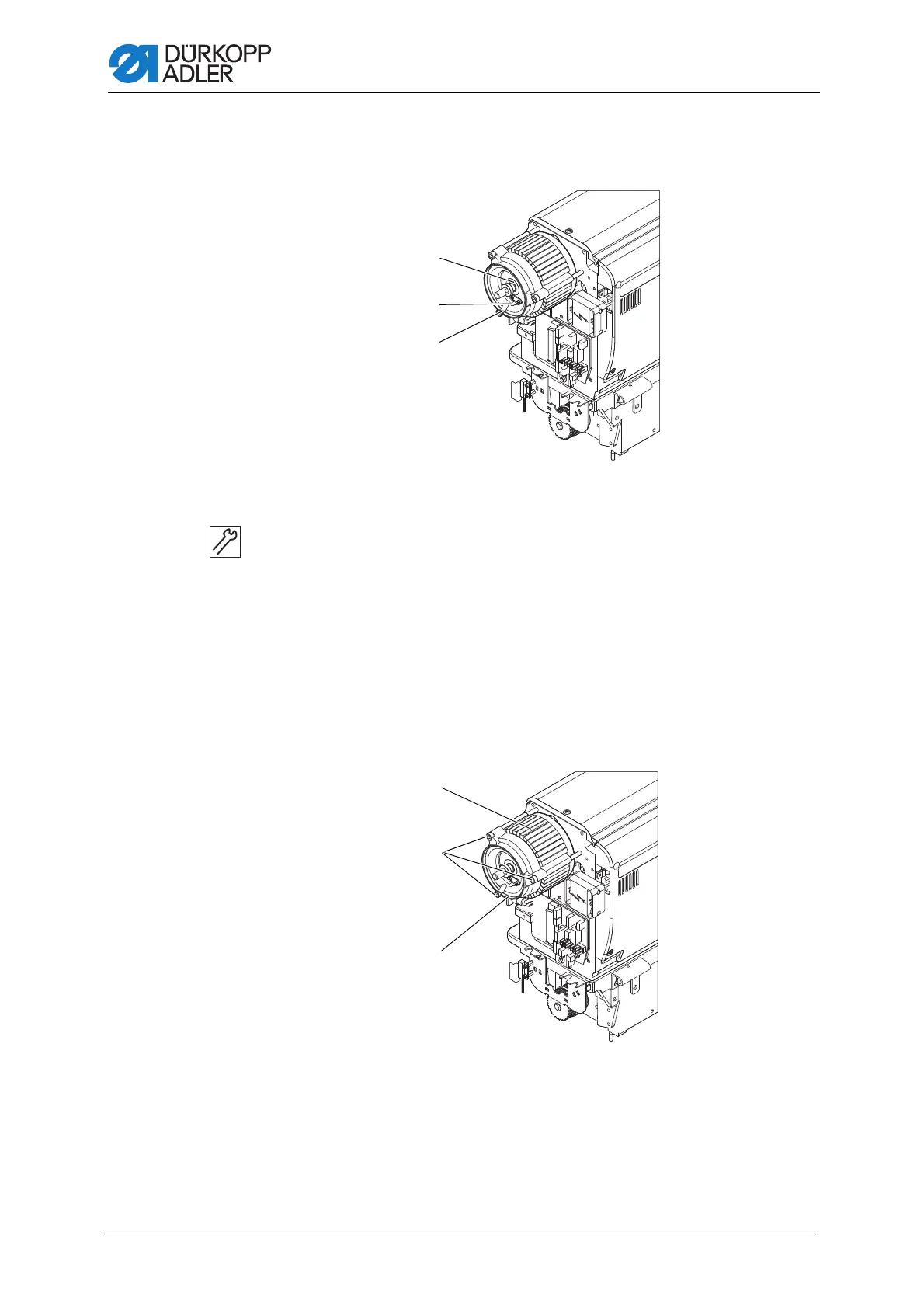

Fig. 62: Disassembling the encoder
To disassemble the encoder:
1. Unscrew the retaining plate (3).
2. Loosen both screws on the encoder (2).
3. Undo the screw on the encoder disk (1).
4. Carefully and uniformly pull the encoder (2) and encoder disk (1)
away from the shaft.
18.2.4 Disassembling the stator
Fig. 63: Disassembling the stator
(1) - Encoder disk
(2) - Encoder
(3) - Retaining plate
(1) - Stator with ring
(2) - Screws
(3) - Cover plate
