Working basis
Service Instructions 827/827-M - 01.0 - 05/2019 15
3.3.2 Disassembling and assembling the arm cover

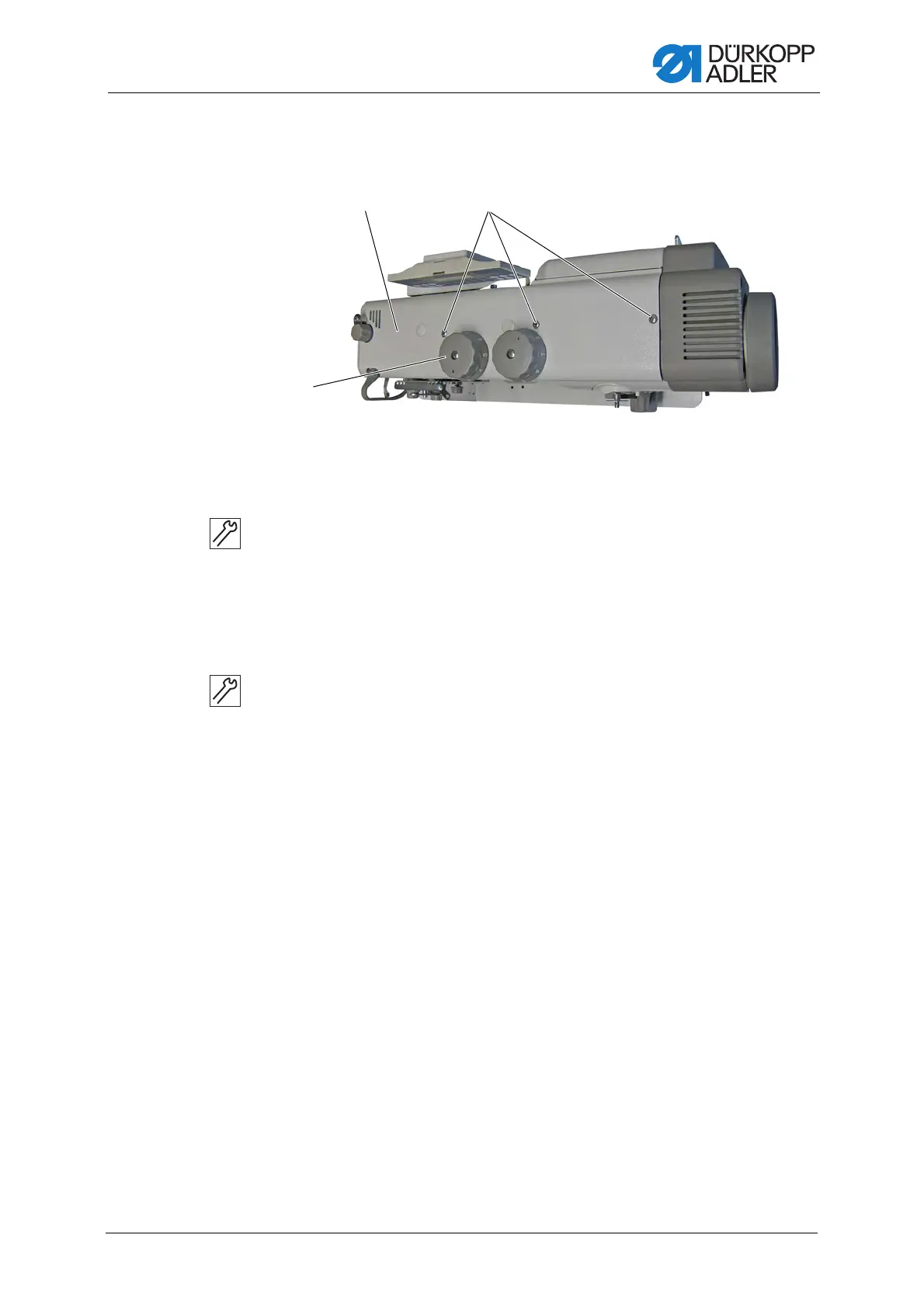

Fig. 2: Disassembling and assembling the arm cover
Disassembling the arm cover
To remove the arm cover:
1. Turn the adjusting wheel for the sewing foot stroke (3) to 2.
2. Loosen the screws (1).
3. Disassemble the arm cover (2).
Assembling the arm cover
To assemble the arm cover:
1. Turn the adjusting wheel for the sewing foot stroke to 2.
2. Assemble the arm cover (2).
3. Tighten the screws (1).
(1) - Screws
(2) - Arm cover
(3) - Sewing foot stroke adjusting wheel
③
①②
