Integrated motor
Service Instructions 827/827-M - 01.0 - 05/2019 79
18.2 Disassembling the drive
18.2.1 Disassembling the handwheel and handwheel flange

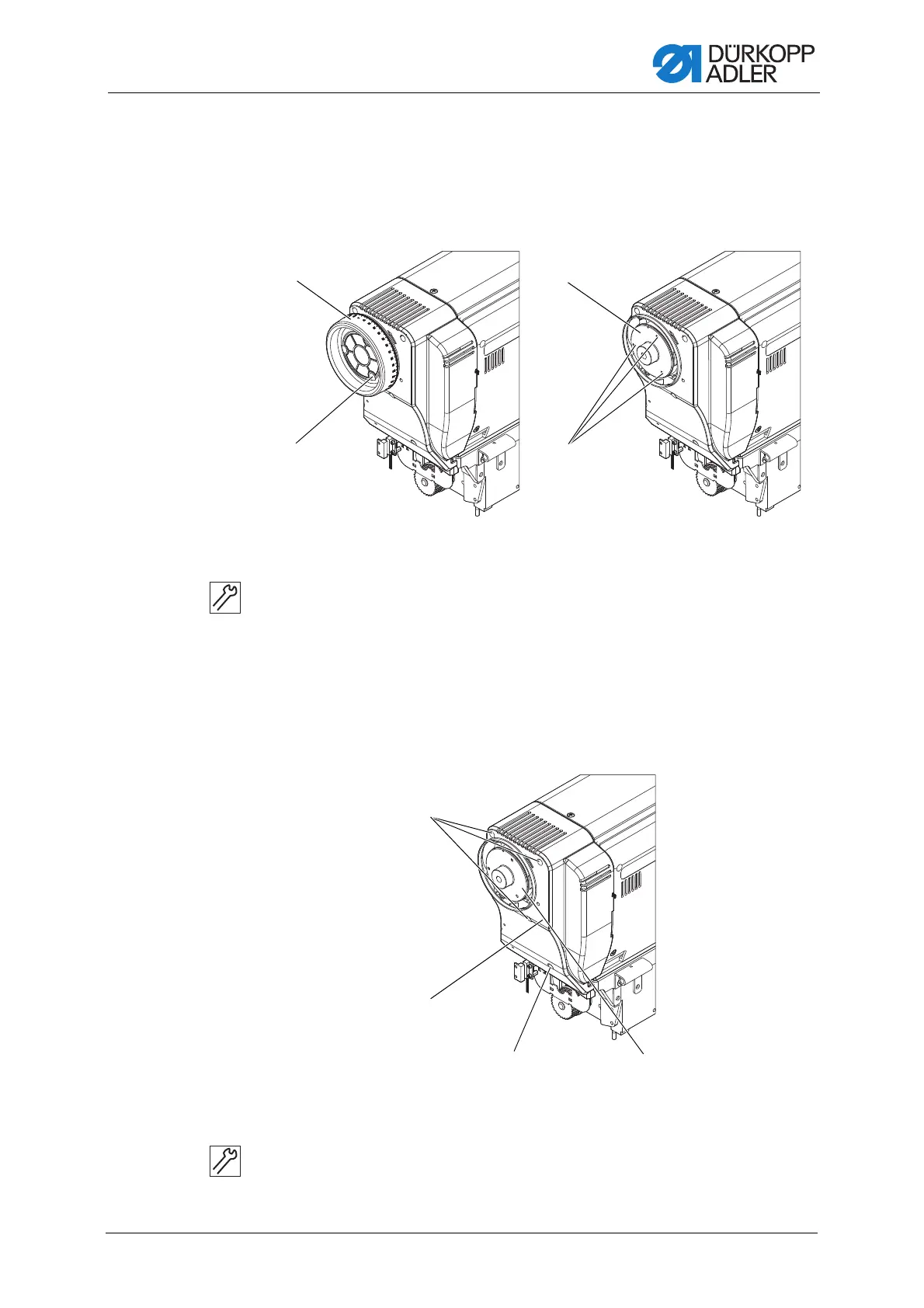

Fig. 60: Disassembling the handwheel and handwheel flange
To disassemble the handwheel and handwheel flange:
1. Loosen all 3 screws (2) on the handwheel (1).
2. Loosen all threaded pins (3) and disassemble the handwheel
flange (4).
18.2.2 Disassembling the cover
Fig. 61: Disassembling the cover
To disassemble the cover:
1. Loosen all 5 screws (1).
2. Disassemble the cover (2) from the side.
(1) - Handwheel
(2) - Screws
(3) - Threaded pins
(4) - Handwheel flange
(1) - Screws
(2) - Cover
(3) - Handwheel flange
