18.3 Assembling the drive
18.3.1 Assembling the rotor

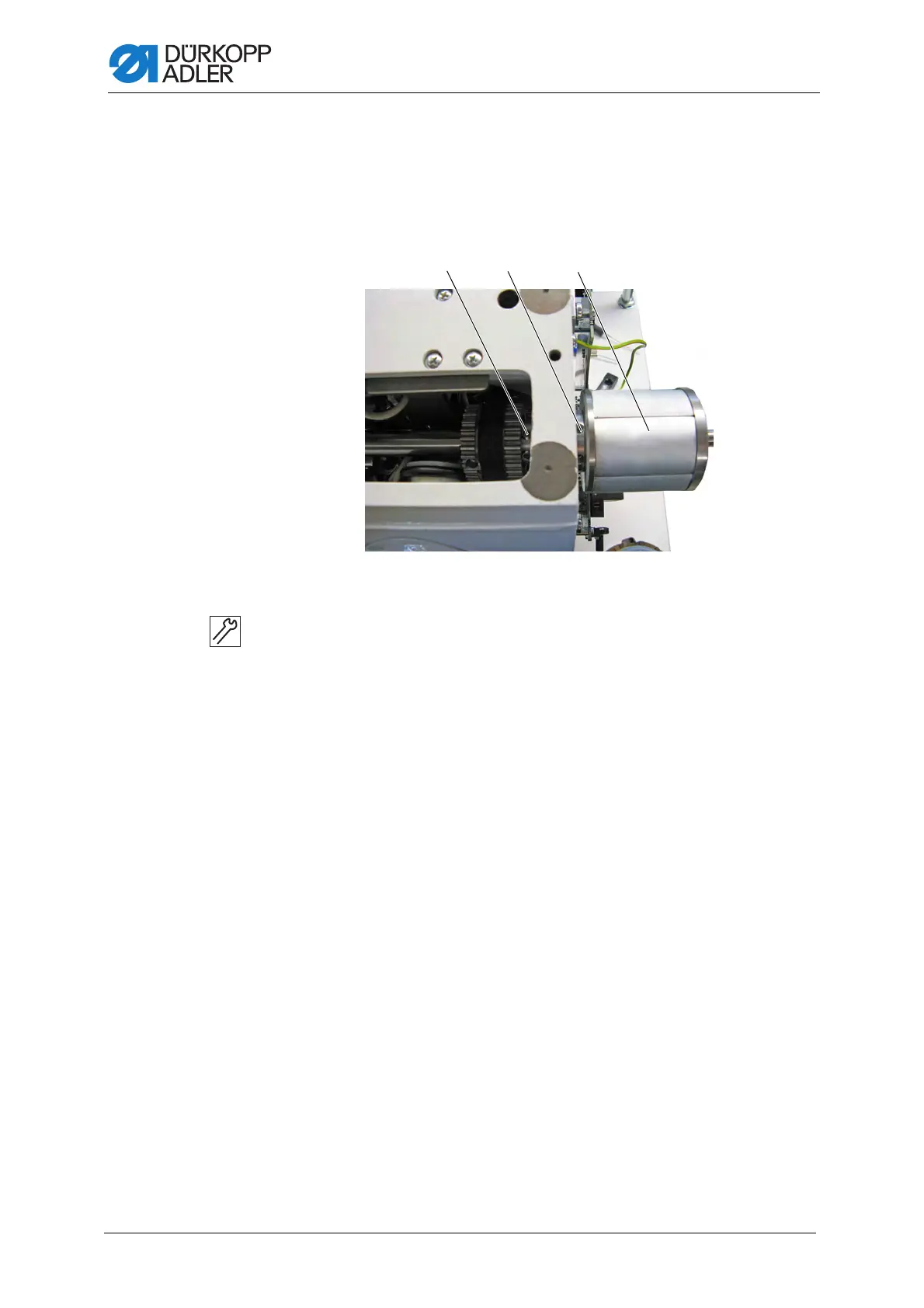

Fig. 65: Assembling the rotor
To assemble the rotor:
1. Push the rotor with deep groove ball bearing (3) onto the shaft until
the deep groove ball bearing is resting against the stop.
2. Tighten all threaded pins (1), (2) firmly in place, observing the surface
of the shaft in doing so: Tighten the first screw in the direction of rotation
firmly in place on the surface.
(1) - Threaded pins
(2) - Threaded pins
(3) - Rotor with deep groove ball bearing
