DURKOPP ADLER 827 Service Instructions

Puller
Service Instructions 827/827-M - 01.0 - 05/2019 73
15.7 Changing the carrier roller
Important
When exchanging a Vulkollan carrier roller for a steel carrier roller, you need
to readjust the lower end position of the carrier roller stroke ( p. 70).
If using a steel carrier roller, you need to make sure to remove the fabric
deflector.

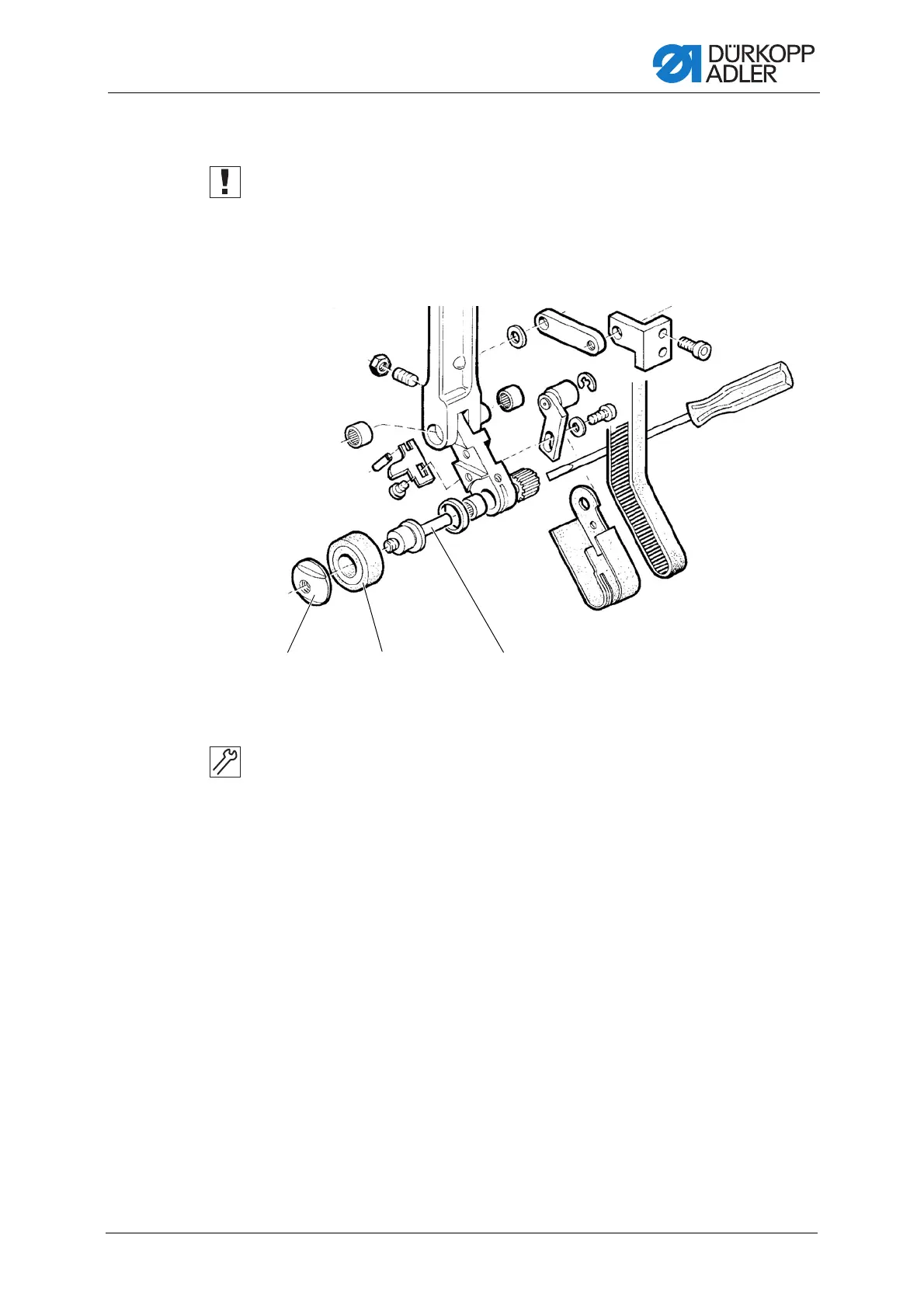

Fig. 54: Changing the carrier roller
To change the carrier roller:
1. Remove the nut (1).
CAUTION: Left-handed thread!
2. Lock the axle (3) with a screw driver.
3. Change the carrier roller (2).
4. Insert the nut (1) and tighten.
(1) - Nut
(2) - Carrier roller
(3) - Axle
①② ③
